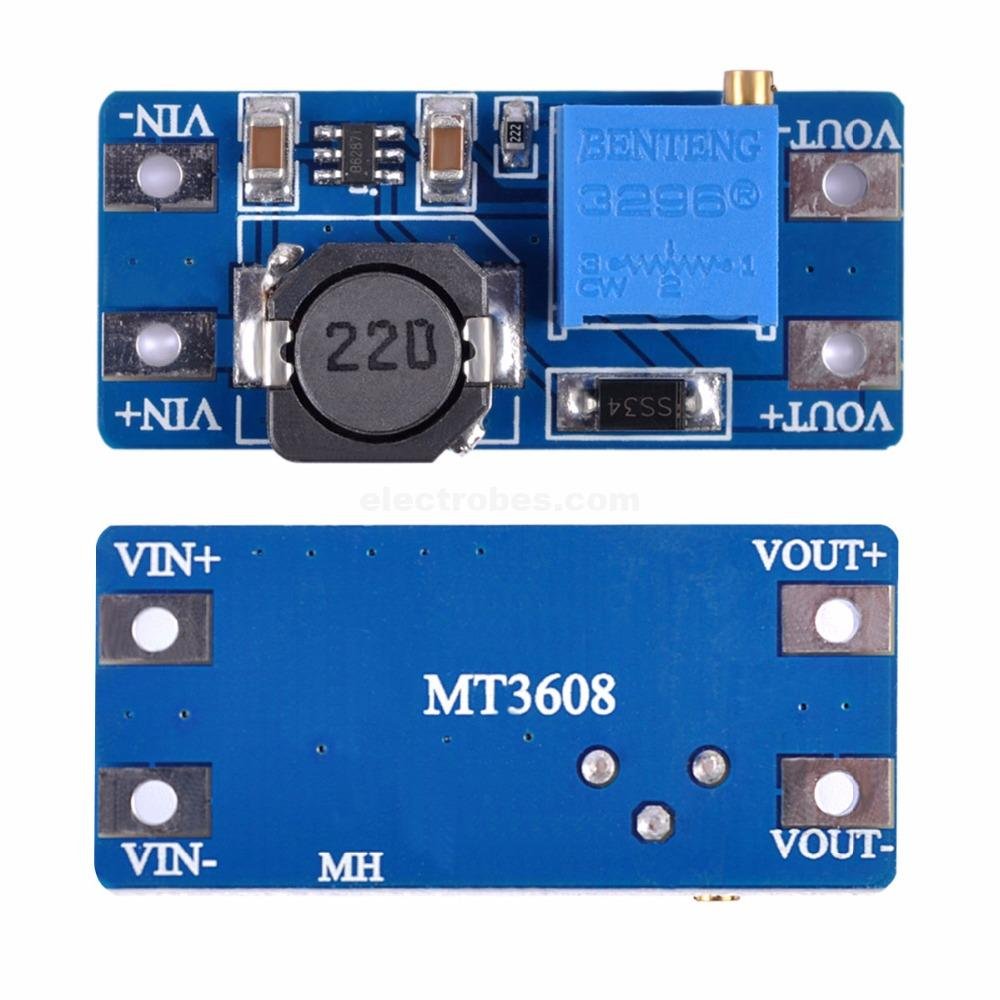

MT3608 DC-DC 2A Adjustable Boost Power Supply Converter Step Up Module 2-24v
MT3608 is DC-DC 2A Adjustable Boost Power Supply Converter Step Up Arduino Based Module 2-24v. Buy online in Pakistan at Electrobes.
In stock
₨ 120
In stock
MT3608 DC-DC 2A Adjustable Boost Power Supply Converter Step Up Module 2-24v DC
This is a great DC to DC step-up converter module for electric equipment, digital products, etc. The boost converter can convert 2V~24V DC to maximum 28V DC, output voltage is adjustable with potentiometer. The maximum output current can be up to 2A. High efficiency, the conversion efficiency can be more than 93%. Widely used for storage battery, power transformers, DIY adjustable regulated power supply, industrial equipment, 5V, 9V, 12V, 28V output, etc.
Features:
- It’s efficient
- It can source a good amount of current
- It’s inexpensive
- It’s simple to adjust to get your desired increase in voltage
Specifications:
- Input Voltage: 2V~24V
- Max. Output Voltage: 28V Max.
- Output Current: 2A
- Efficiency: >93%

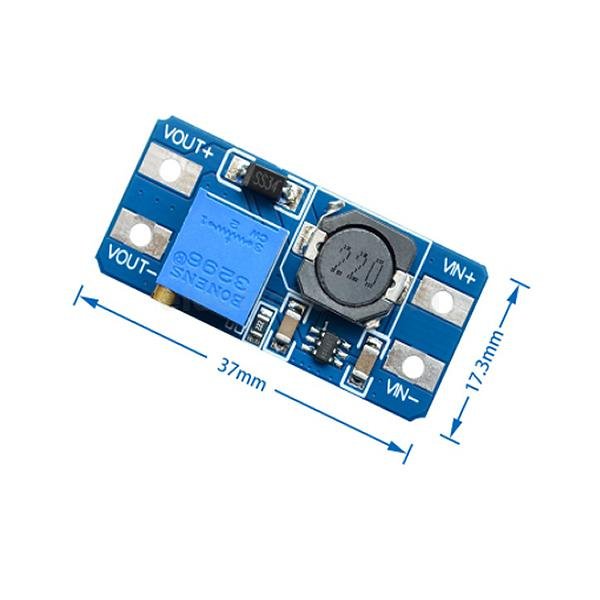

- Size: 37x17x5mm (LxWxH)
Packing list:
- 1x MT3608 DC-DC Step Up Converter Booster 2A Power Supply Module
- 2V to 24V input voltage with output boost 5V to 28V adjustable
- Maximum output current: 2A (Recommended up to 1A only)
- Input voltage: 2V ~ 24V
- Maximum output voltage: 5V ~ 28V (Recommend to use up to 26V only)
- Efficiency: ~93%

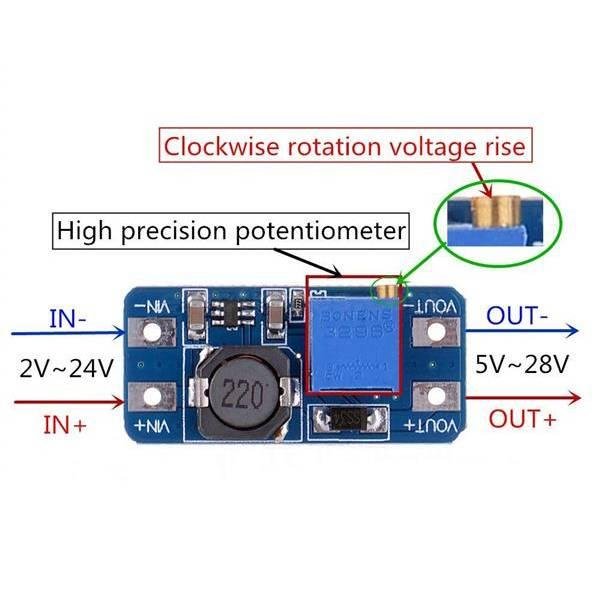

- On board preset: Adjust Output Voltage ( Multi Turns 20 Turns)
- Input voltage should not exceed the maximum input voltage
- Peak current output current should not more than 2A
- Output voltage should always be higher than Input voltage
- PCB Size: 30 mm * 17 mm * 14 mm
