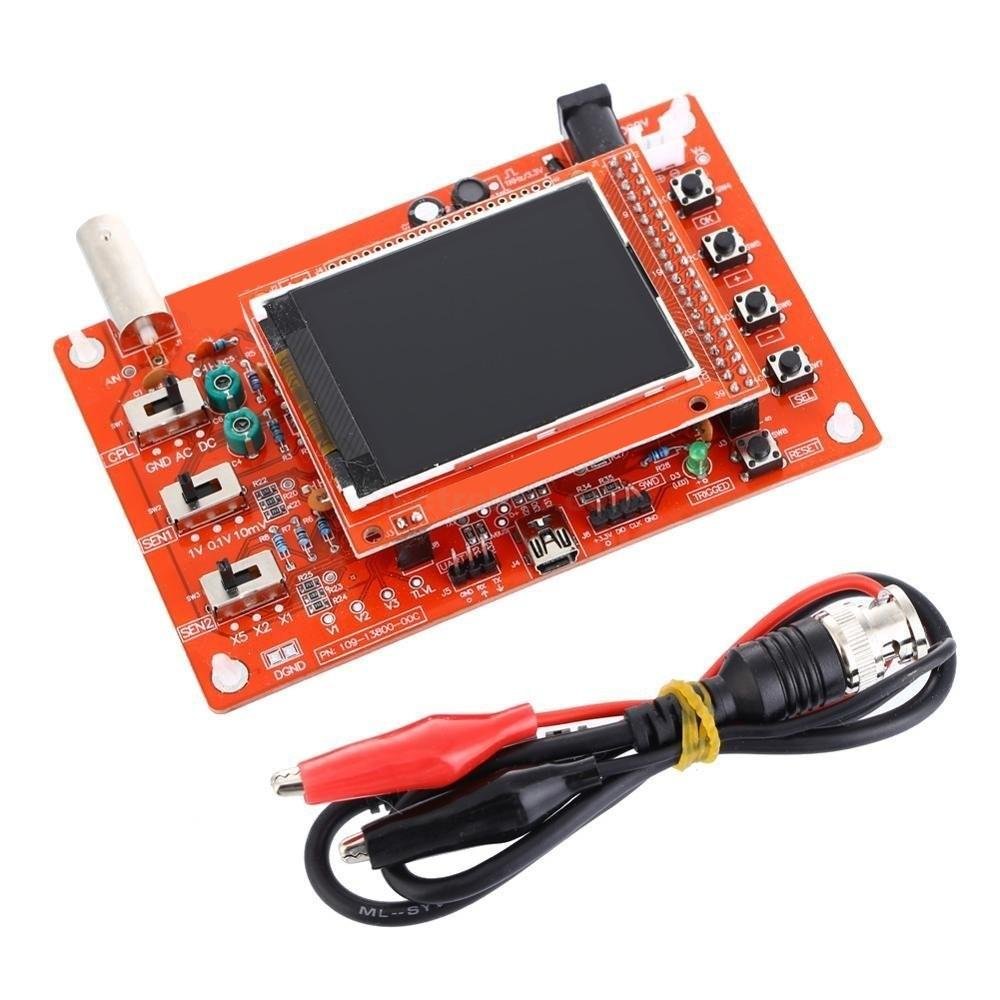

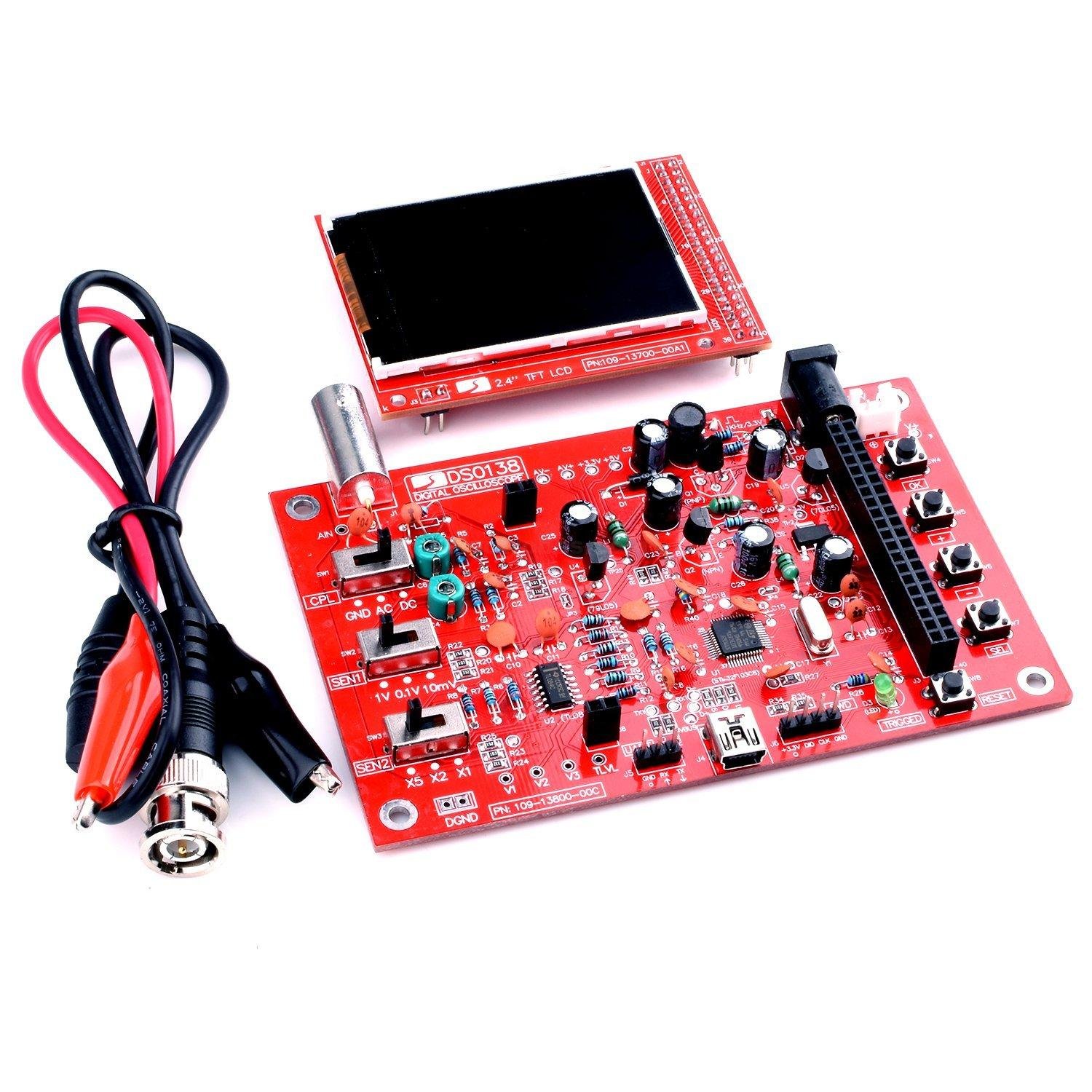

DSO138 Digital Mini Oscilloscope Module Fully Assembled

DSO138 oscilloscope production suite features:

• Training for electronic production , complete detailed descriptive information , like schematics , instructions, etc., making a high success rate .
• Component species diversity for students to identify elements , inline elements welding, soldering SMD components training.
• Students can get in at the same time making a practical tool for audio, video synchronization , low-frequency switching power supply , infrared receiver transmitter signal waveform and many other occasions, effectively observed and measured , increased interest in learning, improve learning outcomes .
• Kits using ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4 -inch color TFT display can be used as test ARM development board .
• Available source , the ability of a friend can be secondary development kit based on , for example, it can be changed to Millivoltmeter , data loggers , and so on .
• Circuit is simple , reliable , inexpensive

Description:

• PCB size: 117 x 76mm
• Screen size: 52 x 40mm
• Supply voltage: DC 9V

Characteristics of indicators:

• Maximum real-time sampling rate: 1Msps
• Accuracy: 12Bit
• Sampling buffer depth: 1024 bytes
• Analog bandwidth: 0 – 200KHz
• Vertical Sensitivity: 10mV / Div – 5V / Div (1-2-5 progressive manner)
• Adjustable vertical displacement, and with instructions
• Input impedance: 1MΩ
• Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
• Coupling modes: DC / AC / GND
• The horizontal time base range: 10μs / Div – 50s / Div (1-2-5 progressive manner)
• With automatic, regular and one-shot mode, easy to capture the moment waveform
• Available rising or falling edge trigger
• Adjustable trigger level position, and with instructions
• Observable previous trigger waveform (negative delay)
• Can freeze at any time waveform display (HOLD function)
• Comes 1Hz /3.3V square wave test signal source

Package includes:

• 1 * DSO138 Oscilloscope Kit
• 1 * Probe
• 3 * User Manual(English)
• 4 * Foot
