ELEGOO Jupiter SE 12.8-inch 6K Monochrome LCD Resin 3D Printer

  • 12.8-Inch 6K Mono LCD, 51um XY resolution
  • Build volume of 277.848 x 156.264 x 300 mm³
  • Automatic resin feeding and recycling
  • With a 4-point leveling system
  • Upgraded USB Air Purifier
Compare
Availability:

Available on backorder

 420,000

Available on backorder

Estimated Delivery Time: 20-25 days

ELEGOO Jupiter SE Resin 3D Printer, Large MSLA 3D Printer with 12.8-inch 6K Monochrome LCD, Printing Size of 10.94 x 6.15 x11.81 Inch

Features:

  • [12.8-Inch 6K Mono LCD] Jupiter SE comes with a 12.8-inch 6K monochrome LCD, boasting a resolution of 5448×3064 and 51-micron XY resolution, which ensures that every intricate detail of your designs is accurately captured, resulting in stunningly precise prints.
  • [Spacious Build Volume] With a build volume of 277.848 x 156.264 x 300 mm³/10.94×6.15×11.81 inches, this provides you ample space for more ambitious projects. You can print larger models or multiple parts in a single batch, making it ideal for professional or commercial use.
  • [Automatic Resin Feeding and Recycling] Jupiter SE is designed with an automatic resin feeding and recycling device that ensures a continuous supply of resin during the printing process. Automatic resin recycling ensures that the unused resin is collected and recycled for future use, reducing waste and saving you money.
  • [Efficient Cooling System] There are cooling fans and heat-conducting copper tubes on both sides of the COB light source for efficient heat dissipation, maintaining a stable temperature during the printing process to extend the service life of the printer.
  • [User-friendly Design] The build plate comes with a 4-point leveling system and laser-carved surface, which provides excellent adhesion during printing and no need to repeat leveling after leveling once. The rotary handle makes it easy to install and remove the build plate.
  • [Upgraded Carbon Filter] The printer comes with a built-in activated carbon filter and plastic protective case that filters out harmful resin odor during printing for a cleaner printing environment.

What’s in the box

  • Jupiter SE Resin 3D Printer
  • Build Platform, Resin Tank, U Disk, Funnel
  • Backup Screws, Adapter, Tool Kit, Scraper
  • User Manual, Auto Resin Feeding Main Module
  • Cover Handle*2, Bottle Cap Module*2

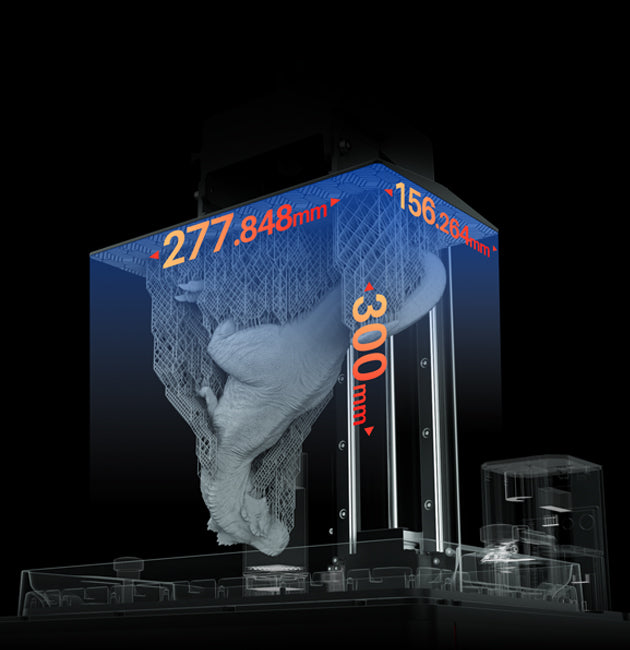

Spacious Space for Your Projects

With a build volume of 277.848 x 156.264 x 300 mm³/10.94×6.15×11.81 inches, this provides you ample space for more ambitious projects.

You can print larger models or multiple parts in a single batch, making it ideal for professional or commercial use.

Automated Resin Management System

Jupiter SE is designed with an automatic resin feeding and recycling device that ensures a continuous supply of resin during the printing process.

Automatic resin recycling ensures that the unused resin is collected and recycled for future use, reducing waste and saving you money.

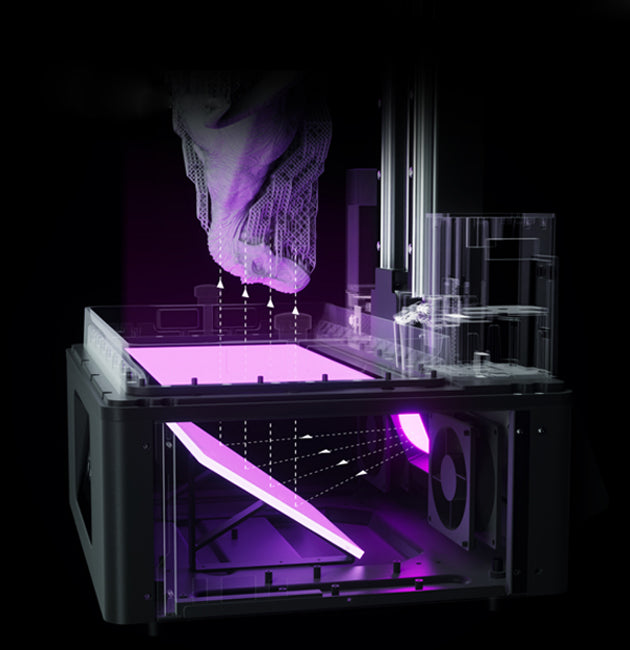

COB +Refractive Light Source

The printer adopts a COB+refractive light source that reduces light dispersion and provides uniform and consistent light exposure, resulting in sharper details, smoother final prints, and accurate dimensions.

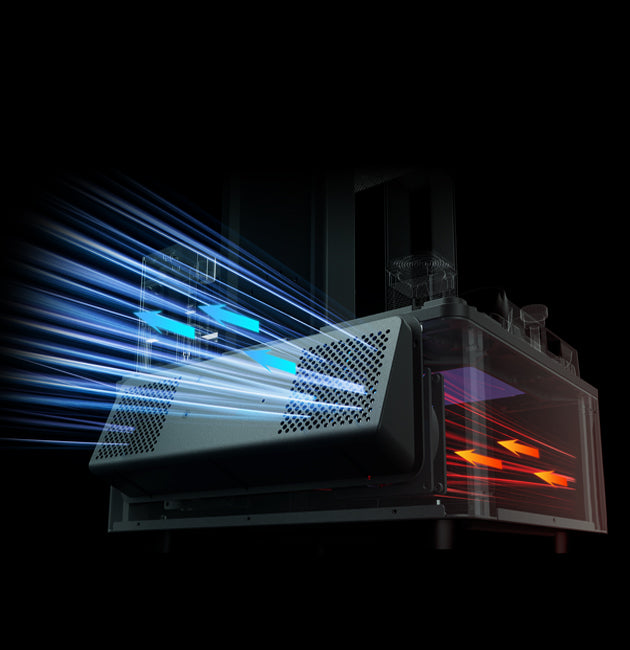

Efficient Cooling System

There are cooling fans and heat-conducting copper tubes on both sides of the COB light source for efficient heatdissipation, maintaining a stable temperature during the printing process to extend the service life of the printer.

Hassle-free Slicing

Jupiter SE is compatible with Tango and ChituBox. You can choose from these different slicing tools for your 3D printing needs.

  • LCD: 12.8″ 6K Mono LCD
  • System: EL3D-3.0.1
  • Slicer Software: Chitubox & Voxeldance Tango
  • Technology: MSLA Stereo lithography
  • Layer Thickness: 0.01-0.2mm
  • Printing Speed: MAX 70mm/H
  • Z Axis Accuracy: 0.02mm
  • XY Resolution: 51*51um (5448*3064)
  • Build Volume: 277.848mm(L)*156.264mm(W)*300mm(H)
  • Light Source: COB+Refractive Light Source (wavelength 405nm)
  • Languages: Chinese, English
  • Connectivity: USB
  • Net Weight: 19.5KG
  • Gross Weight: 26.6 kg
  • Operation: 3.5-inch Resistive Touch Screen
  • Power Requirements: 100-240V 50/60 Hz 24V 7.5A
  • Printer Dimensions: 479.9mm(L)*377.4mm(W)*657.5mm(H)
