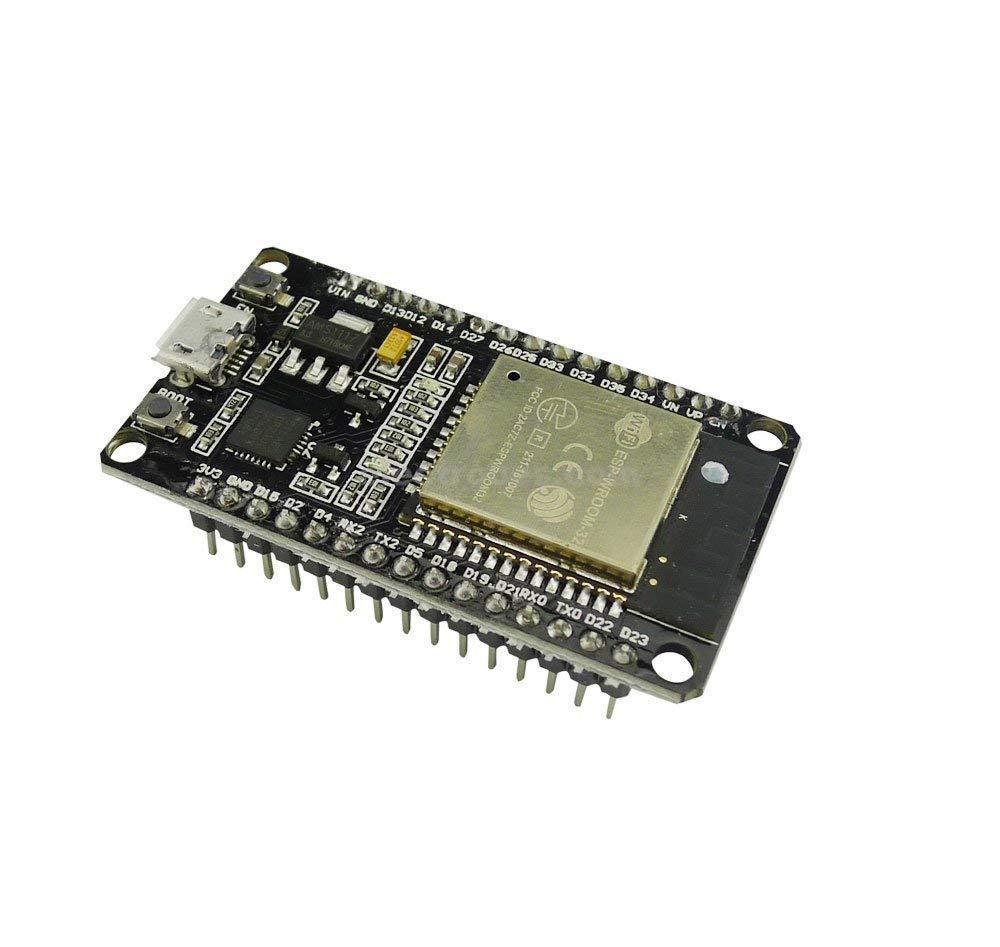

ESP32 WROOM-32 WiFi + Bluetooth MCU Module 30 Pin

This is ESP WROOM 32/ ESP32 WiFi-BT-BLE MCU Module. ESP WROOM 32 is a powerful, generic WiFi-BT-BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding.

At the core of this module is the ESP32 chip, which is designed to be scalable and adaptive. There are 2 CPU cores that can be individually controlled or powered, and the clock frequency is adjustable from 80 MHz to 240 MHz. The user may also power off the CPU and make use of the low-power co-processor to constantly monitor the peripherals for changes or crossing of thresholds. ESP32 integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SPI, UART, I2S and I2C.

Application :

1. Universal low power IoT sensor hub.
2. Home automation.
3. Universal low power IoT recorder.
4. Mesh network.
5. Video streaming of the camera.
6. Industrial wireless control.
7. OTT TV box / set-top box device.
8. Baby monitor.
9. Smart Socket.
10. Sensor networks.
11. Wi-Fi toys: Counters, toys, Anti-lost device.
12. Wearable electronic products.
13. Wi-Fi speech recognition device.
14. Wi-Fi location-aware devices.

Features :

1. Single or Dual-Core 32-bit LX6 Microprocessor with clock frequency up to 240 MHz.
2. 520 KB of SRAM, 448 KB of ROM and 16 KB of RTC SRAM.
3. Supports 802.11 b/g/n Wi-Fi connectivity with speeds up to 150 Mbps.
4. Support for both Classic Bluetooth v4.2 and BLE specifications.
5. 34 Programmable GPIOs.
6. Up to 18 channels of 12-bit SAR ADC and 2 channels of 8-bit DAC
7. Serial Connectivity include 4 x SPI, 2 x I²C, 2 x I²S, 3 x UART.
8. Ethernet MAC for physical LAN Communication (requires external PHY).
9. 1 Host controller for SD/SDIO/MMC and 1 Slave controller for SDIO/SPI.
10. Motor PWM and up to 16-channels of LED PWM.
11. Secure Boot and Flash Encryption.
12. Cryptographic Hardware Acceleration for AES, Hash (SHA-2), RSA, ECC and RNG.

For more details Read ESP32-WROOM32 Data sheet

ESP32 Peripherals Features:

• 18 Analog-to-Digital Converter (ADC) channels
• 10 Capacitive sensing GPIOs
• 3 UART interfaces
• 3 SPI interfaces
• 2 I2C interfaces
• 16 PWM output channels
• 2 Digital-to-Analog Converters (DAC)
• 2 I2S interfaces

Package Includes:

1 x ESP32 WROOM-32 WiFi + Bluetooth MCU Module 30 Pin
