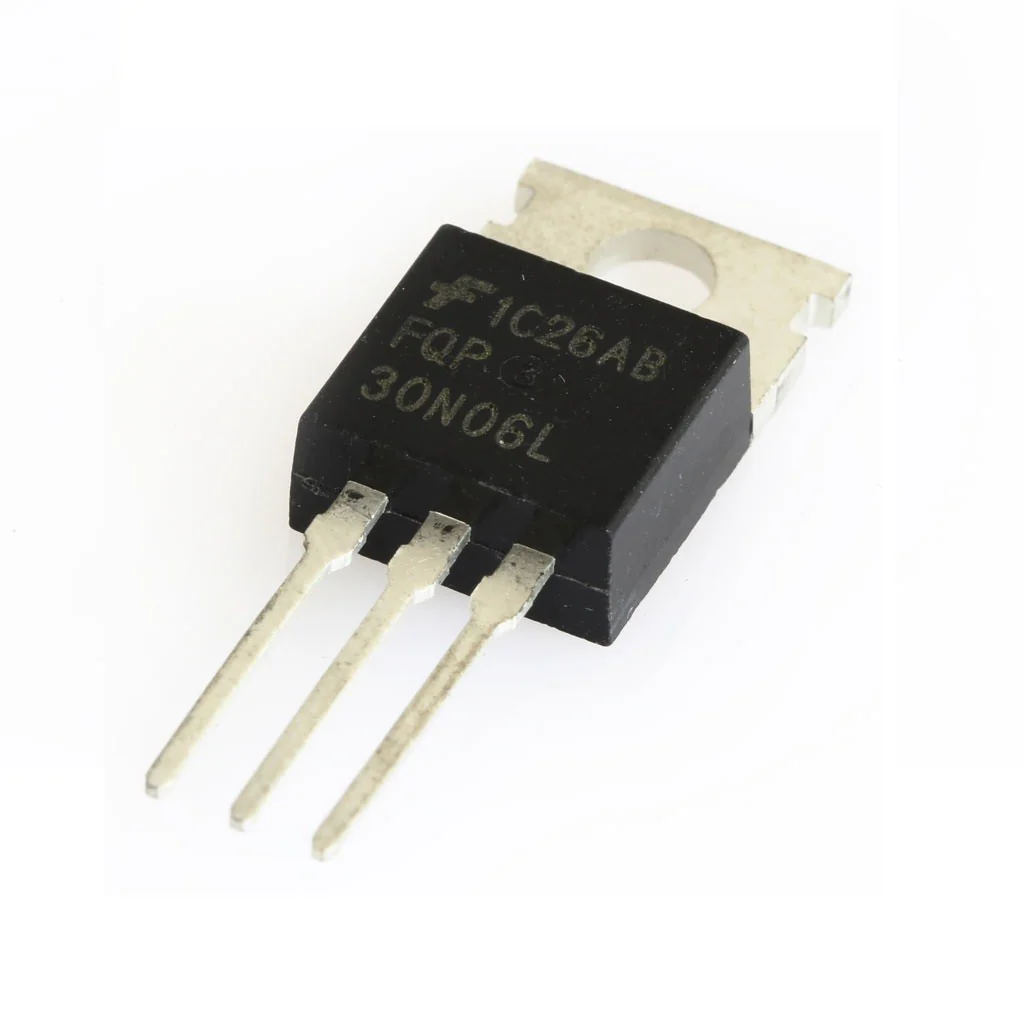

FQP30N06 Transistor Power MOSFET N Channel 60V 30A

FQP30N06
LOGIC LEVEL COMPATIBLE HIGH POWER MOSFET

• N-Channel MOSFET ideal for using directly with Microcontroller Pins
• Use directly with Digital Outs of Arduino or Raspberry Pi
• 5v switching is fine
• Control motors, lights and other high power devices from your Microcontroller
• 30A maximum current handling (use a heatsink for large currents)
• 60v maximum voltage

FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss): 60V
Current – Continuous Drain (Id): @ 25°C 32A (Tc)
Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
Rds On (Max) @ Id, Vgs: 35mOhm @ 16A, 10V
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Gate Charge (Qg) (Max): @ Vgs 20nC @ 5V
Vgss (Max): ±20V
VGS(th) Gate Threshold Voltage ID = 250 μA 2.0 – 4.0 V
Input Capacitance (Ciss) (Max) @ Vds: 1040pF @ 25V
FET Feature
Power Dissipation (Max) : 79W (Tc)
Operating Temperature: -55°C ~ 175°C (TJ)
Mounting Type: Through Hole
Supplier Device Package: TO-220-3
