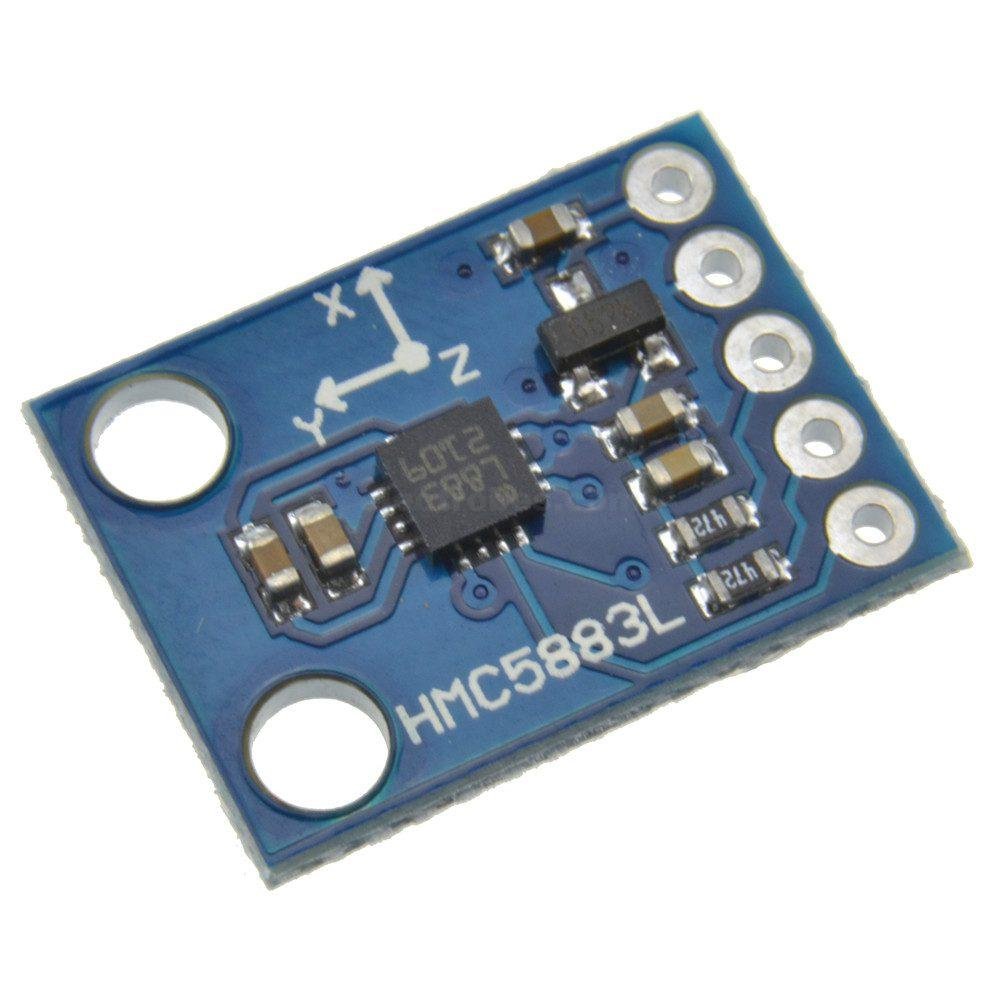

GY-273 HMC5883L Triple Axis Compass Magnetometer Sensor Module
In stock
₨ 500 ₨ 580
In stock
HMC5883L Magnetometer Module Features & Specifications:
- Operating Voltage: 3V to 6V DC
- I2C interface
- 1-2 degree heading accuracy
- Integrated 12-bit ADC
- 160Hz max data rate
- Range of -8 to +8 Gauss
- Needs no external components
- Easy to use with Microcontrollers or even with normal Digital/Analog IC
- Small, cheap and easily available
Package Contents:

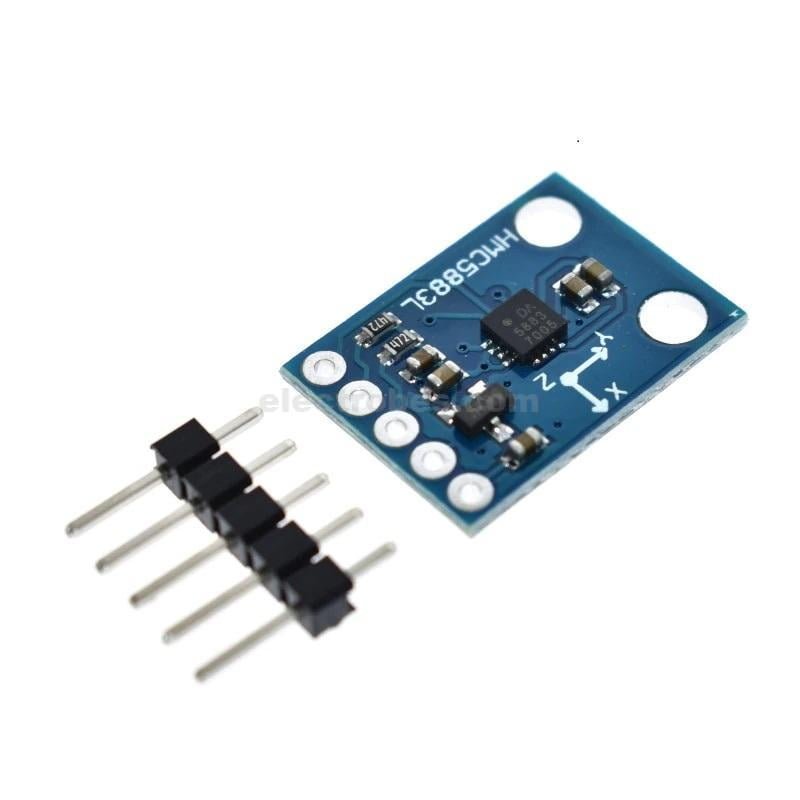

- 1 — HMC5883L Triple-Axis Magnetometer Compass GY-273 Module
- 1 — 1×5 pin male header

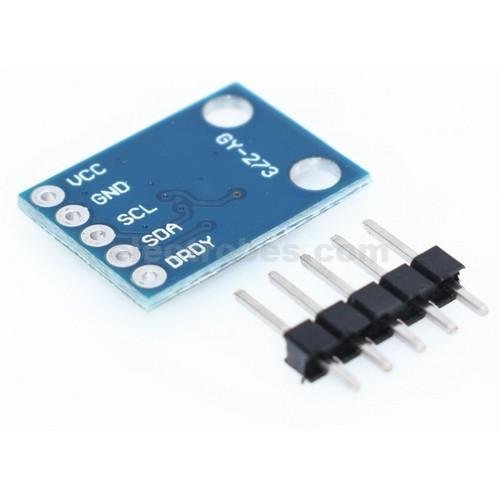

HMC5883L Pinout Configuration:
|
Pin Name |
Description |
|
VCC |
The Vcc pin powers the module, typically with +5V |
|
GND |
Power Supply Ground |
|
SCL |
Serial Clock Pin. Connect this pin to the SCL pin of Microcontroller. |
|
SDA |
Serial Data Pin. Connect this pin to the SDA pin of Microcontroller. |
|
DRDY |
Data Ready Pin Output. This pin is used to know that when data is ready to be read |
HMC5883L 3-Axis Compass Module Interfacing with Arduino:
Follow the step by step guide to interface the module with Arduino uno board. Visit the link here
- Type: GY-271
- Operating Voltage : 3 -5 V DC.
- Chipset: HMC5883L.
- Communication: I2C protocol.
- Measuring range: ± 1.3-8 Gauss.
- Dimensions : 14.8 x 13.5 x 3.5 mm.
- Weight: 2 gm.
