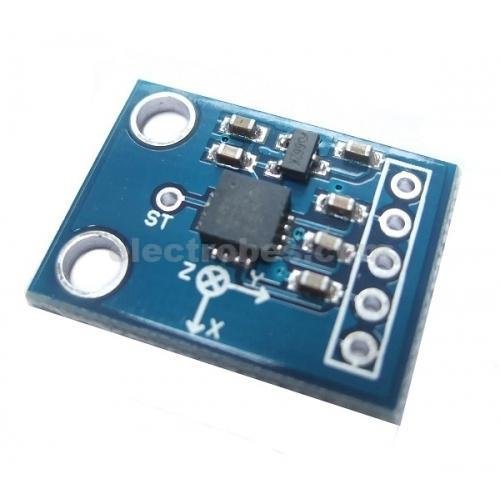

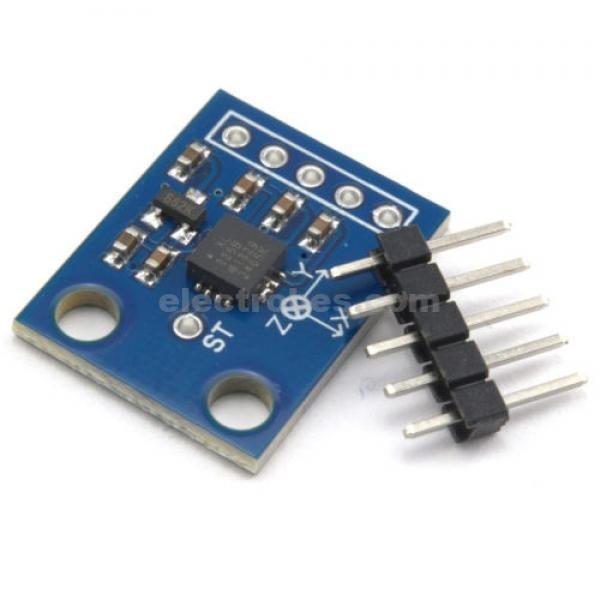

GY-61 ADXL335 Tripple Axis Compass Accelerometer Module

GY-61 DXL335 3-Axis Accelerometer Module is a three axis accelerometer sensor module based on ADXL335 integrated circuit. This module includes optional header pins and provides easy access to the X, Y and Z axis analogue outputs from the accelerometer. It is capable of sensing forces up to 3g in all axis. The ADXL335 is a triple axis accelerometer with extremely low noise and power consumption. The sensor has a full sensing range of +/-3g. It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration.

There is an on-board 3.3V voltage regulator to power the ADXL335 so power provided should be between 3.3V and 6V DC.

Features:

• Three-axis magnetic field accelerometer module
• Compact size, low power supply
• Used for game systems, mobile devices, etc

Note:

Pins are not soldered
