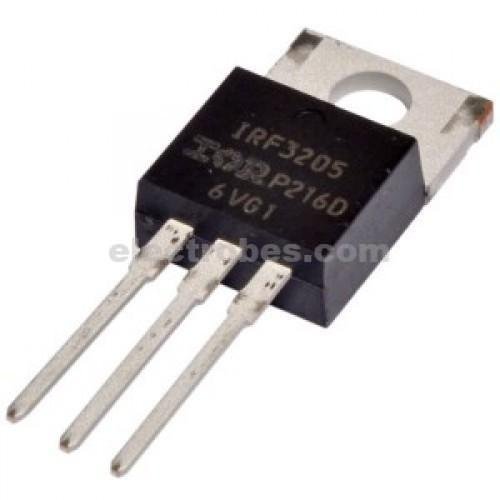

IRFP3205 IRF3205 N-Channel FET MOSFET
| Family | IRF3205 |
| Category | Power MOSFET |
| Configuration | Single |
| Maximum Continuous Forward Current | 110A |
| Maximum Power Dissipation | 200000mW |
| Number of Elements per Chip | 1 |
| Peak Forward Voltage | 55VDC |
| Output Power | 200W |
| Peak Non-Repetitive Surge Current | 390A |
| Peak Reverse Current | 25uA |
| Channel Mode | N-Channel Enhancement |
| Peak Reverse Recovery Time | 101ns |
| Channel Type | N |
| Peak Reverse Repetitive Voltage | 55VDC |
| Maximum Continuous Drain Current | 110A |
| Maximum Drain Source Resistance | 0.008 Ohms@10V |
| Maximum Drain Source Voltage | 55V |
| Maximum Gate Source Voltage | ±20V |
| Typical Fall Time | 65ns |
| Typical Gate Charge @ Vgs | 146nC @10V |
| Typical Input Capacitance @ Vds | 3247pF@25V |
| Typical Rise Time | 101ns |
| Typical Turn-Off Delay Time | 50ns |
| Typical Turn-On Delay Time | 14ns |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | 175°C |
| Mounting | Through Hole |
| Packaging | Bulk |
| Pin_Count | 3 |
| Supplier Package | TO-220AB |
| Product Width | 4.69mm |
| Product Height | 8.77mm |
| Product Length | 10.54mm |
| Product Type | MOSFET |
Availability:
In stock
₨ 60
In stock
