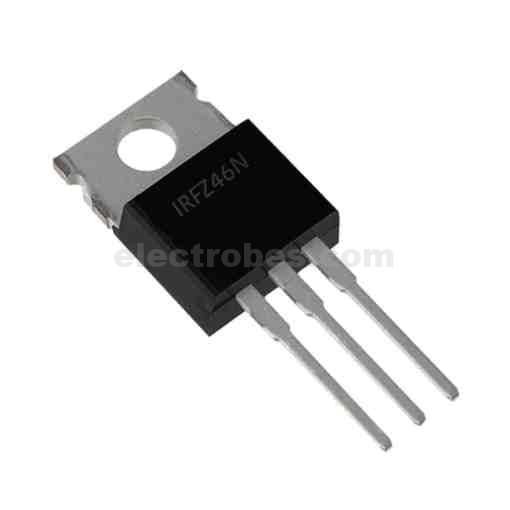

IRFZ46 50A 50V N-Channel Power MOSFET
Compare
Availability:
Out of stock
₨ 50
Out of stock
IRFZ46 50A 50V N-Channel Power MOSFET is Specifically designed for Automotive applications, this stripe planar design of HEXFET Power MOSFETs utilizes the latest processing techniques to achieve low on-resistance per silicon area. This benefit combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in Automotive and a wide variety of other applications.
IRFZ46 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Gate |
| 2 | Drain |
| 3 | Source |
IRFZ46 Key Features
- Dynamic dv/dt Rating
- 1750C Operating Temperature
- Fast Switching
- Ease Of Paralleling
- Simple Drive Requirements
- Type Designator: IRFZ46
- Type of Transistor: MOSFET
- Type of Control Channel: N -Channel
IRFZ46 Specification:
| Id (A) | Pd (W) | Vds (max) | Rds (on) | Vgs (max) |
|---|---|---|---|---|
| 50 | 150 | 50 | 0.024 | 20 |
IRFZ46 Equivalent /Alternative:
- IRF044, IRF044SMD, IRF054, IRF054SMD, IRF100B201
Application:
- Reliable Device For Use In a Wide Variety Of Applications
You can download this datasheet for IRFZ46 50A 50V N-Channel Power MOSFET from the link given below:
- Type: n-channel
- Drain-to-Source Breakdown Voltage: 55 V
- Gate-to-Source Voltage, max: ±20 V
- Drain-Source On-State Resistance, max: 0.028 Ohm
- Continuous Drain Current: 50 A
- Total Gate Charge: 67 nC
- Power Dissipation: 150 W
- Package: TO-220AB
