Converters, Modules and Breakout Boards Compare

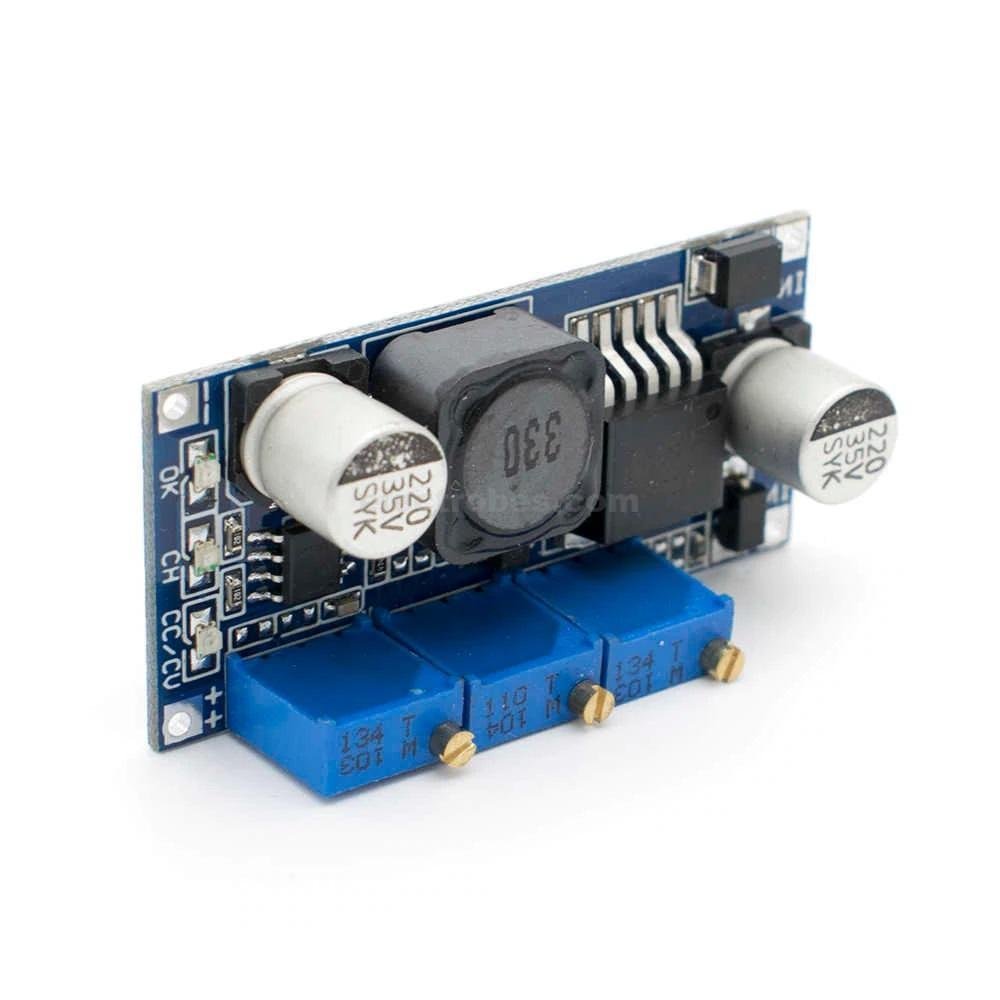

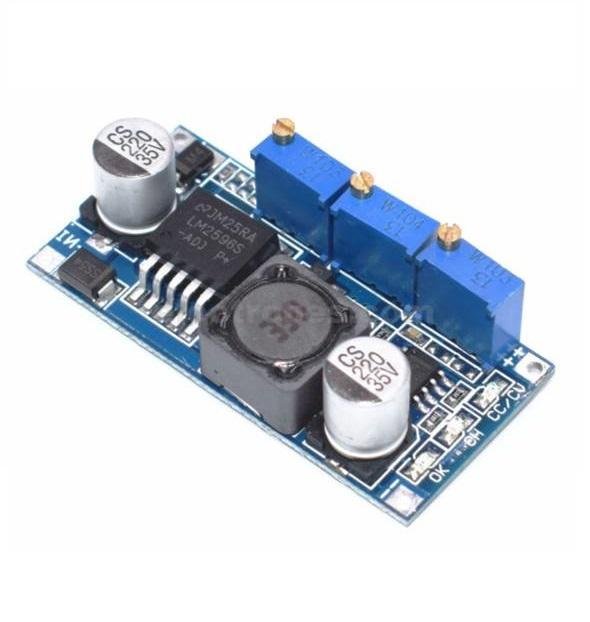

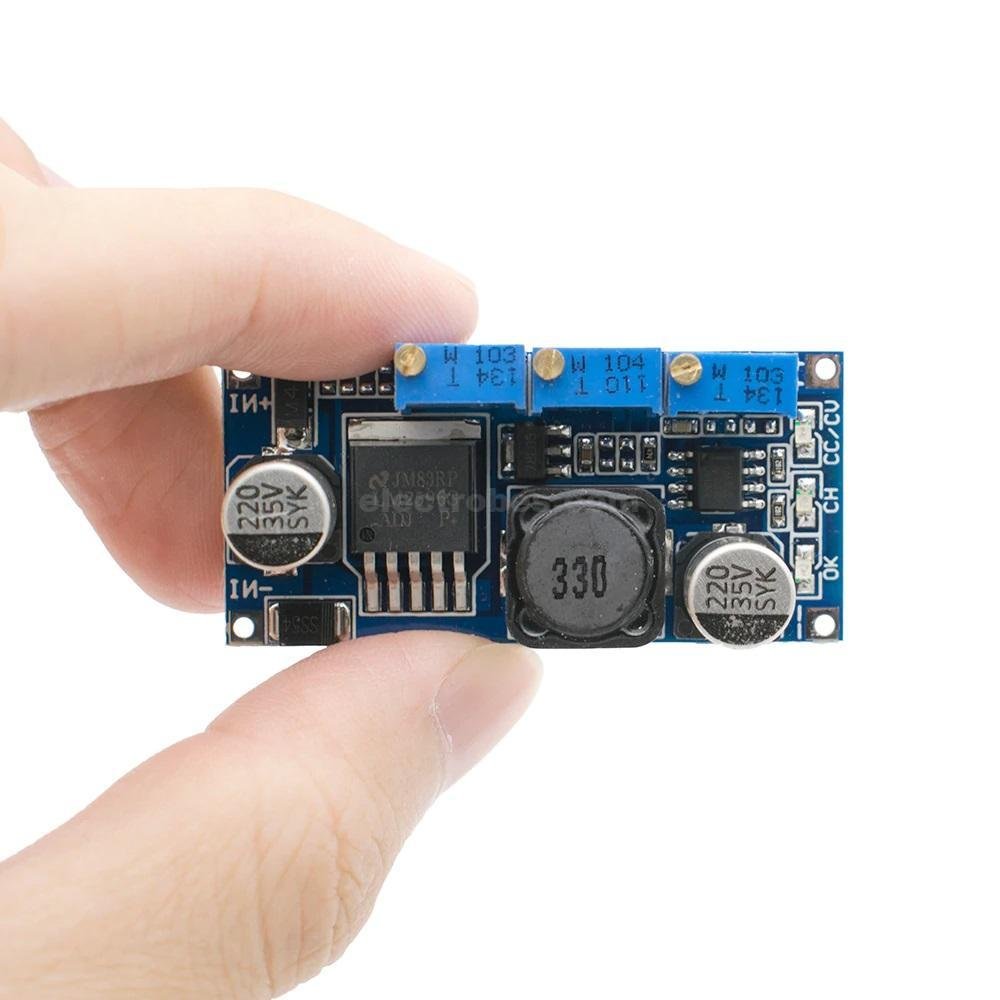

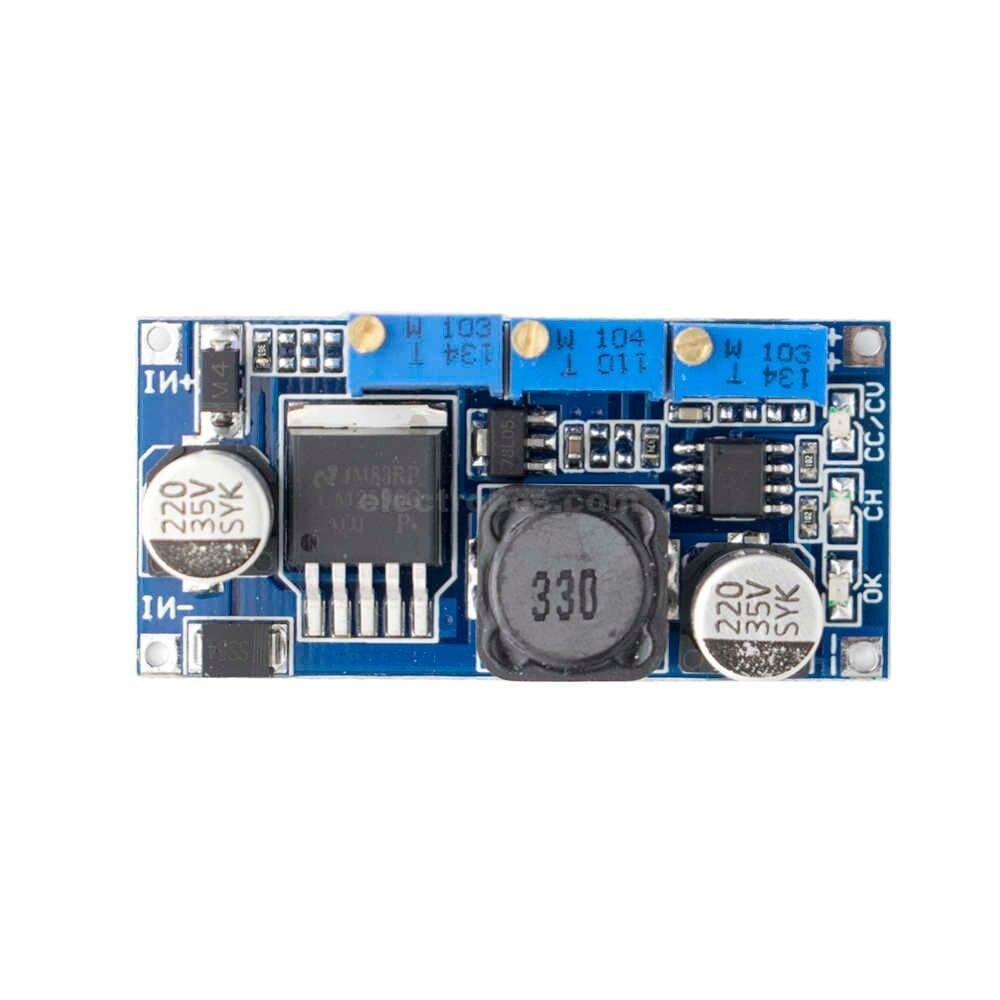

LM2596 Tripple / Three Variables Buck Adjustable Step Down Power Supply Module DC-DC Converter
- Input voltage: 4-35V
- Output Voltage: 1.5-35V (adjustable)
- Output current: rated current 2A, maximum 3A (heat sink required)
- Conversion efficiency: Up to 92% (the higher the voltage, the higher the efficiency)
- Switching Frequency: 150KHz
- Rectifier: Non-Synchronous Rectification
- Module Properties: Non-isolated step-down module (buck)
- Short circuit protection: current limiting
- Operating temperature: Industrial grade (-40 ℃ to +85 ℃) (output power 10W or less)
- Full load temperature rise: 40 ℃
- Load regulation: ± 0.5%
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Output ripple:
- Input 12V Output 5V 3A 60mV (MAX)
- Input 24V Output 12V 3A 120mV (MAX)
Availability:
Out of stock
₨ 300
Out of stock
