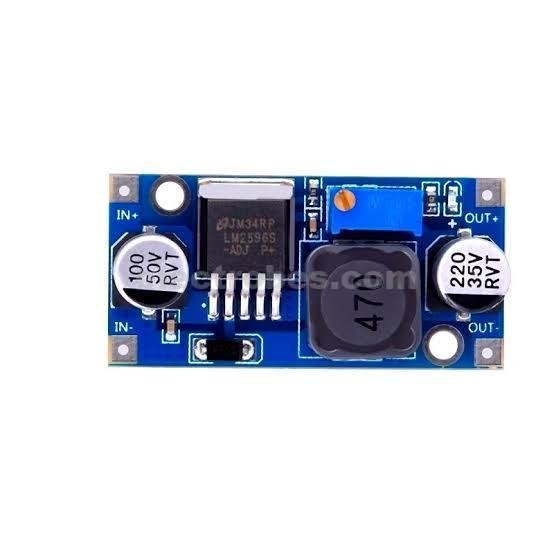

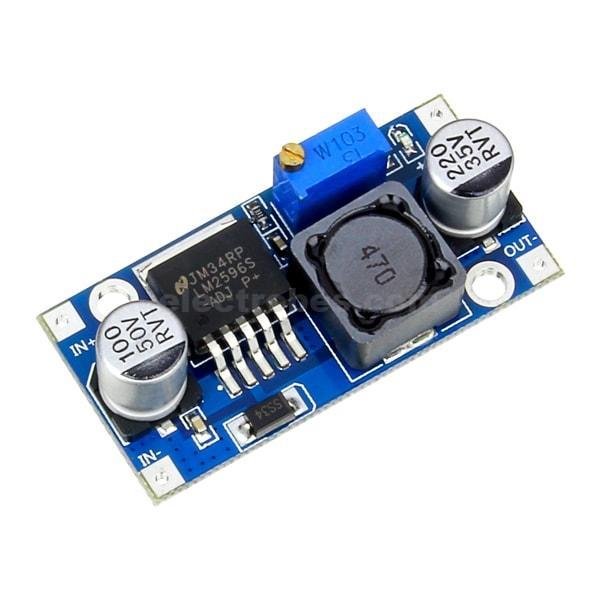

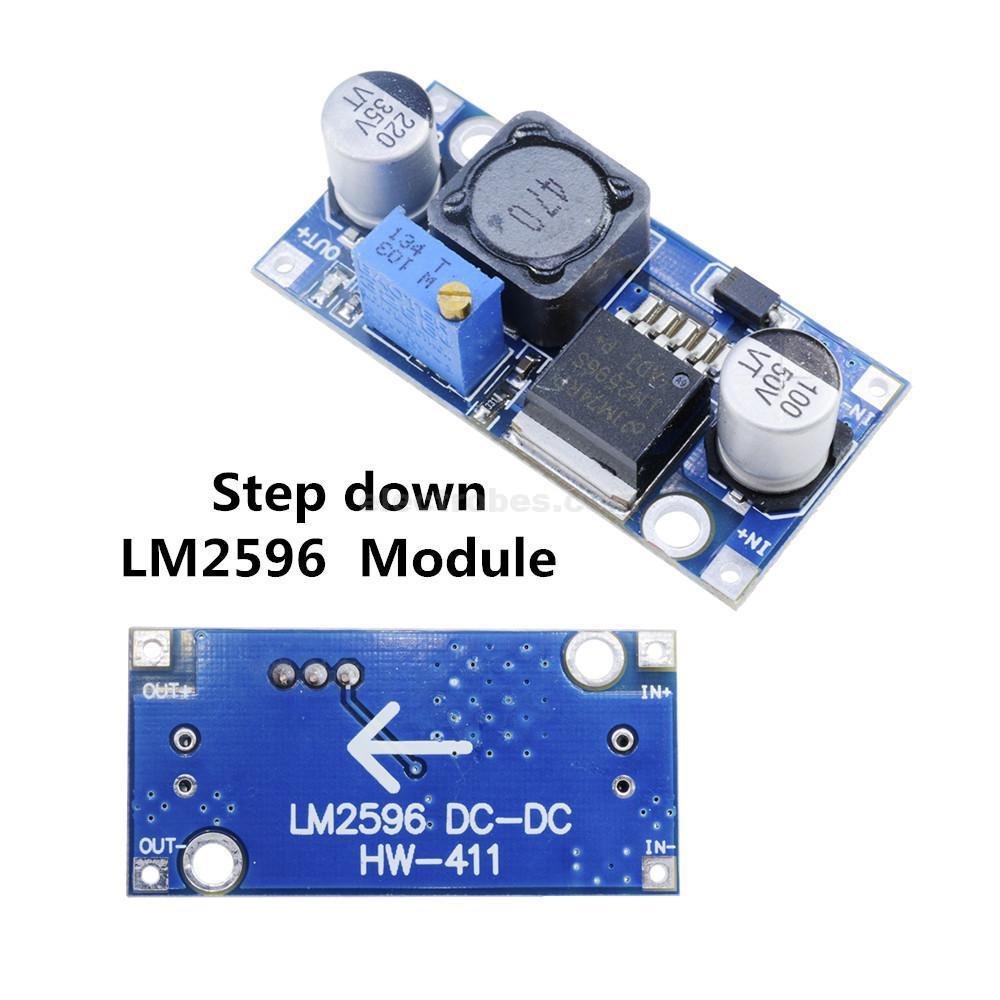

LM2596 Buck Adjustable Step Down Power Supply Module DC-DC Converter

LM2596 DC-DC Buck Converter Step Down Module Power Supply is a step-down(buck) switching regulator. LM2596 Buck is capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.

The LM2596 Stepdown module is operating at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators.

Features of LM2596 DC-DC Buck Converter Module:

• Output ripple: 30mA maximum
• Load Regulation: ± 0.5%
• Voltage Regulation: ± 0.5%
• Dynamic Response speed: 5% 200uS
• Input voltage:4.75-35V
• Output voltage:1.25-26V(Adjustable)
• Output current: Rated current is 2A, maximum 3A(Additional heat sink is required)
• Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
• Rectifier: Non-Synchronous Rectification
• Module Properties: Non-isolated step-down module (buck)
• Short Circuit Protection: Current limiting, since the recovery
• Operating Temperature: Industrial grade (-40 to +85 ) (output power 10W or less)

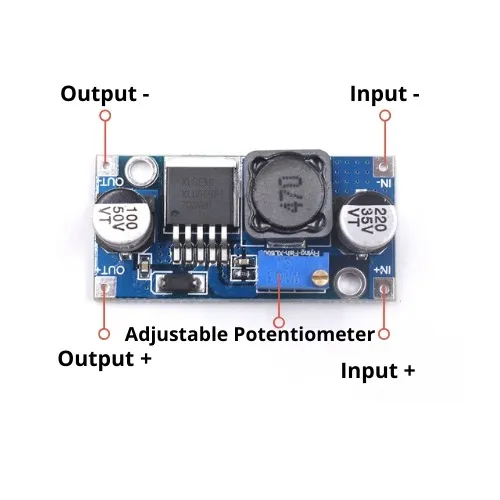

Pinouts of LM2596 step-down power supply module:

Package Includes:

1 x LM2596 DC-DC Buck Converter Power Supply
