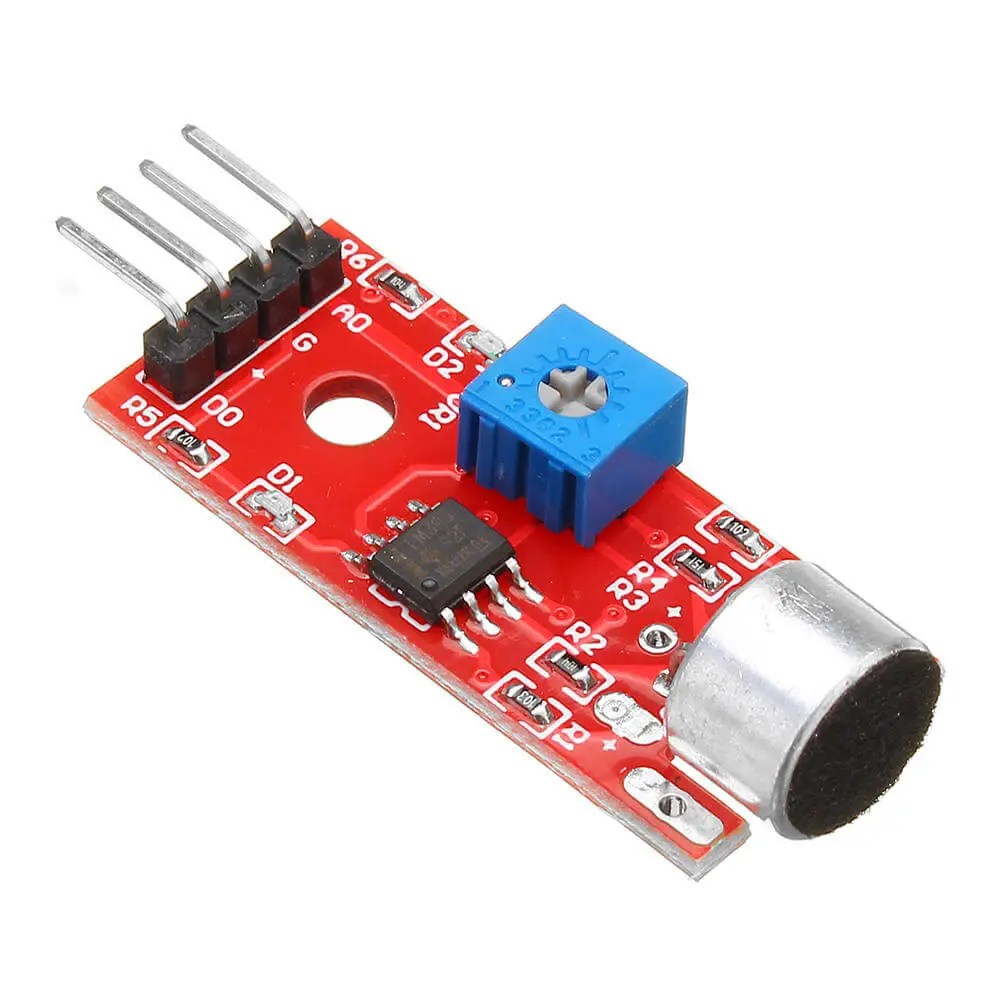

LM393 Sound Detection Sensor Module KY-038

The sound level setpoint is adjusted via an onboard potentiometer. When the sound level exceeds the set point, an LED on the module is illuminated and the output is sent low.

Compare
Availability:

Only 2 left in stock

 140

Only 2 left in stock

LM393 Sound Detection Sensor Module KY-038 for Arduino

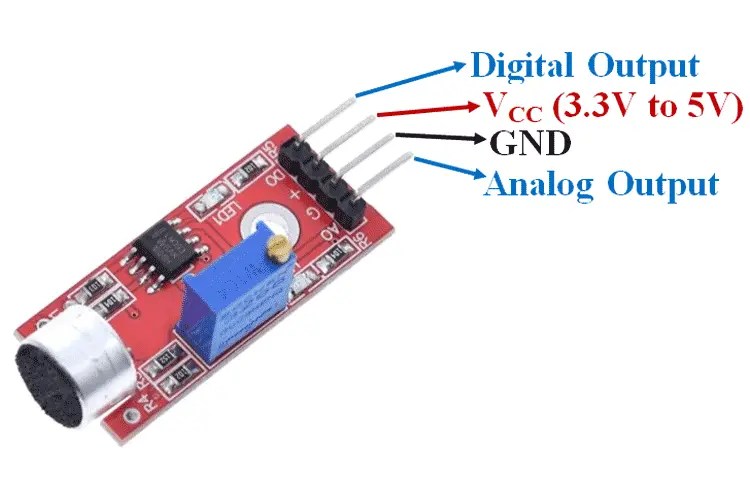

The LM393 Sound Detection Sensor Module KY-038 is High Sensitivity Microphone Sensor which is a small, easy-to-use and can use to detect sound levels. HW-484 Sound Detection Sensor Module has four pins: VCC, GND, OUT, and AO. The VCC and GND pins are used to supply power to the module, the OUT pin is the digital output pin, and the AO pin is the analog output pin.

The output of this module is both analog and digital. The digital output acts as a key, and it activates when sound intensity has reached a certain threshold. The analog output voltage changes with the intensity of sound received by the microphone. You can connect this output to Arduino analog pins and process the output voltage.

KY038 Sound Detection Sensor Module is Arduino compatible and based on LM393 OP-AMP which detects whether the sound has exceeded a threshold value. In the LM393 Sound Detection Sensor Module, the op-amp is used to amplify the signal from the microphone and compare it to a reference voltage. The reference voltage is set by the potentiometer on the sensor.

The LM393 Sound Detection Sensor Module can power by a voltage between 3V and 5V. The input voltage is supplied to the VCC and GND pins on the module. The operating voltage of the module is determined by the voltage that is supplied to the VCC pin.

This Digital Sound Detection Sensor Module KY-038 also has two LEDs: a power LED and a signal LED. The power LED turns on when the module is powered on, and the signal LED turns on when the sound level exceeds a certain threshold.

Overall, the HW-484 Digital sound detection sensor module is a versatile and a good choice for projects that require a small, lightweight, and reliable sound detection module.

Features:

The KY-038 Digital sound detection sensor module is an analog/digital sensor that uses a condenser microphone to observe changes in environment noise. It has four pins: VCC, GND, SIG, and OUT. The VCC and GND pins are used to supply power to the module, the SIG pin is the analog output pin, and the OUT pin is the digital output pin.

The LM393 Sound Detection Sensor Module can use in a variety of Projects. It can use to detect sound levels, control devices based on sound levels, or collect data on sound levels. Here are some of the benefits of using the KY-038 Digital sound detection sensor module:

  • Versatile
  • Easy to use
  • Reliable
  • Low power
  • Has both analog and digital output

LM393 Sound Detection Sensor Specifications:

The AO pin on the Digital microphone Sensor Module provides an analog signal that is proportional to the sound level. This signal used to measure the sound level or to control devices based on the sound level.

The Digital microphone Sensor Module consumes very little power, making it ideal for battery-powered applications. It can operate on a voltage between 3V and 5V. Here are some of the specifications of the LM393 Sound Detection Sensor Module:

  • Operating voltage: 3V to 5V
  • Digital output: 0 or 1
  • Analog output: 0 to 3.3V
  • Sensitivity: Adjustable
  • Signal-to-noise ratio: >50dB
  • Dimensions: 28mm x 28mm x 11mm

LM393-Arduino-High-Sensitivity-Microphone-Sound-Sensor-Module-KY-037-KY-038-Module-Sound-Detection at best price online in islamabad rawalpindi lahore peshawar faisalabad karachi hyderabad quetta wah taxila Pakistan LM393-Arduino-High-Sensitivity-Microphone-Sound-Sensor-Module-KY-037-KY-038-Module-Sound-Detection at best price online in islamabad rawalpindi lahore peshawar faisalabad karachi hyderabad quetta wah taxila Pakistan LM393-Arduino-High-Sensitivity-Microphone-Sound-Sensor-Module-KY-037-KY-038-Module-Sound-Detection at best price online in islamabad rawalpindi lahore peshawar faisalabad karachi hyderabad quetta wah taxila Pakistan LM393-Arduino-High-Sensitivity-Microphone-Sound-Sensor-Module-KY-037-KY-038-Module-Sound-Detection at best price online in islamabad rawalpindi lahore peshawar faisalabad karachi hyderabad quetta wah taxila Pakistan

  • Working voltage: DC 3.3-5V.
  • IC Chip: LM393
  • Signal output indication.
  • The output is digital.
  • Single channel signal output.
  • With the retaining bolt hole, convenient installation.
  • Output low level and the signal light when there is sound
