LM741 UA741 Operational Amplifier Op-amp IC
- LM741 has only one op-amp inside, there are some op-amp IC’s having more than one op-amp like LM358, LM148, LM248, LM348
- Provided with short circuit and overload protection.
- Low power consumption.
- Large common mode rejection ratio (CMRR) and differential voltage ranges.
- No external frequency compensation is required.
- Prevent from latch-up when common-mode range is exceeded.
- Minimum, normal and maximum Power Consumption for this IC is ±10v, ±15v and ±22v respectively.
- Operating temperature should be -50 to 125 ˚C.
- Supply current – 1.7 to 2.8mA.
- Soldering pin temperature – PDIP package – 260 ˚C (for 10 seconds – prescribed)
- TO-99 and CDIP – 300 ˚C (for 10 seconds – prescribed)
- Available packages: TO-99, CDIP & PDIP
In stock
₨ 30
In stock
An LM741 operational amplifier is a DC-coupled high gain electronic voltage amplifier. It has only one op-amp inside. An operational amplifier IC is used as a comparator which compares the two signal, the inverting and non-inverting signal. The main function of this IC is to do mathematical operation in various circuits. Op-amps have large gain and usually used as Voltage Amplifier. The LM741 can operate with a single or dual power supply voltage.
OUTPUT Voltage = Gain * Input Voltage

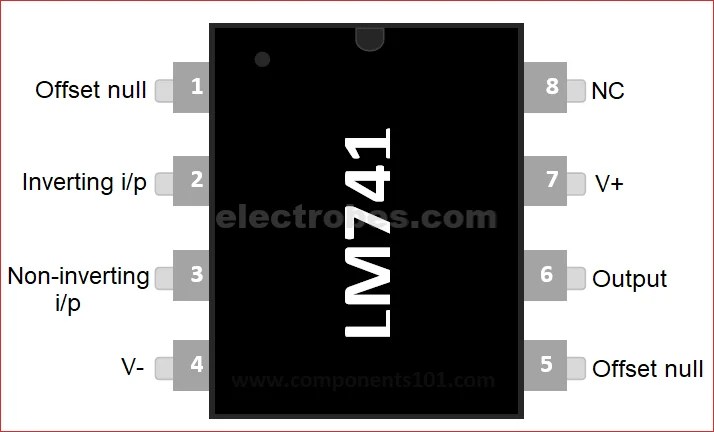

LM741 Pin Configuration
| Pin Number | Pin Name | Description |
| 1 , 5 | OFFSET NULL | Pin used for remove the offset voltage and balance input voltage. |
| 2 | INPUT- | Inverting signal Input |
| 3 | INPUT+ | Non-Inverting signal Input |
| 4 | V- | Ground or Negative Supply Voltage |
| 6 | OUTPUT | Output of op amp |
| 7 | V+ | Positive Supply Voltage |
| 8 | NC | Not connected |
LM741 Applications
- Comparators
- DC Amplifiers
- Integrator or Differentiators
- Summing Amplifiers
- Multi-vibrators
- Active Filters
- General feedback applications
