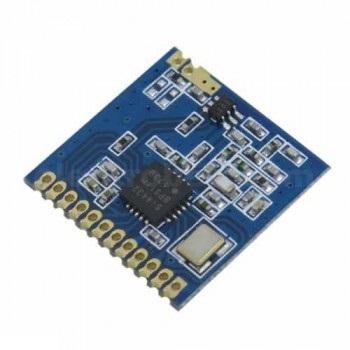

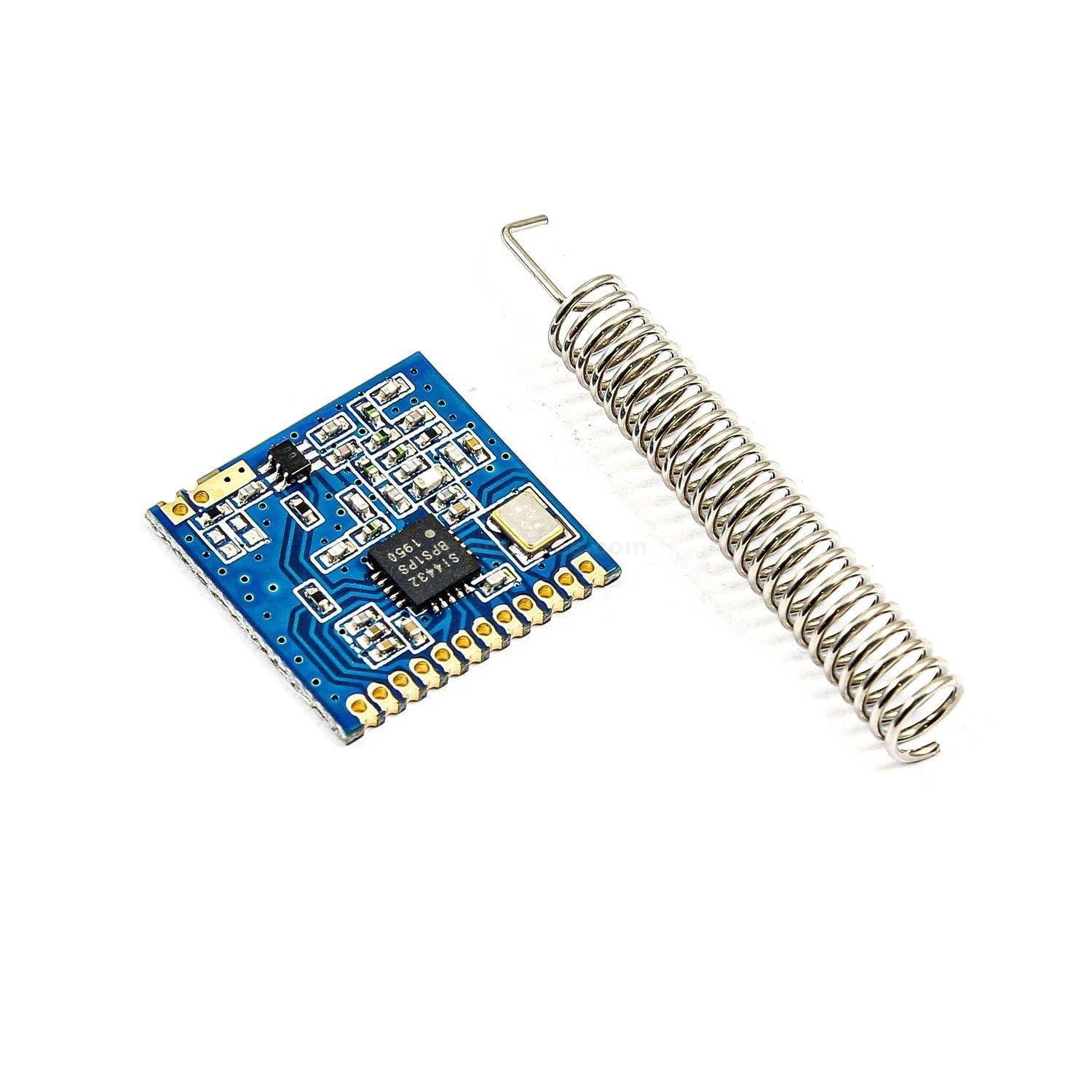

XL4432-SMT SI4432 Wireless Transceiver Module

XL4432-SMD is based on the company’s Silicon relevant information from well-designed professional manufacturing, the most fitting of various characteristics SI4432.
Murata high-frequency device module used in all specifications of inductance and capacitance, the crystal of 10ppm precision specifications ensure that the wireless module features to be fully reflected.
From professional OEM using precision SMT lead- solder cessing, all modules have been professional equipment testing, consistency, and stability of the modules are fully tested.
SPI interface, small size volume, convenient Stamp Interface embedded design, fully extended from your equipment performance to the next level.

Availability:

Out of stock

₨ 1,200

Out of stock

Add to Wishlist

Description
Specification

XL4432-SMT SI4432 Wireless Transceiver Module

Features:

SI4432 wireless module 1000 meters long distance
Operating Frequency: 240Mhz – 930Mhz (customizable)
Ultra-compact, harmonic too easy to FCC / CE certification
Penetrating ability SI4432 IC, stable performance
Sensitivity up to-121dBm
Maximum output power: 20dBm
Data transfer rate :0.123-256kbps
FSK, GFSK and OOK modulation mode
1.8-3.6 V power supply
Low consumption shutdown mode
Digital received signal strength indicator (RSSI)
Timing wake-up function
The antenna automatically match and two-way switch control
Configurable packet structure
Preamble signal detection
64-byte transmit and receive data register (FIFO)
The low-power detection
Temperature sensors and 8-bit analog-to-digital converter
Operating temperature range: -20 to +60 ° C
Integrated voltage regulator
Frequency hopping function
Power-on reset function
Built-in crystal adjustment
Second, application areas

Applications Examples

Remote control
Remote meter reading
Home security alarm and remote keyless entry
Industrial control
Home automation telemetry
Personal data record
Toy control
Sensor networks
Tire Pressure Monitoring
Health Monitoring
Wireless PC peripherals
Tag reader

SKU: 1430 Categories: Modules and Breakout Boards, Wireless Communication Tags: si4432, transceiver, Transceiver module, wireless, Wireless Module, xl4432

Description
Specification

Operating Frequency: 240Mhz – 930Mhz (customizable)
Operating Voltage: 1.8V to 3.6V
Current – Sleep mode : 1.0uA
Current – Standby mode : 800nA
Current – Receive mode : 18.5mA
Current – Transmit mode @ +20dBm : 85mA
Opeting Temperature: -20C to +70C
Data rate – Maximum : 256kbps
Transmit power : +20 dBm (Max)
Receiver Sensitivity : -121d

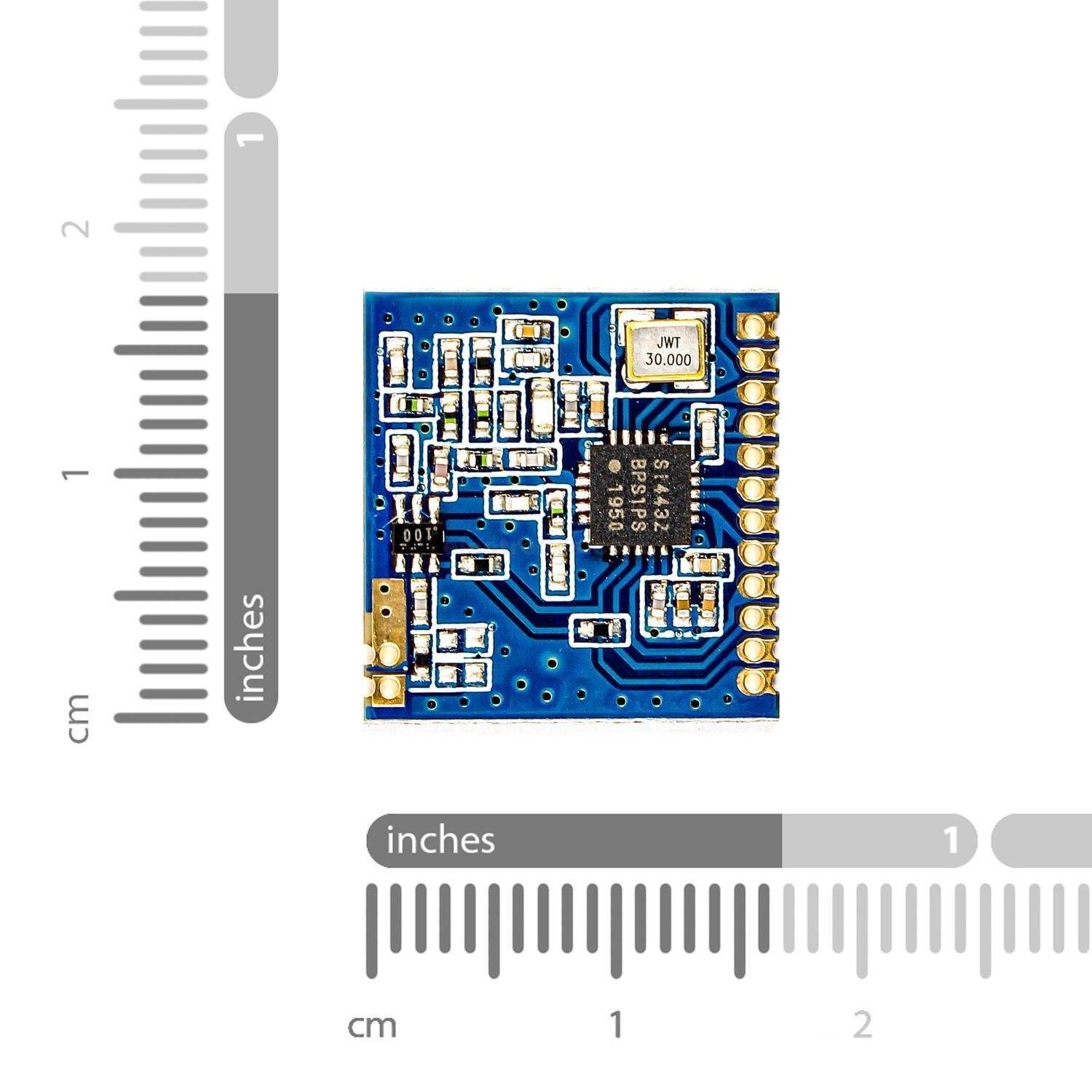

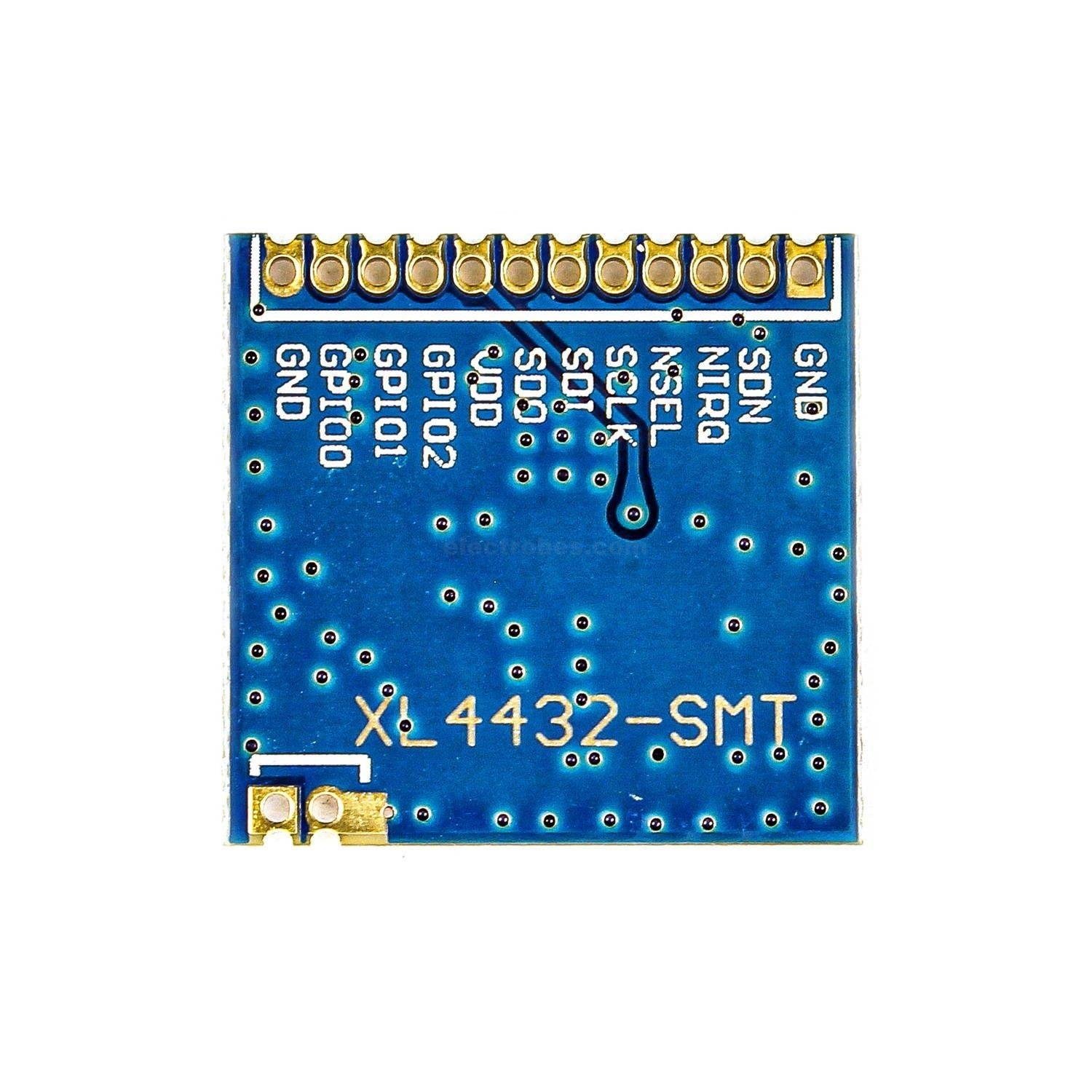

Module Header pin pitch: 0.05inch / 1.27mm.
