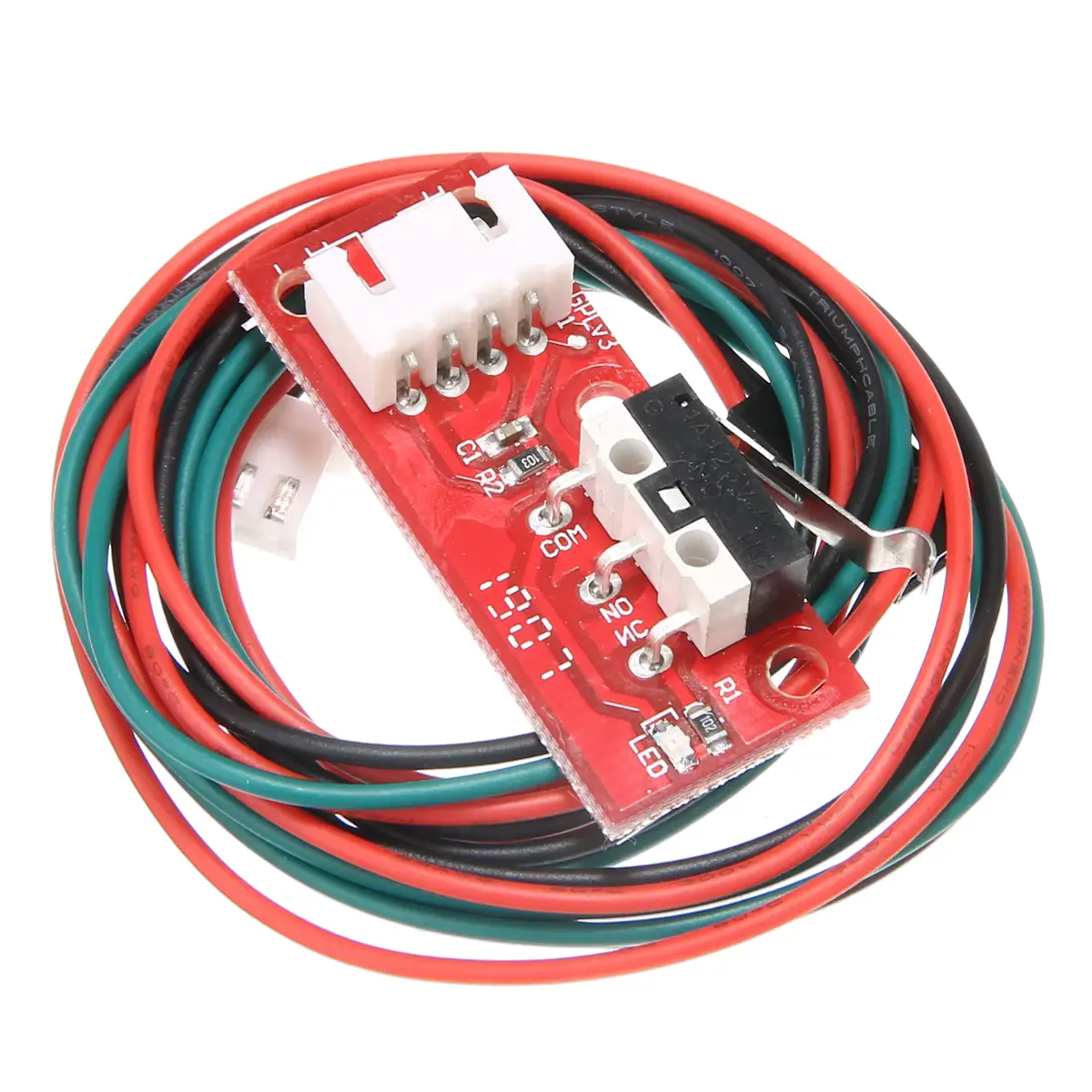

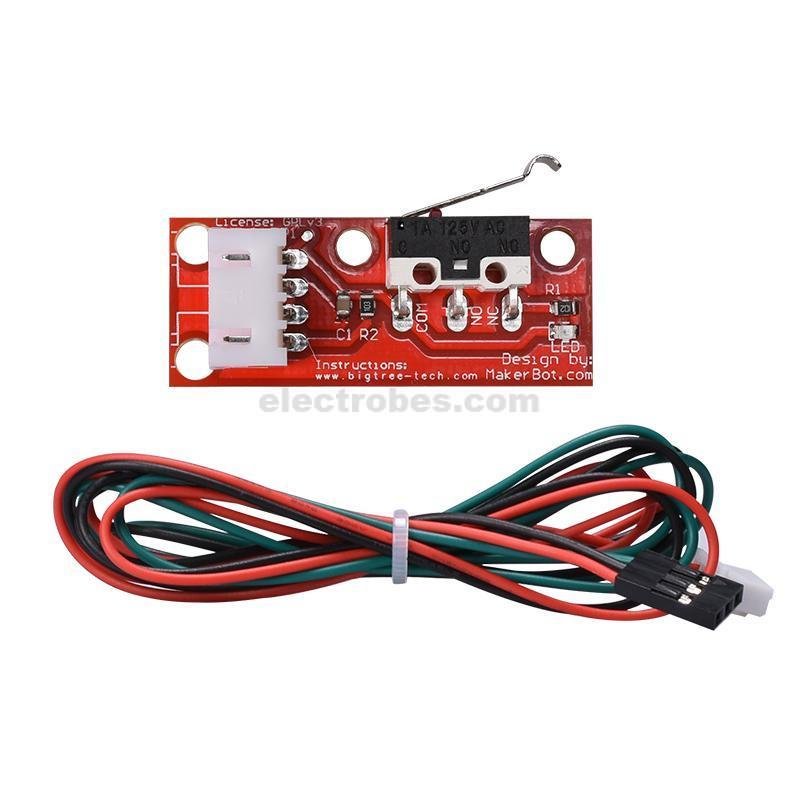

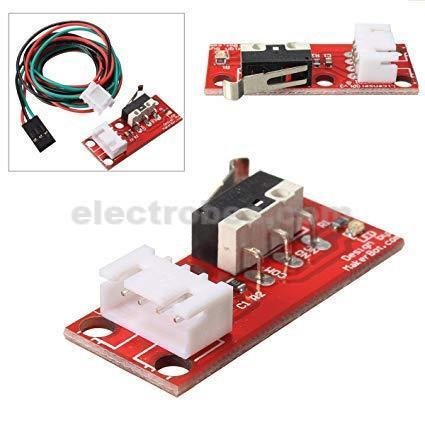

Mechanical End Stop End stop Limit Switch With Cable RAMPS 1.4

This is a common style mechanical endstop limit switch for 3D Printer. Using 22AWG wire, the copper wire inside is so thick that can withstand 2A current and 300V voltage. And it is very durable and the wire is not easy to pull off.

Features:

• High quality switching element, endstop mechanical limit switch for 3D printer.
• Customized high quality connection, using 22AWG wire, the copper wire inside is thick which can withstand 2A current, 300V voltage.
• Wide insulation temperature range: The insulation temperature can reach 80 degrees, much better than the ordinary thin copper wire.
• The wire is strong and not easy to pull off.
• Easy to use: the other side of the plug to do a whole, can be inserted directly to use.

Connection:

• Red line connecting VCC (ramps of +)
• Black wire connecting GND (ramps of -)
• Green Line connecting SIGNAL (ramps in s)

Tips: Under normal circumstances, the system must be configured to at least three mechanical switches.

Package List:

1 x Mechanical Switch Endstop

1 x 3Pin Cable
