MG996R Metal Gear Tower Pro Servo Motor 360 Degree
MG996R Metal Gear Micro Servo Motor with a maximum torque of 11 kg/cm rotates from 0 to 360 degree based on the duty cycle of the PWM. Buy online in Pakistan.
Out of stock
₨ 820
Out of stock

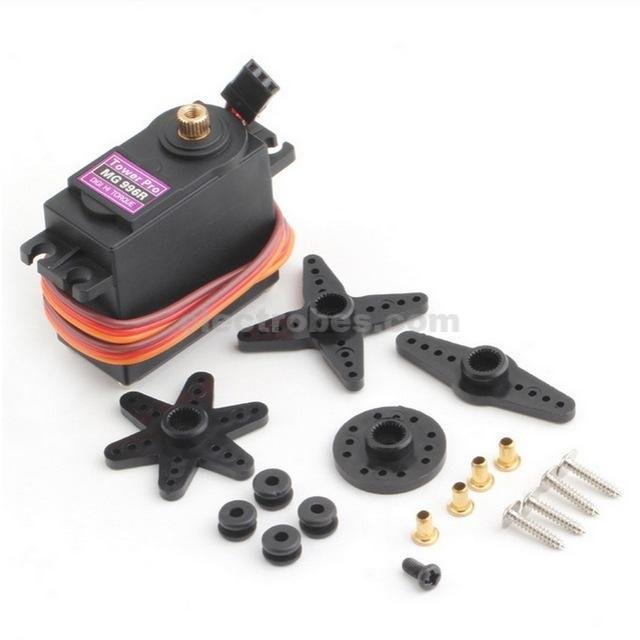

MG996R Metal Gear Tower Pro Servo Motor 360 Degree
The MG996R is a metal gear Tower Pro servo motor that has a high torque with high accuracy. Like other RC servos the motor rotates from 0 to 360 degree based on the duty cycle of the PWM wave supplied to its signal pin.
They work great with our Raspberry Pi . They’re also great for the Arduino motor shields – or simply by wiring up an Arduino with the Servo library. You can use any servo code, hardware or library to control these servos, so it’s great for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places.
Description:
- Weight: 55g
- Dimension : 40.7 × 19.7 × 42.9 mm (LxWxH)
- Operating temperature: -30 ~ + 60 °
- Deadband setting: 4 microseconds
- Rotation angle: 360°
- Torque: 4.8V: 130.5 oz-in (9.40 kg-cm), 6.0V: 152.8 oz-in (11.00 kg-cm)
- Speed: 4.8V: 0.20 sec/60°, 6.0V: 0.16 sec/60°
- Servo type: analog servo
- Operation Voltage : 4.8 – 7.2Volts
- Gear Type: All Metal Gears
- Stable and shockproof double ball bearing design
- Control System: Analog
Wire Configuration:
| Wire Number | Wire Colour | Description |
| 1 | Brown | Ground wire connected to the ground of system |
| 2 | Red | Powers the motor typically +5V is used |
| 3 | Orange | PWM signal is given in through this wire to drive the motor |
- Operating Voltage is +5V typically
- Current: 2.5A (6V)
- Stall Torque: 9.4 kg/cm (at 4.8V)
- Maximum Stall Torque: 11 kg/cm (6V)
- Operating speed is 0.17 s/60°
- Gear Type: Metal
- Rotation : 0°- 360°
- Weight of motor : 55gm
- Package includes gear horns and screws
