Tower Pro MG996R Metal Gear Micro Servo Motor 180 Degree
MG996R Metal Gear Micro Servo Motor with a maximum torque of 11 kg/cm rotates from 0 to 360 degree based on the duty cycle of the PWM. Buy online in Pakistan. Also available in 360 degree rotation.
In stock
₨ 950
In stock

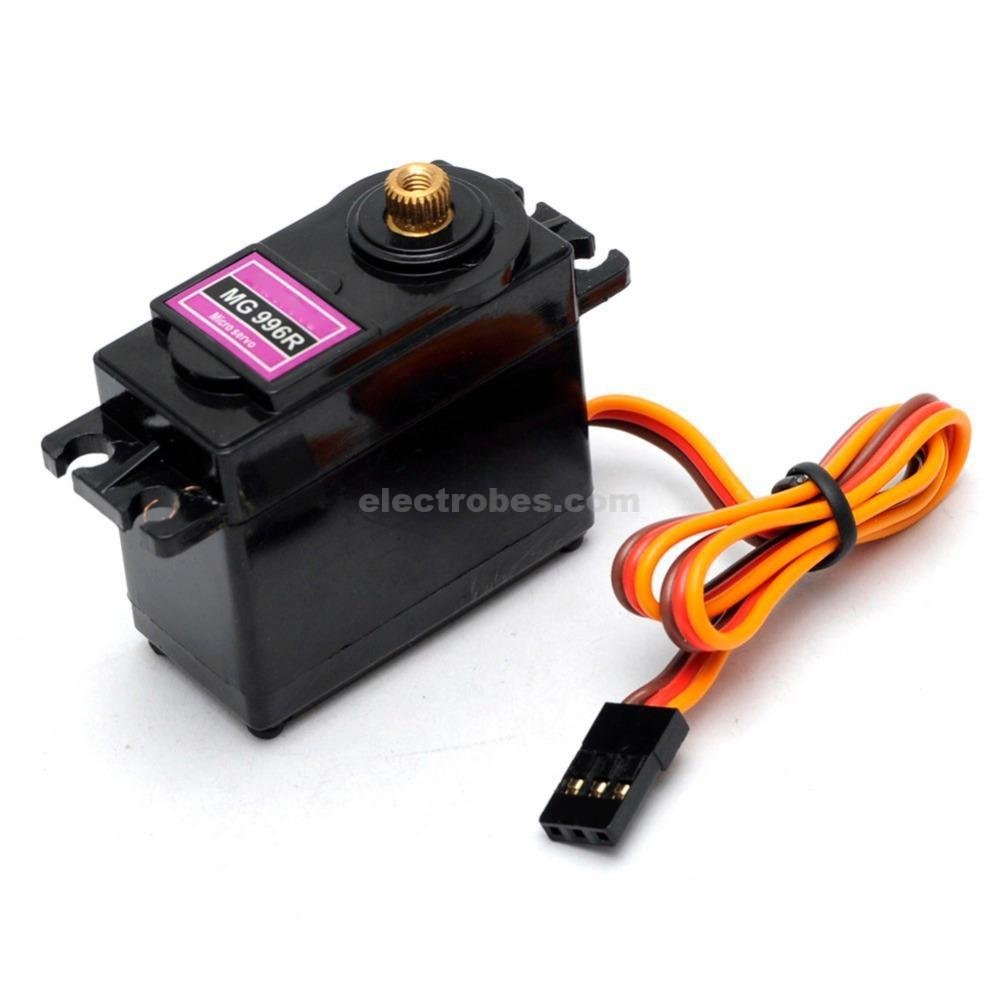

MG996R Metal Gear Micro Servo Motor 180 Degree
The MG996R is a metal gear servo motor with a maximum stall torque of 11 kg/cm. Like other RC servos the motor rotates from 0 to 180 degree based on the duty cycle of the PWM wave supplied to its signal pin.
Also available in 360 degree rotation.
Wire Configuration:
| Wire Number | Wire Colour | Description |
| 1 | Brown | Ground wire connected to the ground of system |
| 2 | Red | Powers the motor typically +5V is used |
| 3 | Orange | PWM signal is given in through this wire to drive the motor |
- Operating Voltage is +5V typically
- Current: 2.5A (6V)
- Stall Torque: 9.4 kg/cm (at 4.8V)
- Maximum Stall Torque: 11 kg/cm (6V)
- Operating speed is 0.17 s/60°
- Gear Type: Metal
- Rotation : 0°- 360°
- Weight of motor : 55gm
- Package includes gear horns and screws
