MKS Robin nano V3.1 32Bit Control Board 3D Printer
- Easy-to-Access Firmware:The MKS Robin Nano V3 comes with open-source MKS GitHub and Marlin2.0 firmware for convenient updates.
- High-Performance Control Board:Equipped with a 32Bit 168Mhz F407 chip, the MKS Robin Nano V3 ensures seamless 3D printing control.
- Integrated TFT Screen:The board features a TFT screen, providing a clear interface for 3D printer settings and monitoring.

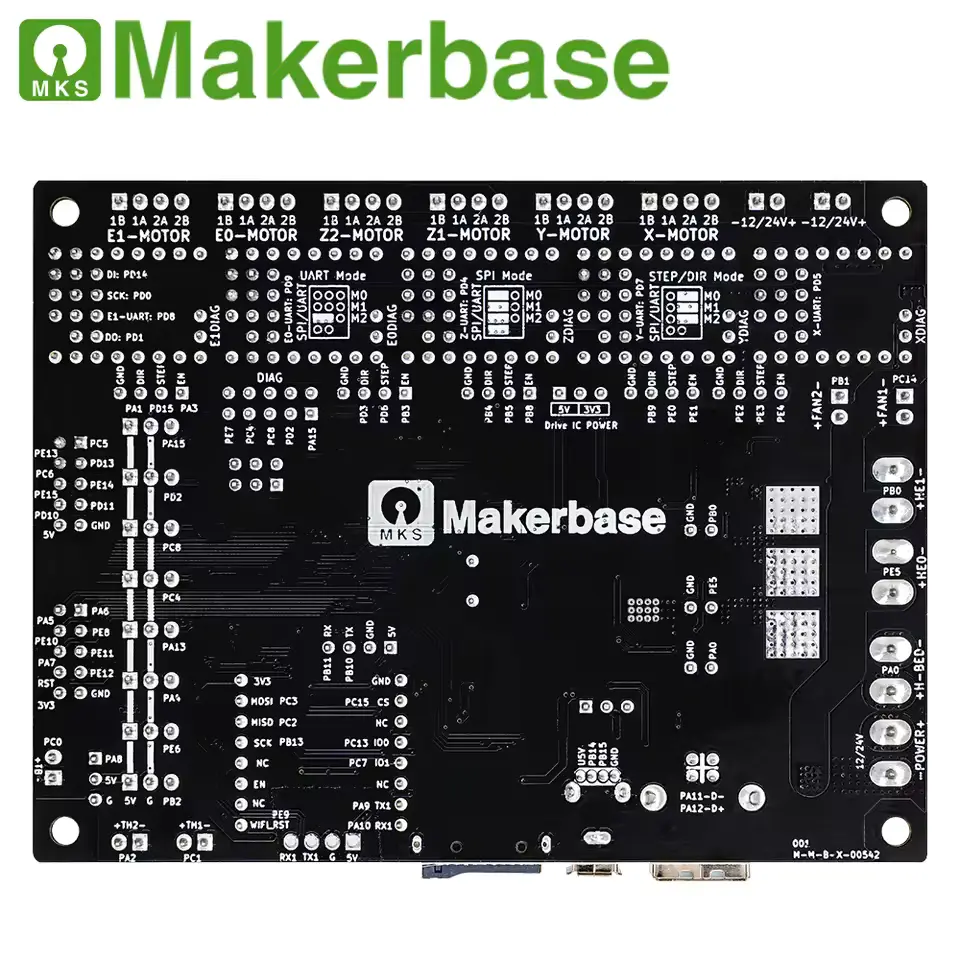

- Robust Pinout Design:Featuring a reliable Robin Nano V3.1 pinout, this board ensures secure connections in 3D printing setups.
In stock
₨ 9,500
In stock

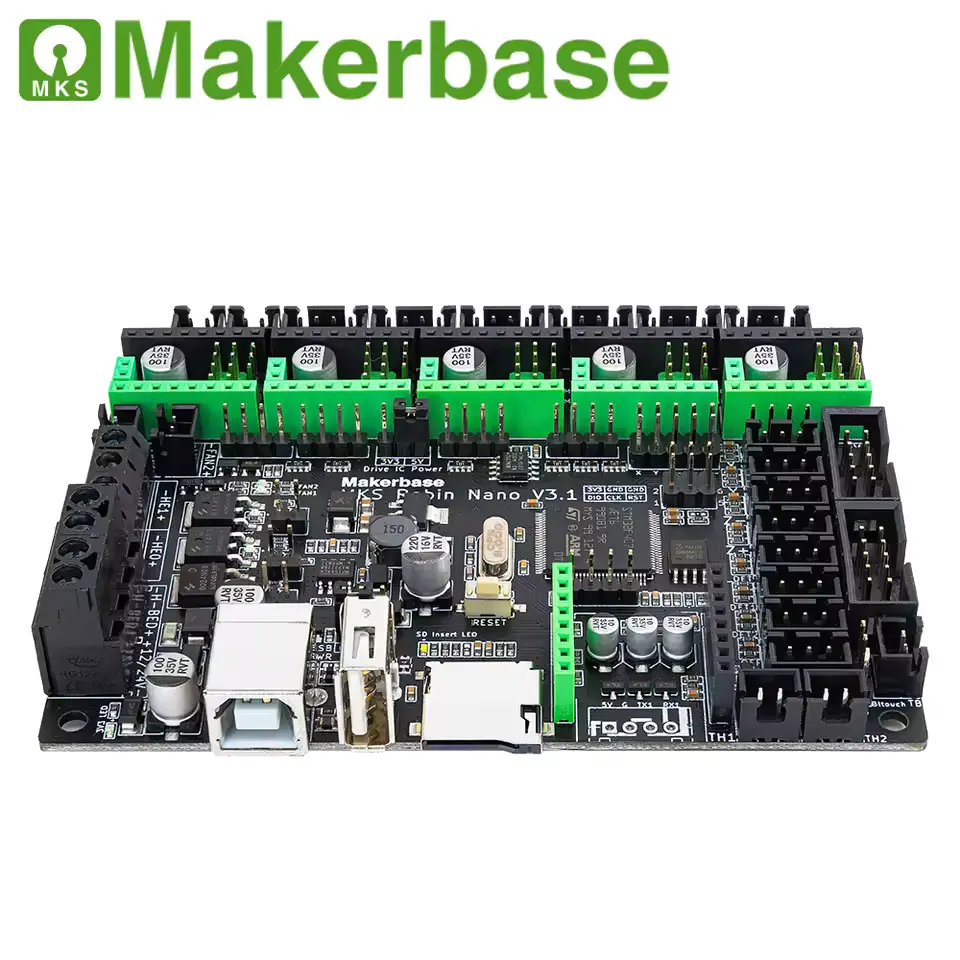

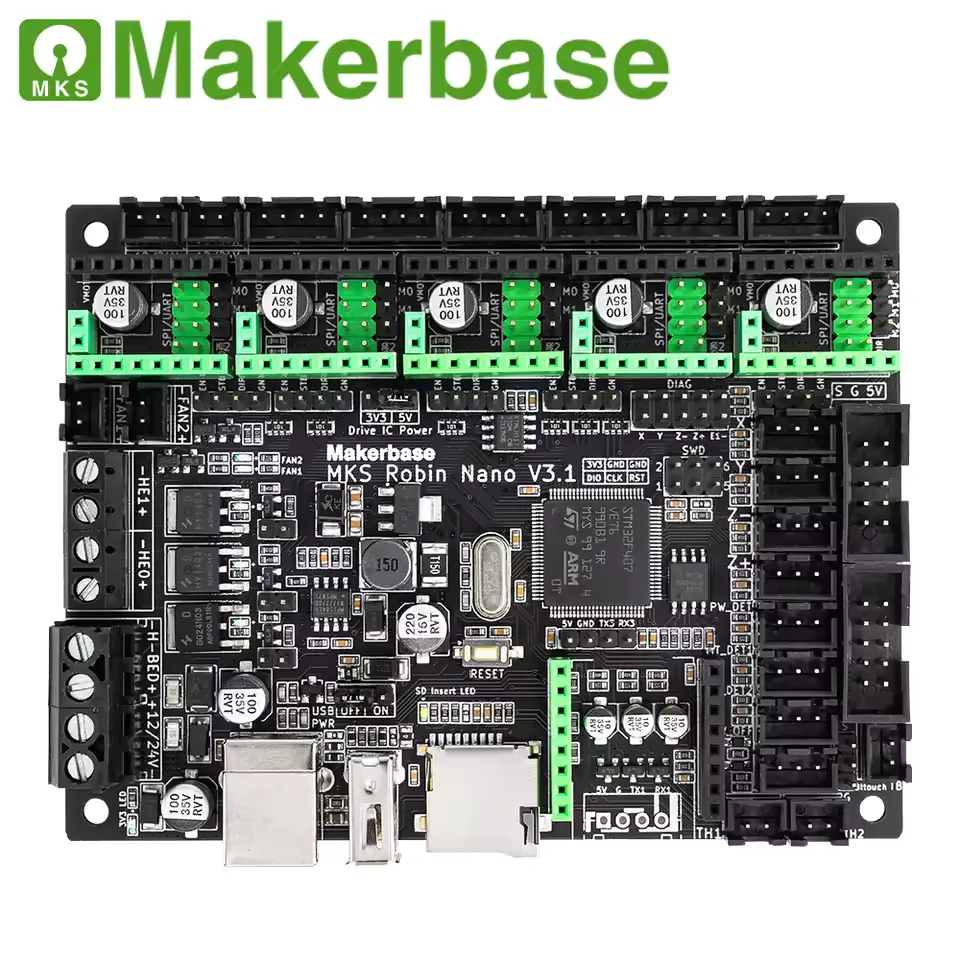

The Makerbase MKS Robin Nano V3.1 is a 32-bit control board designed for 3D printers (and by extension compatible CNC/laser setups) offering high performance, multi-axis capability, and flexible connectivity in a compact footprint.
It represents a substantial upgrade over earlier versions (e.g. V2.0) primarily via a more powerful microcontroller (MCU), improved memory and I/O support, and added features like USB-disk support, dual-fan control, WiFi-module support, and multi-axis motor control making it suitable for more complex or modern 3D printing machines.
Key Features
-
High-performance 32-bit MCU — The 168 MHz Cortex-M4 processor with FPU ensures smooth, responsive, and accurate control of stepper motors, heaters, and sensors.
-
Multi-axis & Multi-extruder ready — Up to 6 axes supported; dual Z-axis configuration and dual hotend (2 heating heads + bed) option makes the board suitable for complex, multi-extruder or advanced 3D printers.
-
Flexible firmware support — Works with popular firmwares (Marlin 2.x, Klipper, RepRap) giving users flexibility depending on printer requirements or personal preference.
-
Storage flexibility — Supports printing directly from SD card (TF), USB-disk, or via virtual USB (MSC/VCP), which simplifies workflow and reduces dependency on PC connection.
-
WiFi / Remote Printing ready — Supports connection of external WiFi module (USART1 + SPI2), enabling cloud printing, remote access or firmware updates — nice for advanced users or networked 3D printing setups.
-
Dual fan control & improved PWM outputs — Two independent PWM fan outputs allow for separate cooling for hotend, part cooling, or electronics — important for print quality and board cooling.
-
Robust protection & reliability — Power TVS protection and anti-interference improvements on sensor and MOS circuits help with stability and reduce risk of damage from voltage spikes or electrical noise.
-
Wide LCD/display compatibility — Compatible with many display types (touchscreen and classic LCD), enabling flexible UI/display options depending on your 3D printer or user preference.

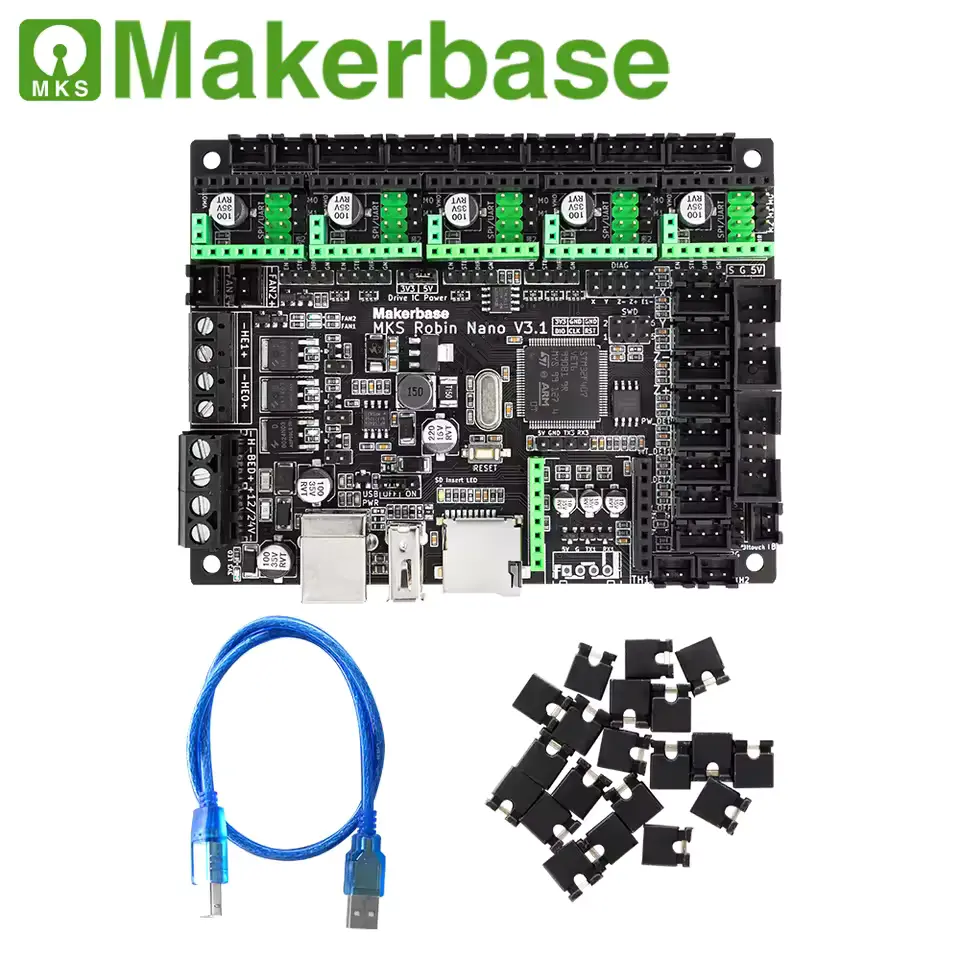

What’s Included
-
MKS Robin Nano V3.1 motherboard (core board)
-
USB programming cable and/or display connection cable
-
Jumper caps (for configuration)
MKS Robin Nano V3 Github:
https://github.com/makerbase-mks/MKS-Robin-Nano-V3.X
Firmware source:
https://github.com/makerbase-mks/Mks-Robin-Nano-Marlin2.0-Firmware
- MCU (Microcontroller): STM32F407VET6 (Cortex-M4 core, FPU), 168 MHz
- Memory: 512 KB Flash, 192 KB RAM
- EEPROM / SPI Flash: 4 KB EEPROM; 8 MB SPI Flash
- Supported Firmware: Marlin 2.0.x, Klipper, RepRapFirmware (MKS version)
- Motor / Axis Support: Up to 6-axis control (dual Z-axis share same driver)
- Heaters / Hotend support: 2 heating heads + heated bed support (hotbed) + 3 × NTC100K thermistor inputs
- Fans / PWM outputs: 2 × PWM fan channels; supports PWM TTL output
- Connectivity & Storage: Supports SD (TF) Card via SPI3, USB-disk, virtual USB device (USB MSC/VCP), UART serial communication (UART3)
- WiFi Connectivity: Supports external WiFi module (via USART1 + SPI2) for cloud printing / remote control
- LCD / Display Support: Compatible with various displays: e.g. MKS TS35, H43, MINI12864 V3, LCD12864, LCD2004, and other supported screens.
- Protection & Stability: Power TVS protection, improved anti-interference performance (Schottky diodes on temperature & MOS circuits) for better stability/reliability.
- Physical size: Approx. 110 mm × 84 mm; board-only thickness ~15–20 mm
