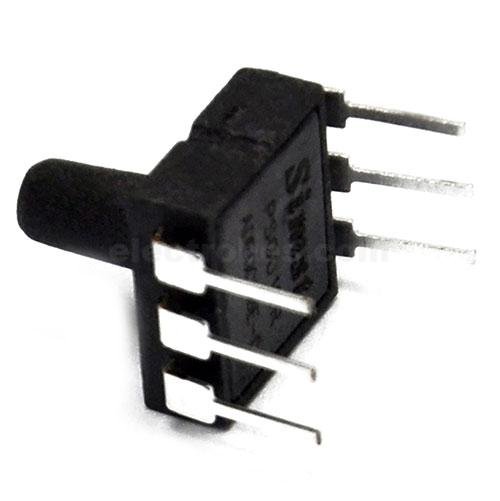

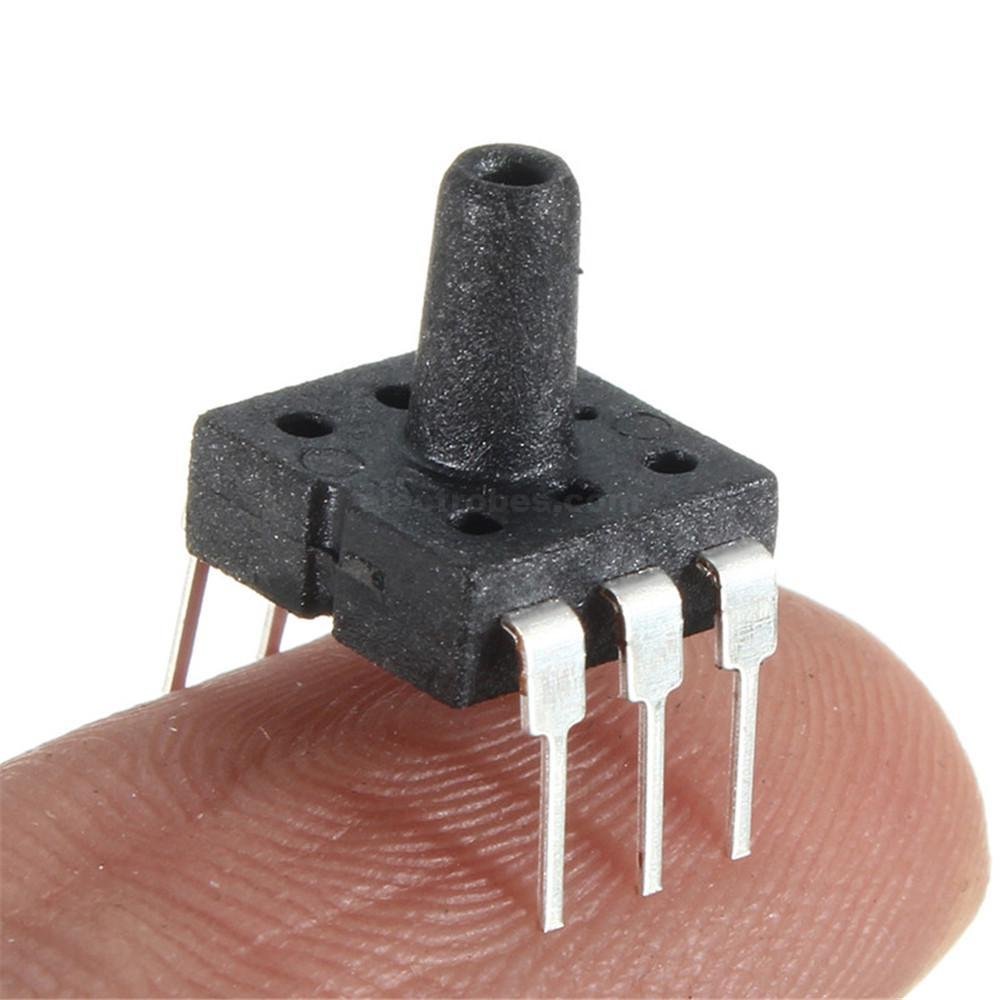

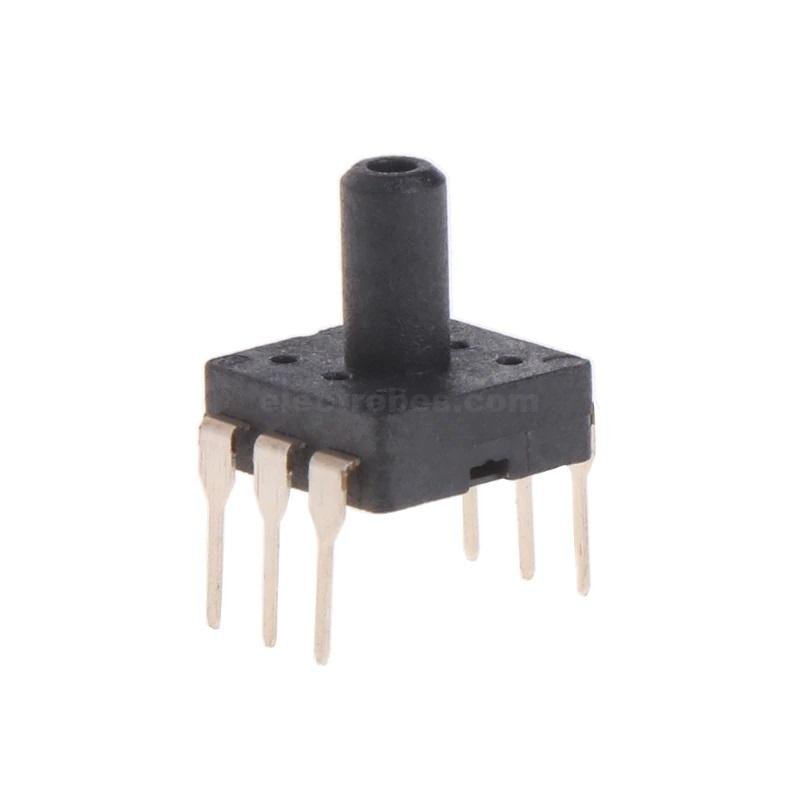

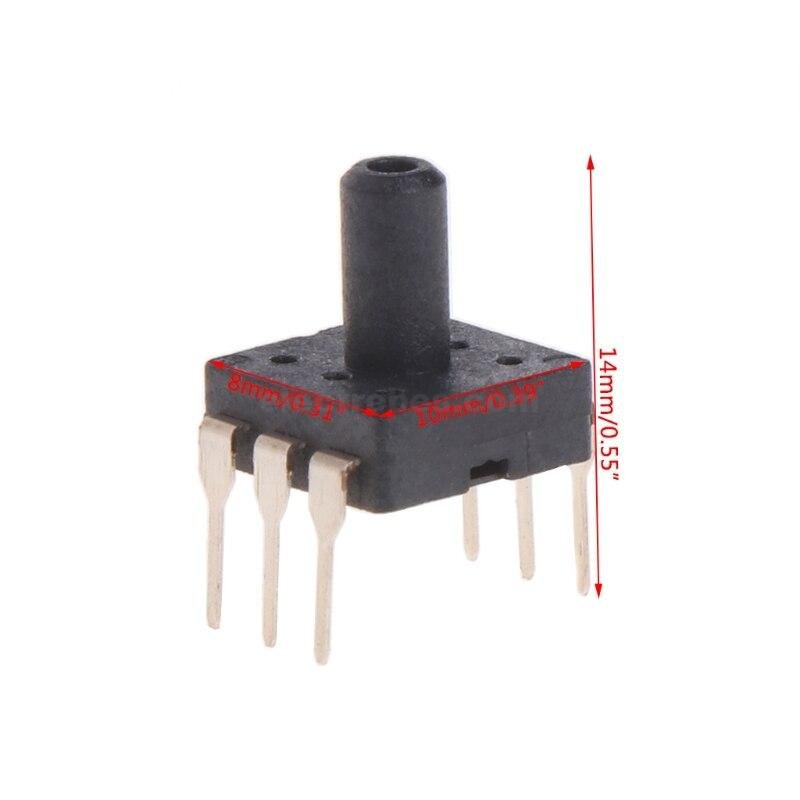

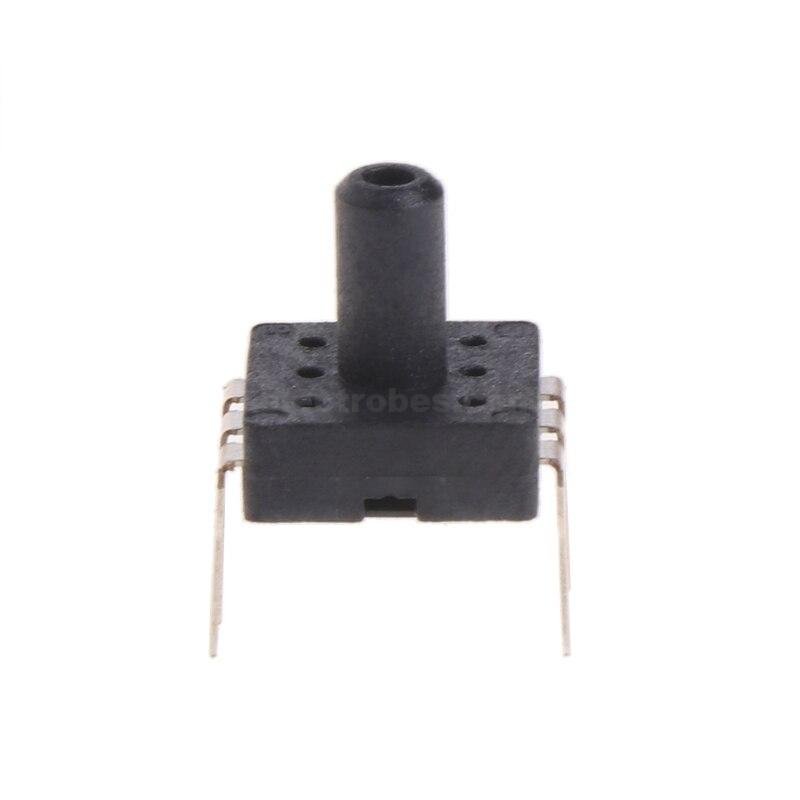

MPS20N0040D-D Sphygmomanometer Pressure Sensor 0-40kPa DIP-6 For Arduino

MPS20N0040D-D Sphygmomanometer Pressure Sensor 0-40kPa DIP-6 For Arduino

Compare
Availability:

In stock

 300

In stock

Features:

  • This DIP air pressure sensor is suitable for biomedical, meteorology and other fields. The core part is pressure sensor chip which is make by the MEMS pressure technology.
  • With wide applicable temperature range.
  • Easy to use and install.

Fits for the following types:

  • Automobile: tire pressure gauge, vehicle-mounted air pump, the MAP sensors, diagnostic equipment, automotive sensors.
  • Industry: air brake switch, portable pressure gauge, such as digital pressure gauge, environment monitor.
  • Medical equipment: patient monitoring and diagnostic equipment, such as blood pressure monitor, medical instrument, and monitor.

Package Includes:

1 x DIP Air Pressure Sensor

Note:

Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Please allow 1-3mm slight deviation due to manual measurement. Thank you!

  • Measuring medium: air
  • Measuring range: 0-40kPa
  • Operating temperature range: -40 ° ~ + 125 °
  • Storage Temperature: -40 ° ~ + 150 °
  • Humidity: (50% ± 10%) RH
  • Ambient temperature: (25 ± 1) °
  • Medium temperature: (25 ± 1) °
  • Output impedance: 4kΩ ~ 6kΩ
  • Zero output: -15mV~+15mV
  • Hysteresis: +-0.7%F.S.
  • Power supply: ≤10V DC or ≤2.0mA DC
  • Insulation resistance: 100MΩ, 100VDC
