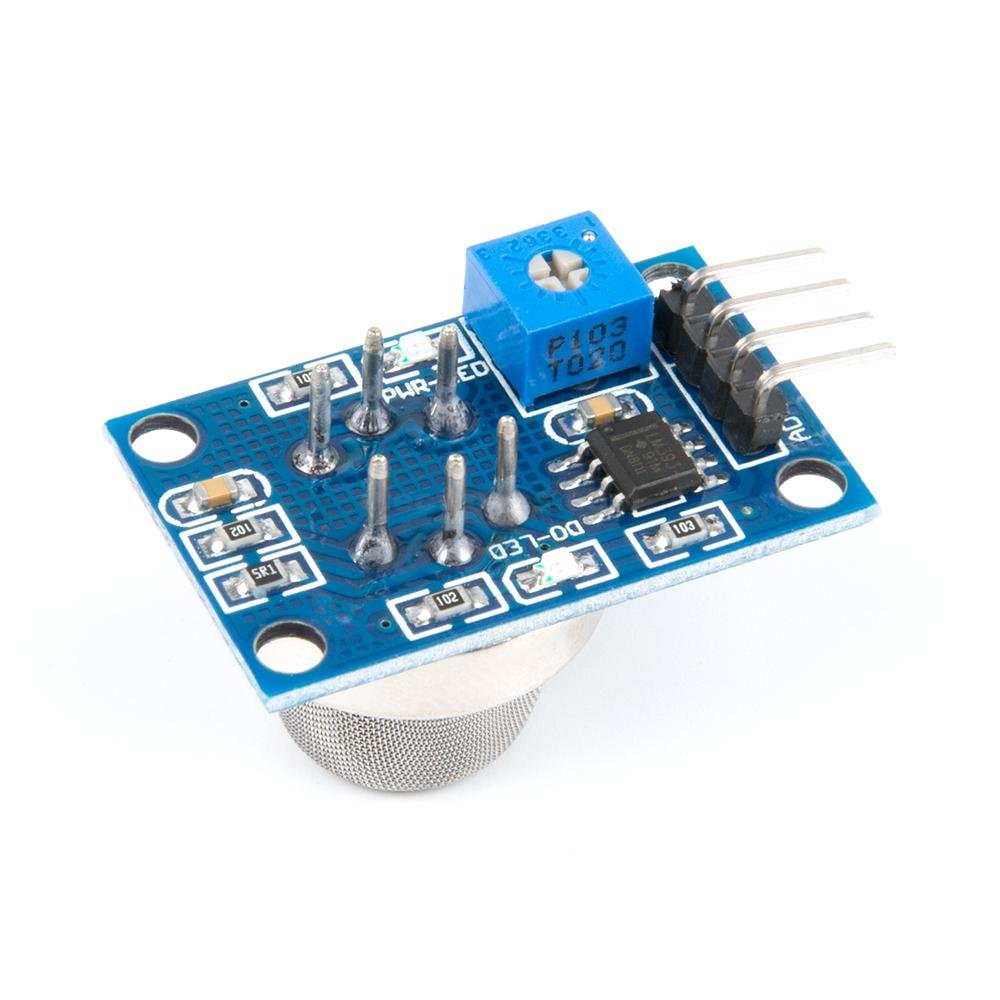

MQ-135 Air Quality Gas Sensor Module

MQ-135 Air Quality Gas Sensor Module Output voltage boosts along with the concentration of the measured gases increases. Buy online in Pakistan at Electrobes.

Availability:

In stock

 320

In stock

MQ-135 Air Quality Gas Sensor Module

Features:

  • Sensitive for benzene, alcohol, smoke
  • Output voltage boosts along with the concentration of the measured gases increases
  • Fast response and recovery
  • Adjustable sensitivity
  • Signal output indicator

Pinouts:

Pin Configuration:

Pin No: Pin Name: Description
For Module
1 Vcc Used to power the sensor, Generally the operating voltage is +5V.
2 Ground Used to connect the module to system ground.
3 Digital Out You can also use this sensor to get digital output from this pin, by setting a threshold value using the potentiometer.
4 Analog Out This pin outputs 0-5V analog voltage based on the intensity of the gas.
For Sensor
1 H -Pins Out of the two H pins, one pin is connected to supply and the other to ground
2 A-Pins The A pins and B pins are interchangeable. These pins will be tied to the Supply voltage.
3 B-Pins
  1. A pins and B pins are interchangeable. One pin will act as output while the other will be pulled to ground.

MQ-135 Air Quality Gas Sensor alcohol benzene environment contamination sensor Module for arduino raspberry pi at best price online in islamabad rawalpindi lahore peshawar faisalabad karachi hyderabad quetta wah taxila Pakistanat best price online in islamabad rawalpindi lahore peshawar faisalabad karachi hyderabad quetta wah taxila Pakistan MQ-135 Air Quality Gas Sensor alcohol benzene environment contamination sensor Module for arduino raspberry pi at best price online in islamabad rawalpindi lahore peshawar faisalabad karachi hyderabad quetta wah taxila Pakistanat best price online in islamabad rawalpindi lahore peshawar faisalabad karachi hyderabad quetta wah taxila Pakistan MQ-135 Air Quality Gas Sensor alcohol benzene environment contamination sensor Module for arduino raspberry pi at best price online in islamabad rawalpindi lahore peshawar faisalabad karachi hyderabad quetta wah taxila Pakistanat best price online in islamabad rawalpindi lahore peshawar faisalabad karachi hyderabad quetta wah taxila Pakistan

  • Wide detecting scope
  • Fast response and High sensitivity
  • Stable and long life
  • Operating Voltage : +5V
  • Detect/Measure NH3, NOx, Alcohol, Benzene, Smoke, CO2, etc.
  • Sensitive for benzene, alcohol, smoke
  • Analog output voltage: 0V to 5V
  • Digital output voltage: 0V or 5V (TTL Logic)
  • Preheat duration 20 seconds
  • Can be used as a Digital or analog sensor
  • The Sensitivity of Digital pin can be varied using the potentiometer
