NEMA23 24V Stepper motor 1.8/step with GT2 Pulley - Used

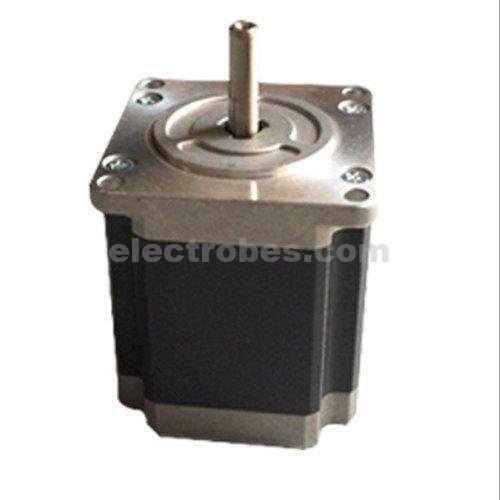

NEMA23 24V Stepper motor 1.8/step with GT2 Pulley - Used - Image 2
NEMA23 24V Stepper motor 1.8/step with GT2 Pulley - Used - Image 3
NEMA23 24V Stepper motor 1.8/step with GT2 Pulley - Used - Image 4
NEMA23 24V Stepper motor 1.8/step with GT2 Pulley - Used - Image 5
NEMA23 24V Stepper motor 1.8/step with GT2 Pulley - Used - Image 6
,

NEMA23 24V Stepper motor 1.8/step with GT2 Pulley – Used

  • Unipolar stepping motor (can be configured into bipolar)
  • Long life
  • More Accurate
  • Step angle = 1.80deg/ phase
  • Lead wire size AWG #22
  • Number of leads = 6 cables
  • S3M timing pulley diameter = 26mm
  • Current Ratings: 1.8A/ 2A/ 2.2A/ 2.5A comes in different amperage
Compare

₨ 1,600 ₨ 2,000

Add to Wishlist
Compare

NEMA23 6 Wire Bipolar Stepper Motor NEMA23 Stepper Motor NEMA 23 Stepper Motor is very useful in the various application especially which demands low speed with high precision Many machines such as 3D Printers CNC Router and Mills Camera Platforms XYZ Plotters etc. Nema23 6 wire Bipolar Stepper

Wiring (cables) :

Tips : this unipolar wiring, you can use as Bipolar wiring by using ORANGE-BLUE and RED-YELLOW cable.

SKU: 0904 Categories: , Tags: , , , , , , , ,
  • Nominal Voltage = 24 Volt DC (-0.3 to 7 Volt DC/ phase)
  • Current = 0.8 A/ phase
  • Resistance = 8.6 Ohm/ phase
  • Inductance = 19 mH/ phase
  • Holding torque = 13Kg.cm
  • Rotor-intertia = 360 g-cm2
  • Weight = 1000g
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 3.0Nm(425oz.in)
  • Voltage: 3.78V
  • Phase Resistance: 0.9ohms
