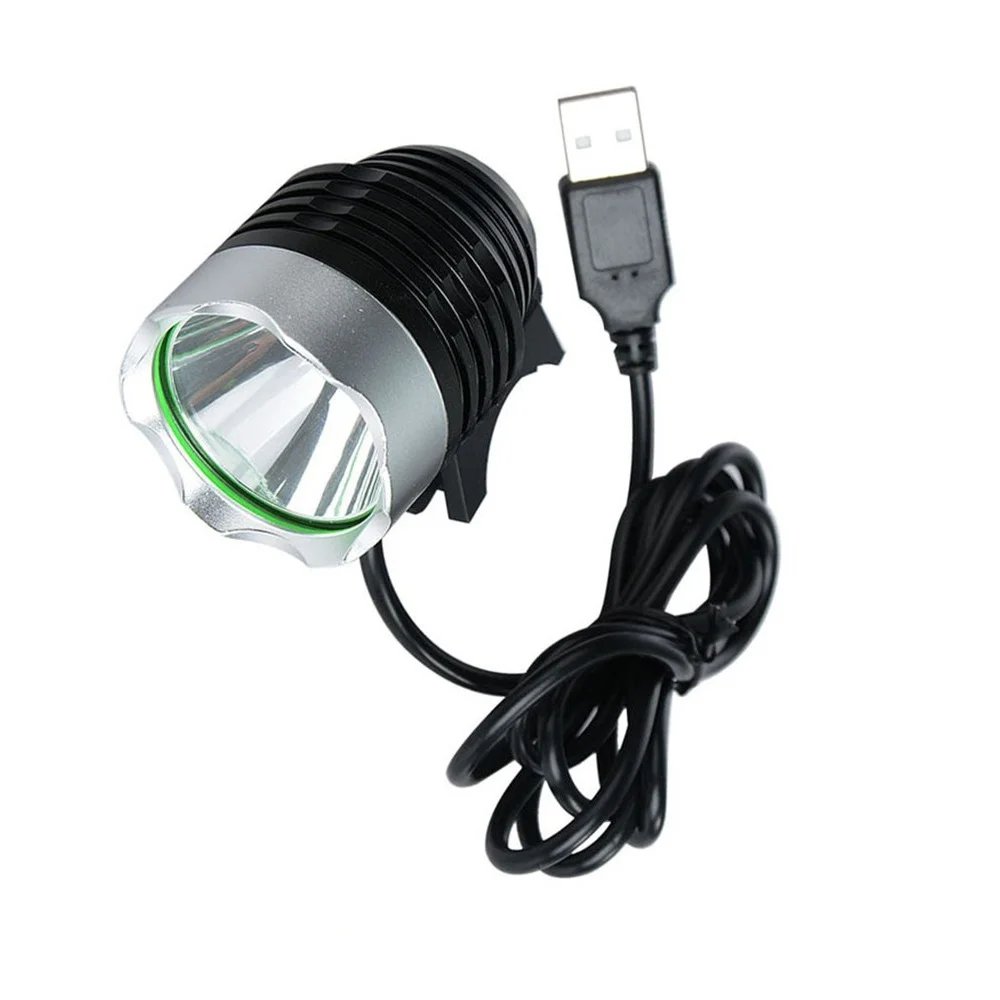

RELIFE RL-014 USB UV Curing Lamp for mobile repairing, PCB manufacturing, 3D prints curing

Features:

• The RL-014 is a compact UV-curing lamp designed for fast curing of UV adhesives, resins, optical glues, “green oil”, ink and similar materials.

• It uses a USB interface (5 V supply) which allows powering from a PC USB port, power-bank, charger etc.

• It has a dual-core lamp design (two high-power lamp beads) for higher output and faster cure.

• It offers 3 adjustable output modes/gears: strong light, low light, and flash/blink mode (for different curing needs).

• It claims “fast curing in about 10 seconds” under suitable conditions.

• Additional design features: gem-quality lenses, multi-segment focusing halo, waterproof rubber ring, silicone switch, grid type rapid cooling structure to reduce heat and extend lifespan.

• Suitable for use in mobile-repair, electronics glue curing, optical glue, resin glue, ink, money checking/fluorescent agent detection in some versions.

Specifications:

Here are the typical specs reported for the RL-014 (non-timer version) model:

• Model: RL-014
• Power Supply / Voltage: 5 V USB interface
• Current: ~1400 mA (1.4 A)
• Power: ~5 W
• Wavelength / Band: ~395 nm (UV-A region)
• Lamp beads manufacturer: LG (reported)
• Product size: 58 mm × 54 mm × 42 mm (approx)
• Net weight: ~100 g; Gross weight: ~120 g
• Power cord length: about 95 mm (for the USB cable)

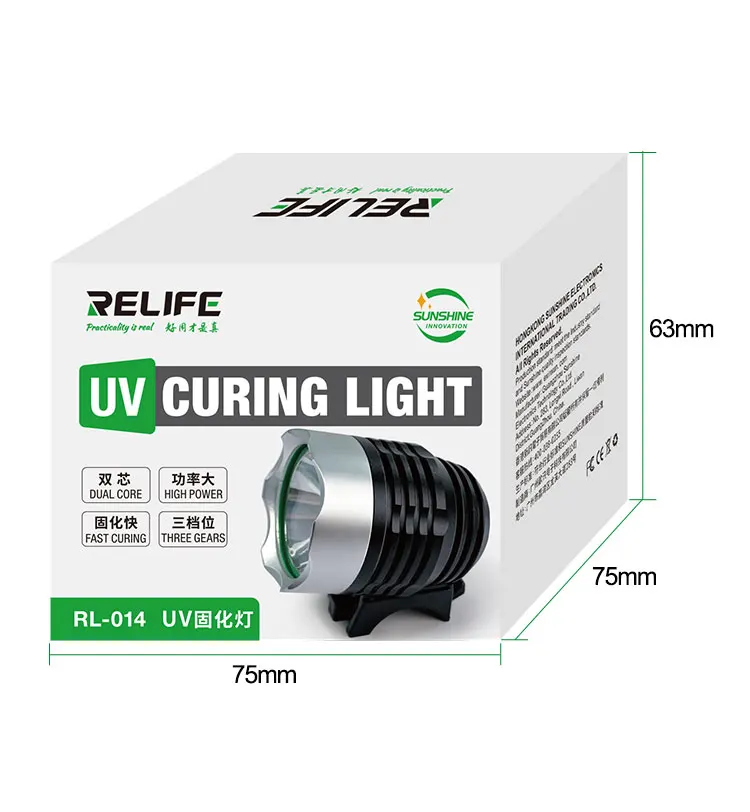

• Package size: ~75 × 75 × 63 mm

Package content:

1 x UV Lamp

1 x user manual
