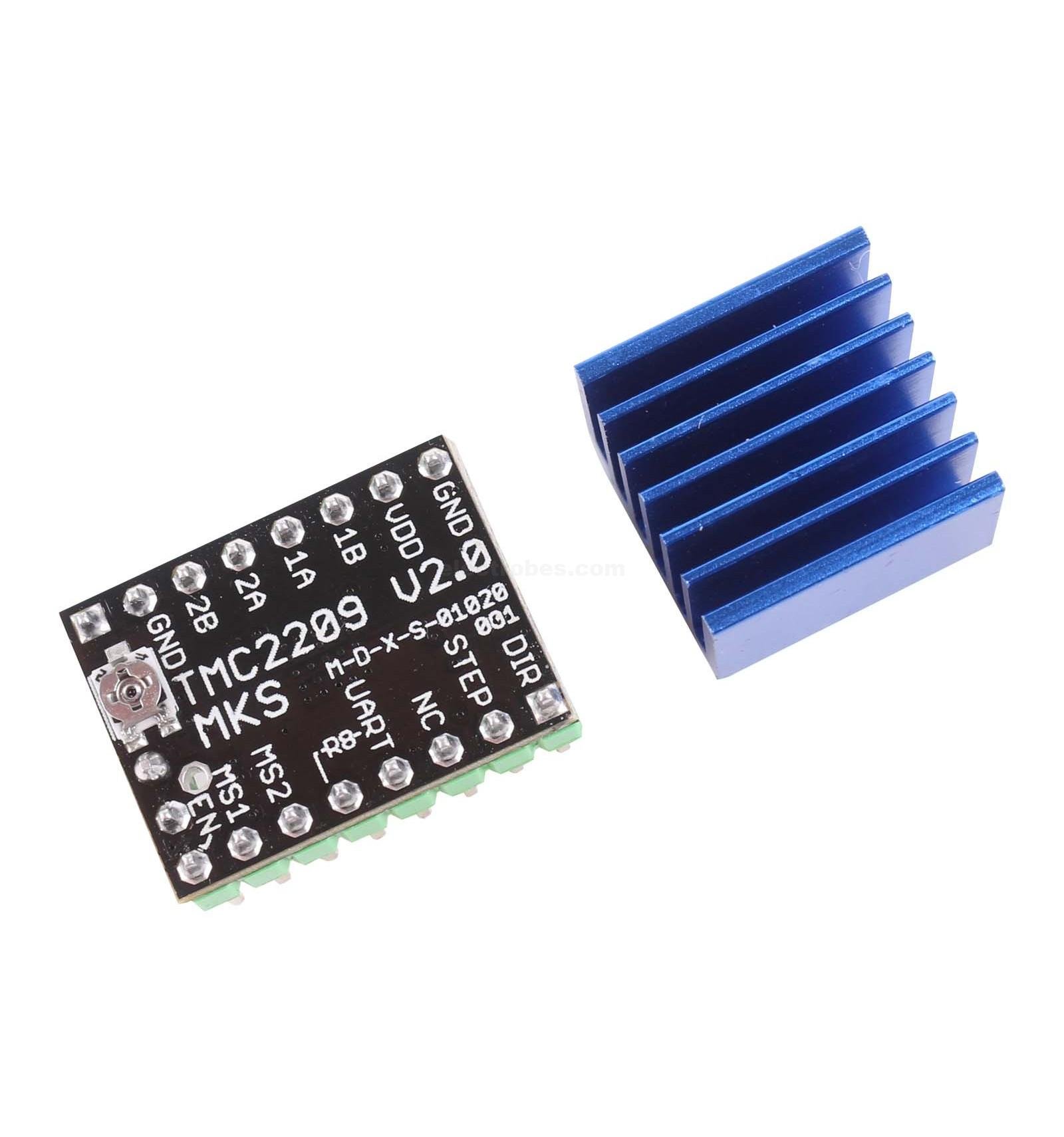

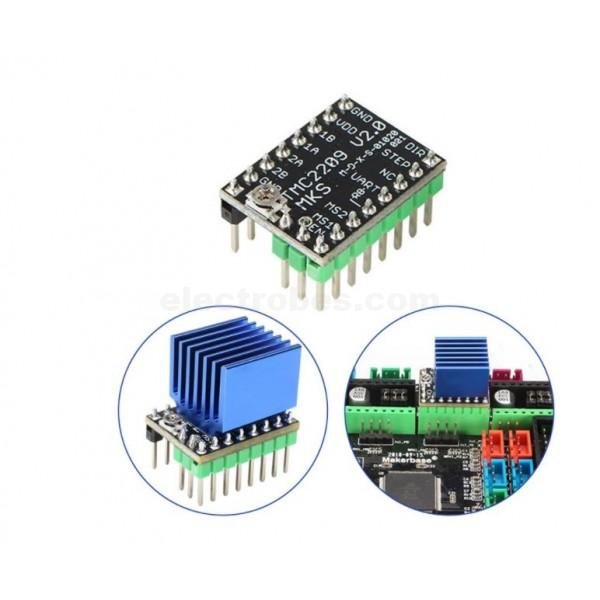

MKS TMC2209 V2.0 Stepper Motor Driver for Silent Mainboard of 3D Printer
Makerbase MKS TMC2209 V2.0 Stepper Motor Driver Stepstick Mute 3D Printer Part with Heatsink Works with MKS Control Board Robin E3D Nano V3 for Creality Ender 3D Printers Upgrade Mainboard
In stock
₨ 1,250 ₨ 1,300
In stock
MKS TMC2209 V2.0 Stepper Motor Driver for Silent Mainboard of 3D Printer
The TMC2209 has all the functions of the TMC2208, it can be replaced directly. The TMC2209 have a better heat dissipation, support a higher current and the Sensorless Homing version.
Features:
- Ultra quiet.
- Great heat dissipation.
- Compatible with Sensorless homing function.
- Supports UART mode by configuring jumpers.
- It is compatible with popular mainboards like SKR , MKS, Ramps 1.4 mainboard.
Specifications:
- Default current: 1.25A
- Maximum current: 2.5A
- Logic voltage: 3.3 / 5 V
- Input voltage: 5.5 / 28 V
- Microstep: 1/256
- Mode: Step / dir – UART
Microsteps:
| M0 | M1 | Paso |
| GND | GND | 8 |
| VCC_IO | GND | 32 |
| GND | VCC_IO | 64 |
| VCC_IO | VCC_IO | 16 |
Notice: Pay attention to the orientation of the connection, if it is connected wrongly, they can be damaged.
Open Source File/Instructions:
Get more instructions from the source Here
- Model: MKS TMC 2209 – V2.0
- Default current:0.88a
- Recommend current:1.72a(at most)
- Max current:2a
- Logic voltage:3.3v/5v
- Input voltage:5.5v-28v
- Micro step: up to 1/256
