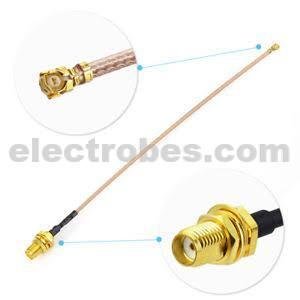

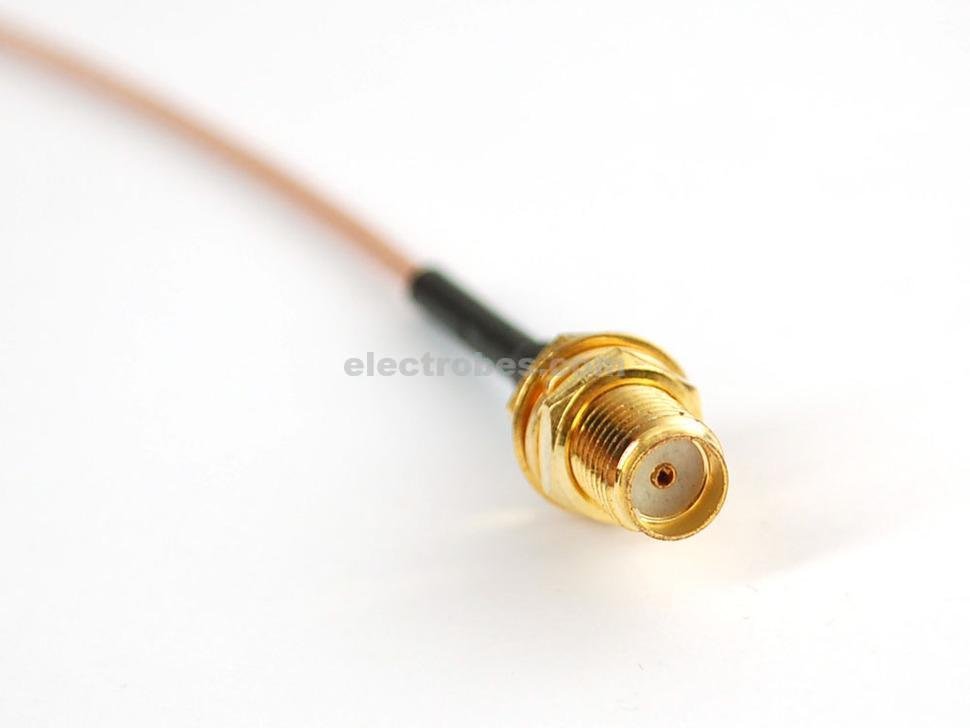

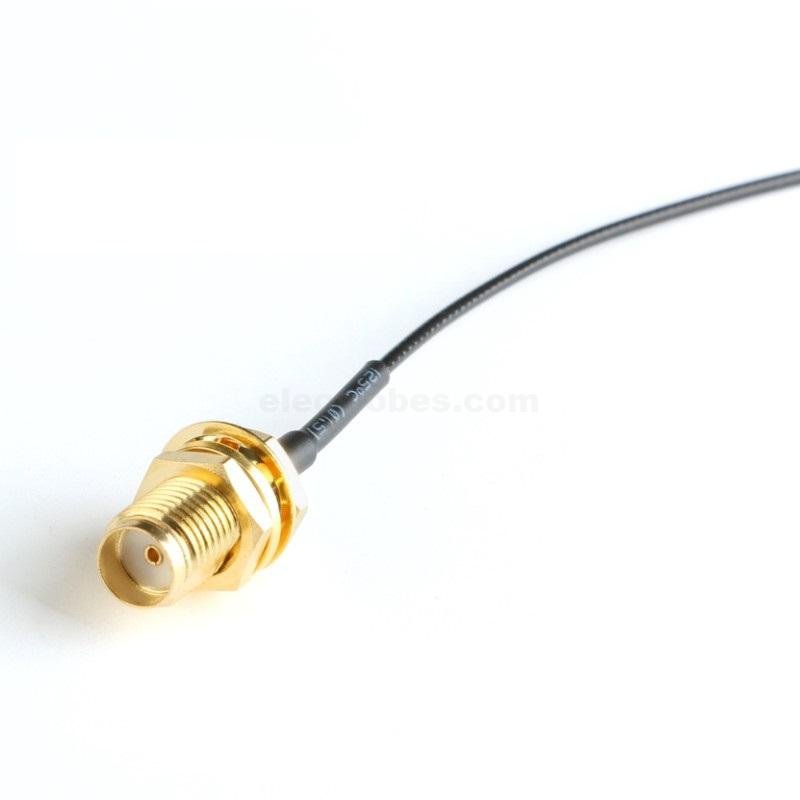

SMA Female Jack To IPX / IPEX / U.FL RF Pigtail Connecting Cable for GSM / WiFi Antenna
SMA Female Jack To IPX / IPEX / U.FL RF Pigtail Connecting Cable for GSM / WiFi Antenna
Availability:
In stock
₨ 250 ₨ 350
In stock
SMA Female Jack To IPX / IPEX / U.FL RF Pigtail Connecting Cable for GSM / WiFi Antenna
Features:
- SMA Female jack to IPX IPEX I-PEX cable
- IPEX (IPX) Connector is equivalent of U.FL connector.
- Applications include WIFI/GSM/3G/GPS/4G
- Gold Plated Connectors
- Frequency up to 6GHz
- Terminated with 1.13mm coax cable.
- Characteristic Impedance: 50 ohm
- Connection End A : IPEX IPX13
- Connection End B : SMA Female Hole-Outer Thread
- Approx. Length : 0.2m
- Color: Black
Package Content:
- 1 x SMA Female To IPX / IPEX / U.FL RF Pigtail Connecting Cable for GSM / WiFi Antenna
- 50 Ohm Coaxial cable for data transfer
- Gold-plated contacts for best signal transmission
- Stranded center conductor to increase the flexibility
- Insulation: PTFE (Teflon)
- Jacket Type: FEP (Fluorinated Ethylene-Propylene)
- Loss @ 100 MHz: 0.262 dB/m
- Loss @ 400 MHz: 0.531 dB/m
