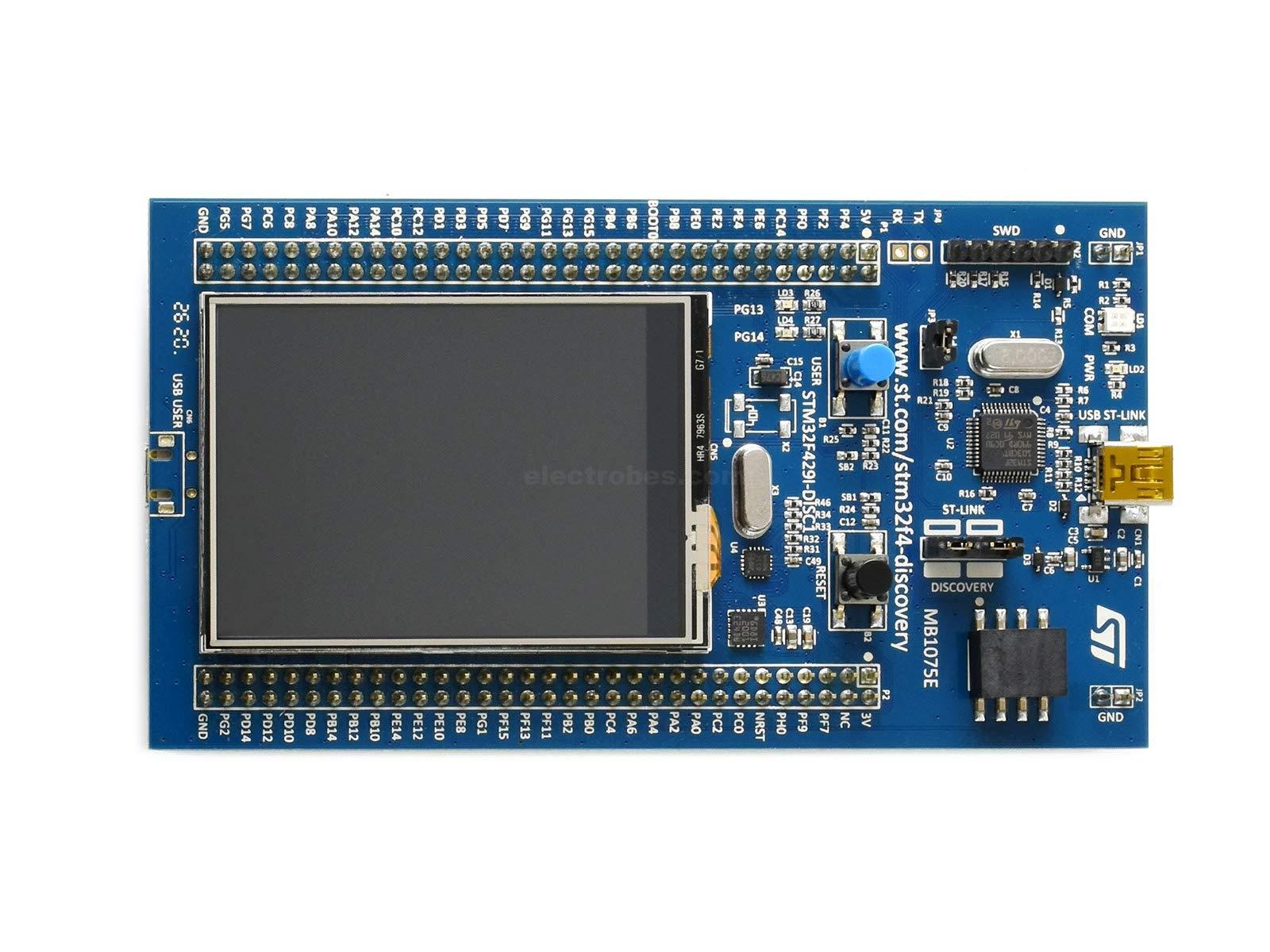

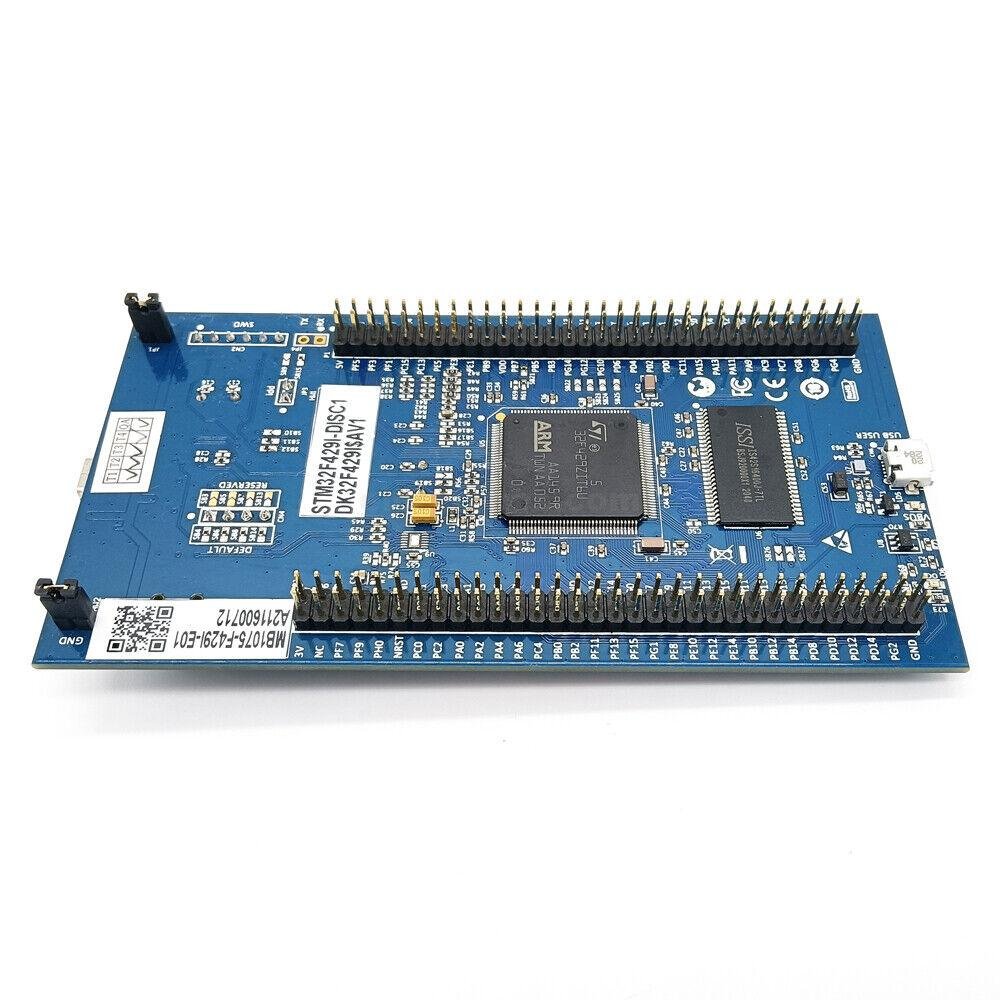

STM32F429I-DISC1 Discovery Kit STM32F4 Series Touch Screen STM32F429ZIT6 STM32 Development Board
Original STM32F429I-DISC1 Discovery Kit 32 bit MCU, STM32F4 Series with 2.4 inch Touch Screen and STM32F429ZIT6 High performance chip. Buy STM32 Development Board in Pakistan
Availability:
In stock
₨ 14,900
In stock
"STM32F429I-DISC1 Discovery Kit STM32F4 Series Touch Screen STM32F429ZIT6 STM32 Development Board" added to wishlist
Please login to continue
Description
With STM32F429 Discovery kit, users can easily develop applications with the STM32F429 high-performance MCUs with ARM®Cortex®-M4 core.

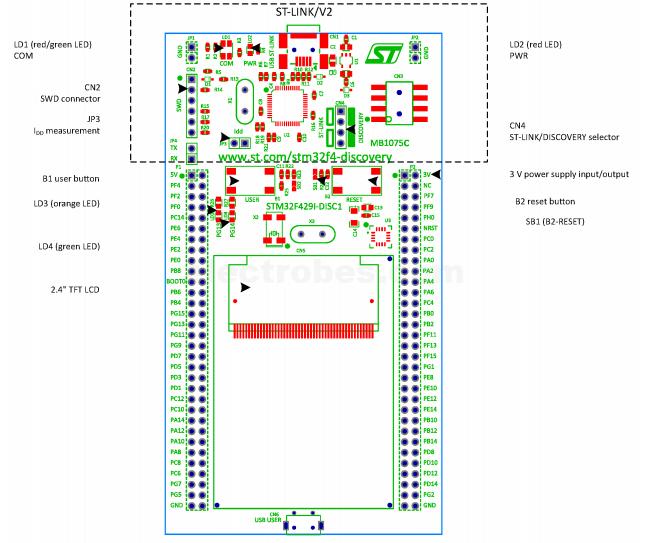

It has an on-board ST-LINK/V2-B embedded debug tool, a 2.4″ QVGA TFT LCD, an ST MEMS gyroscope, an external 64-Mbit SDRAM, a USB OTG micro-AB connector, LEDs and push-buttons.
Key Features
- STM32F429ZIT6 microcontroller featuring 2 Mbytes of Flash memory, 256 Kbytes of RAM in an LQFP144 package
- On-board ST-LINK/V2-B
- mbed™ -enabled (mbed.org)
-
USB functions:
- debug port
- virtual COM port
- mass storage
- Board power supply: through the USB bus or from an external 3 V or 5 V supply voltage
- 2.4″ QVGA TFT LCD
- 64-Mbit SDRAM
- L3GD20, ST MEMS motion sensor 3-axis digital output gyroscope
-
Six LEDs:
- LD1 (red/green) for USB communication
- LD2 (red) for 3.3 V power-on
- Two user LEDs: LD3 (green), LD4 (red)
- Two USB OTG LEDs: LD5 (green) VBUS and LD6 (red) OC (over-current)
- Two push-buttons (user and reset)
- USB OTG with micro-AB connector
- Extension header for LQFP144 I/Os for a quick connection to the prototyping board and an easy probing
- Comprehensive free software including a variety of examples, part
Documents:
- STM32F429I-DISCO gerber files
- STM32F429I-DISCO BOM
- Discovery kit with STM32F429ZI MCU user manual
- Getting started with STM32 MCU Discovery Kits software development tools
- Getting started with STM32F429 Discovery software development tools
Software:
- DRA-TouchGFX (TouchGFX graphics framework for STM32)
- STM32CubeF4
- STSW-STM32138
- STSW-STM32141
- STSW-STM32142
- TARA-Embd-Wizard
- X-CUBE-PARAL-COM
Product Description:
- STM32F429ZIT6 microcontroller featuring 2 Mbytes of Flash memory, 256 Kbytes of RAM in an LQFP144 package
- On-board ST-LINK/V2-B
- USB functions: debug port, virtual COM port, mass storage
- Board power supply: through the USB bus or from an external 3 V or 5 V supply voltage
- 2.4″ QVGA TFT LCD
- 64-Mbit SDRAM
- L3GD20, ST MEMS motion sensor 3-axis digital output gyroscope
- Six LEDs: LD1 (red/green) for USB communication, LD2 (red) for 3.3 V power-on
- Two user LEDs: LD3 (green), LD4 (red)
- Two USB OTG LEDs: LD5 (green) VBUS and LD6 (red) OC (over-current)
- Two push-buttons (user and reset)
- USB OTG with micro-AB connector
- Extension header for LQFP144 I/Os for a quick connection to the prototyping board and an easy probing
- Comprehensive free software including a variety of examples, part of STM32CubeF4 package or STSW-STM32138 for legacy standard libraries usage
