TB6600 Single-Axis 4A Stepper Motor Driver Controller 16 Micro-Step
CompareIn stock
₨ 1,600 ₨ 1,800
In stock

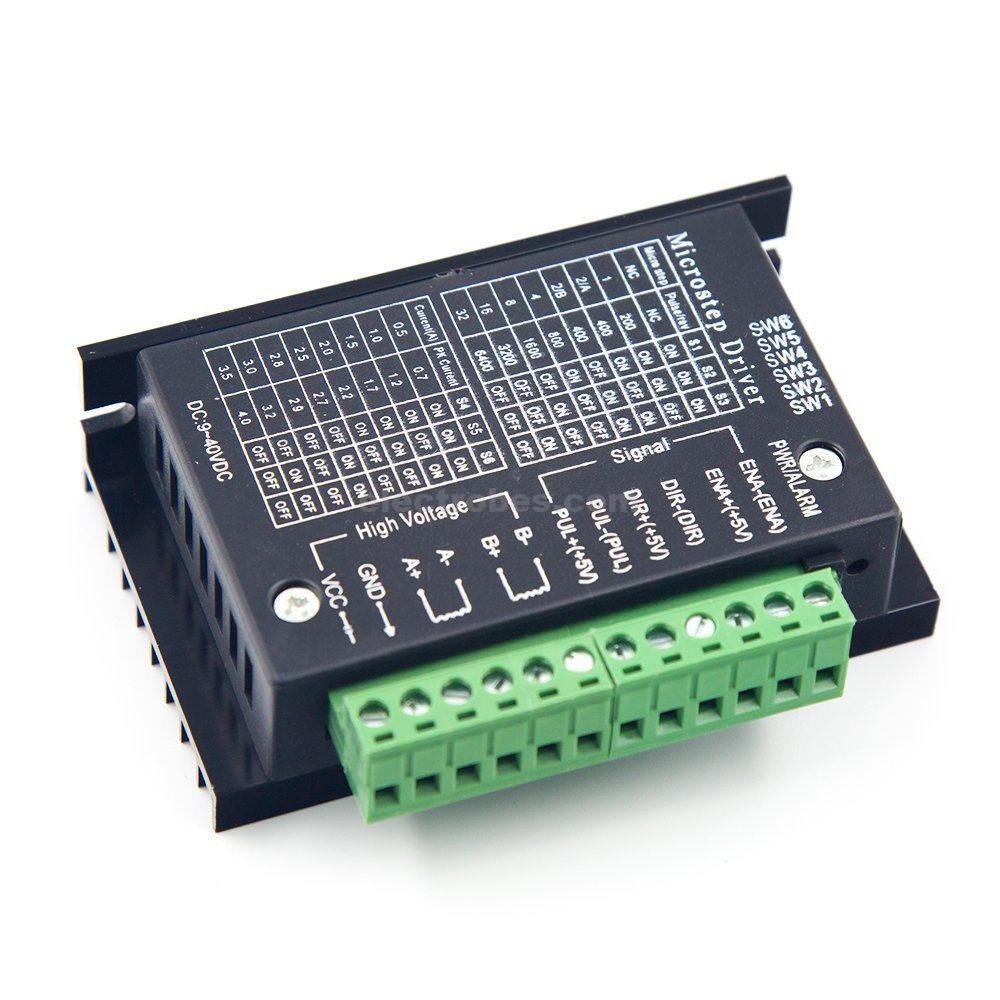

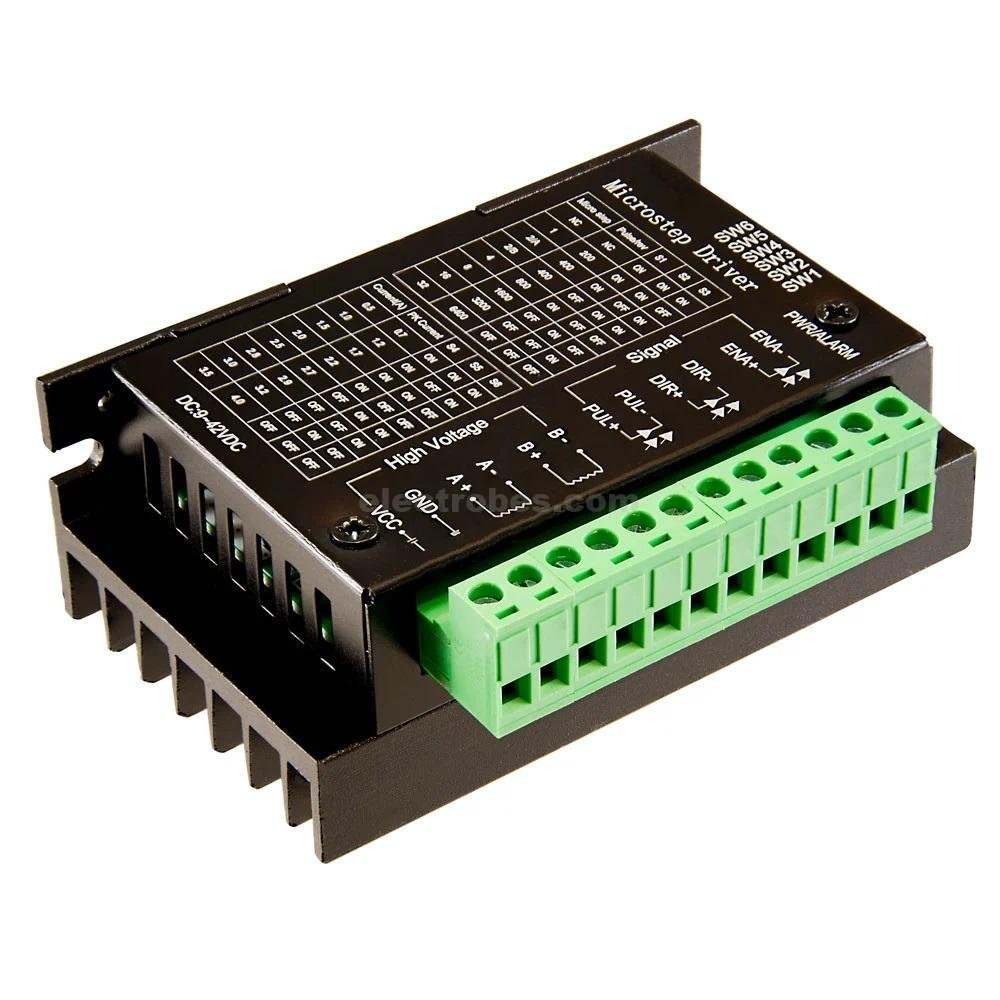

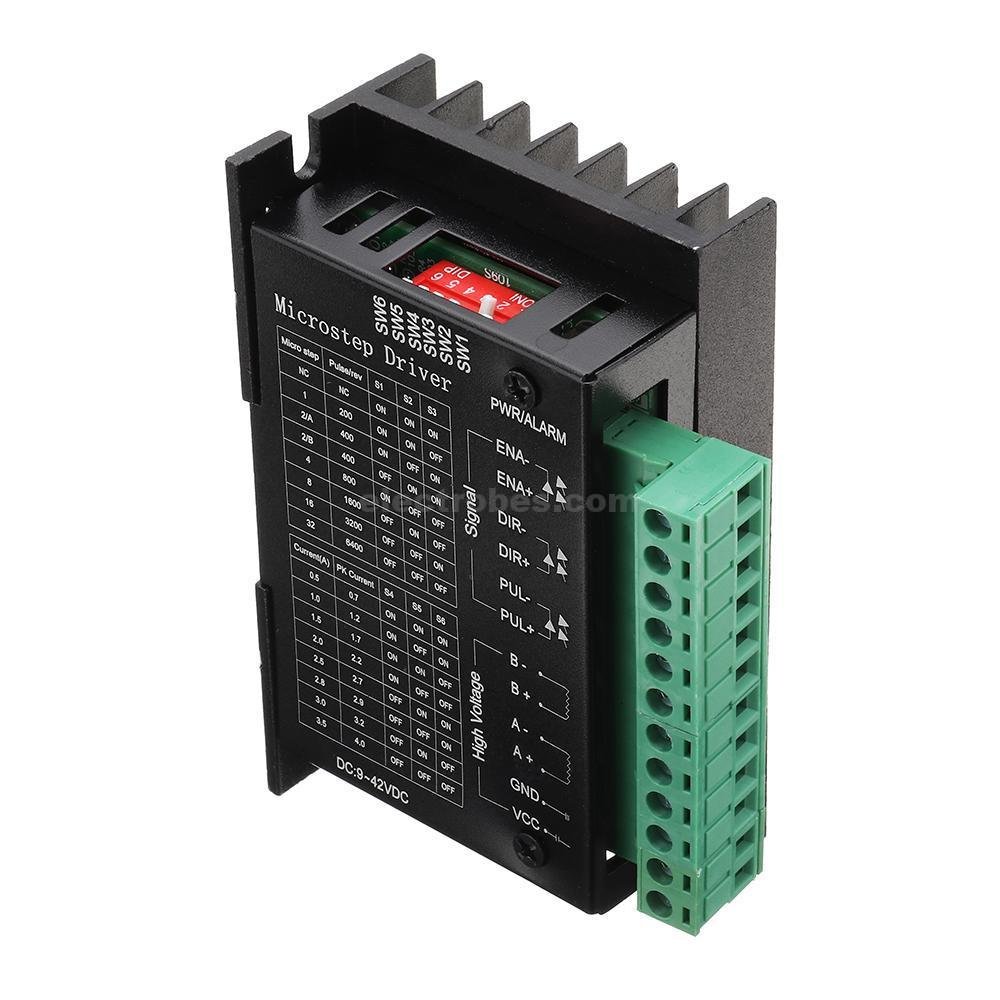

TB6600 4A Stepper Motor Driver Controller Single-Axis 16 Micro-Step
The TB6600 Stepper Motor Driver is a professional two-phase stepper motor driver. It supports speed and direction control. You can set its micro step and output current with 6 DIP switches. There are 7 kinds of micro steps (1, 2 / A, 2 / B, 4, 8, 16) and 8 kinds of current control (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A) in all. All signal terminals adopt high-speed optocoupler isolation, enhancing its anti-high-frequency interference ability.
Features:
- Supports 8 levels of current control
- Supports 7 levels of micro step adjustment
- Interfaces adopt high-speed optocoupler isolation
- Automatic semi-flow to reduce heat
- Large area heat sink
- Anti-high-frequency interference ability
- Input anti-reverse protection
- Overheat, over current and short circuit protection
Application:
Suitable for a variety of small and medium sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser typesetting, plotters, CNC machine tools, handling the devices.
Package Content:
1 x TB6600 stepper motor driver
- Input Current: 0-5.0A
- Output Current: 0.5-4.0A
- Power (MAX): 160W
- Micro Step: 1, 2/A, 2/B, 4, 8, 16
- Temperature: -10～45℃
- Humidity: No Condensation
- Weight: 0.2 kg
- Dimensions: 96x56x33 mm
