DIP Transistors, Discrete Electronic Components, Transistors Compare

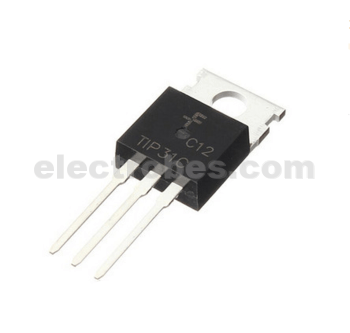

TIP31C Bipolar NPN Transistor 100V 3A TO-220
The TIP31C is a standard NPN bipolar junction transistor that is often used for medium power
applications. A bipolar junction transistor (BJT) is a three terminal device that is allows for
amplification or switching applications. BJTs consists of three differently doped semiconductor regions,
the collector region, the base region, and the emitter region. TIP31C TRANSISTOR has many replacements like TIP31A, 2N6122, TIP31B, MJE340K, SW4F013. To buy online in Pakistan visit electrobes-com-827299.hostingersite.com.
Availability:
In stock
₨ 40 ₨ 45
In stock
Pin configuration (Pinout) of the TIP31
- Type – NPN
- Collector-Emitter Voltage: 40 V
- Collector-Base Voltage: 40 V
- Emitter-Base Voltage: 5 V
- Collector Current: 3 A
- Collector Dissipation – 40 W
- DC Current Gain (hfe) – 10 to 50
- Transition Frequency – 3 MHz
- Operating and Storage Junction Temperature Range -65 to +150 °C
- Package – TO-220
