TIP120 Darlington Transistor NPN

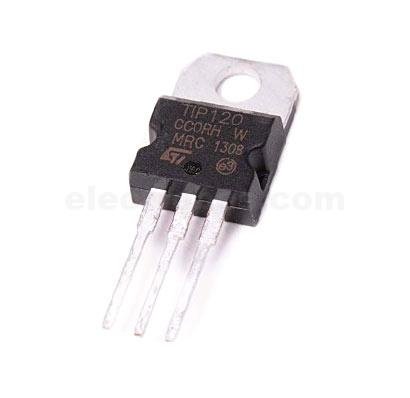

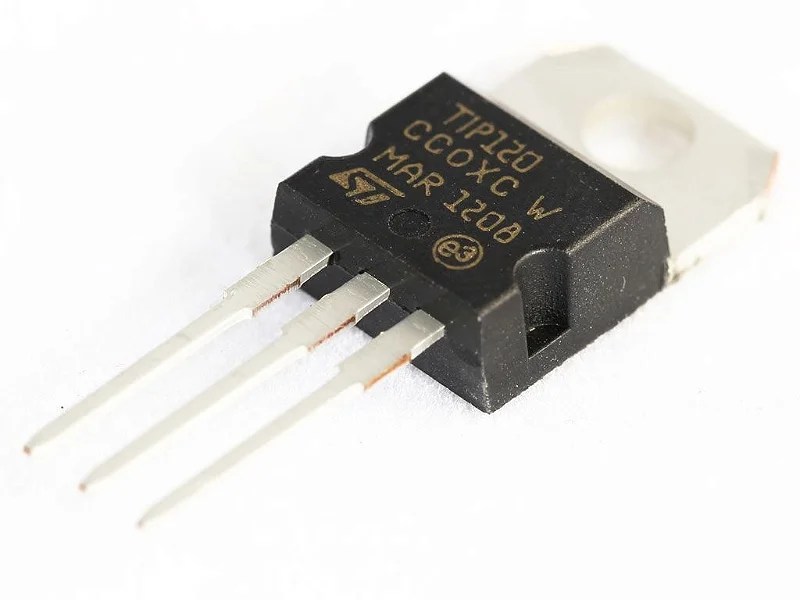

The TIP120 is a silicon NPN Darlington transistor in a TO−220 type package designed for general
purpose amplifier and low−speed switching applications. It functions like a normal NPN transistor, but since it has a Darlington pair inside it has a good collector current rating of about 5A and a gain of about 1000. It can also withstand about 100V across its collector- Emitter hence can be used to drive heavy loads. These kind of transistors are available to shop online in Pakistan at electrobes.
In stock
₨ 40
In stock

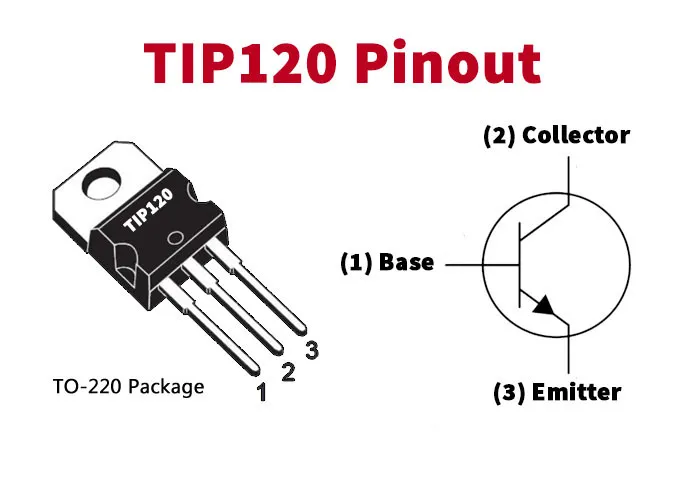

Pin configuration (Pinout) of the TIP120
Equivalent circuit
- Type – NPN
- Collector-Emitter Voltage: 100 V
- Collector-Base Voltage: 100 V
- Emitter-Base Voltage: 5 V
- Collector Current: 5 A
- Collector Dissipation – 65 W
- DC Current Gain (hfe) – 1000
- Operating and Storage Junction Temperature Range -65 to +150 °C
- Package – TO-220
