TS5828 Micro 5.8G 600mW 40CH FPV Transmitter with Digital Display and FPV 1500TVL /1200TVL Camera Receiver UVC for FPV Drone

The TS5828 Transmitter packs a whopping 600mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The TS5828 is transmitting a full range of 40 channels and uses an easy to use 2 button interface, it also comes with a clean pre-wired harness, and only weighs in at a scant 7grams, it’s Perfect for a wide range of aircraft!

Features:

• 40 channels: Cover A, B, C,D,E bands and F bands
• Power off memory for last channel and band

Specifications:

• Video format supported: NTSC/PAL
• Antenna connection: RP-SMA, jack
• Power input: 7-12V (3S Lipoly suggested)
• Transmitting power: 600mW
• Antenna gain: 2dbm
• Working current: 310mA at 12V
• Video bandwidth: 8Mhz
• Audio bandwidth : 6.5Mhz
• Weight: 7g(without antenna)
• Dimension: 23x 25x 7.7mm(excluding antenna)

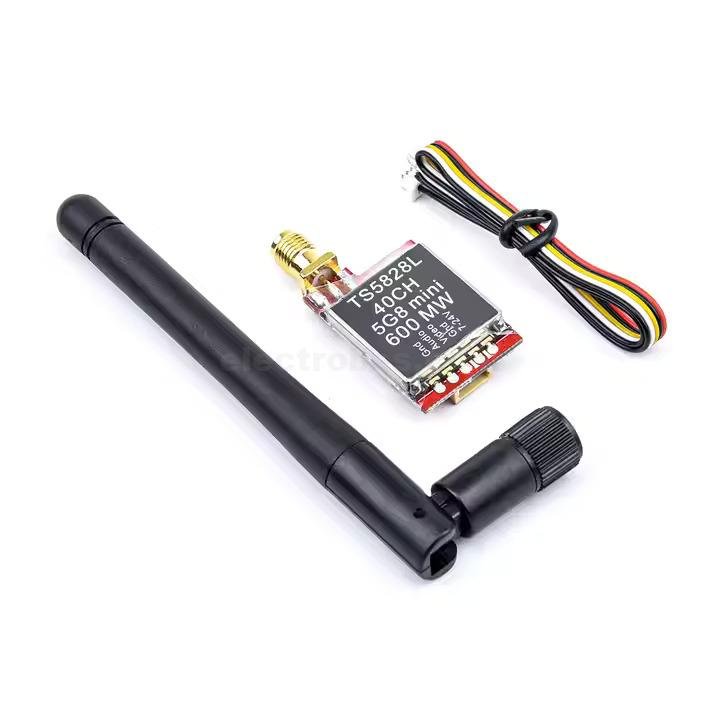

Package Included:

1x TS5828 transmitter
