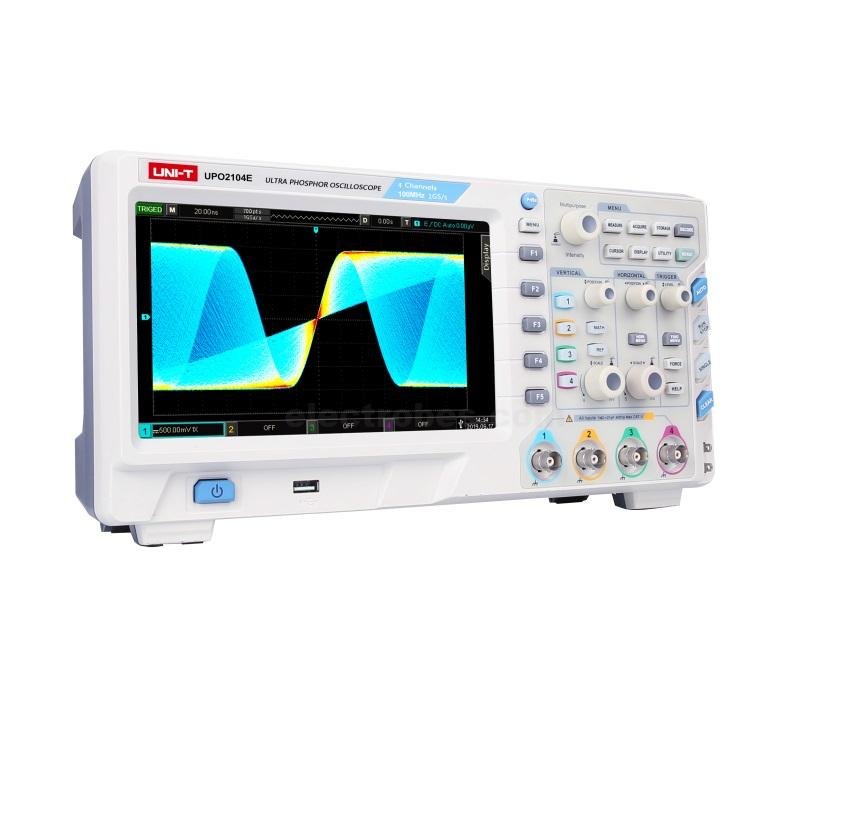

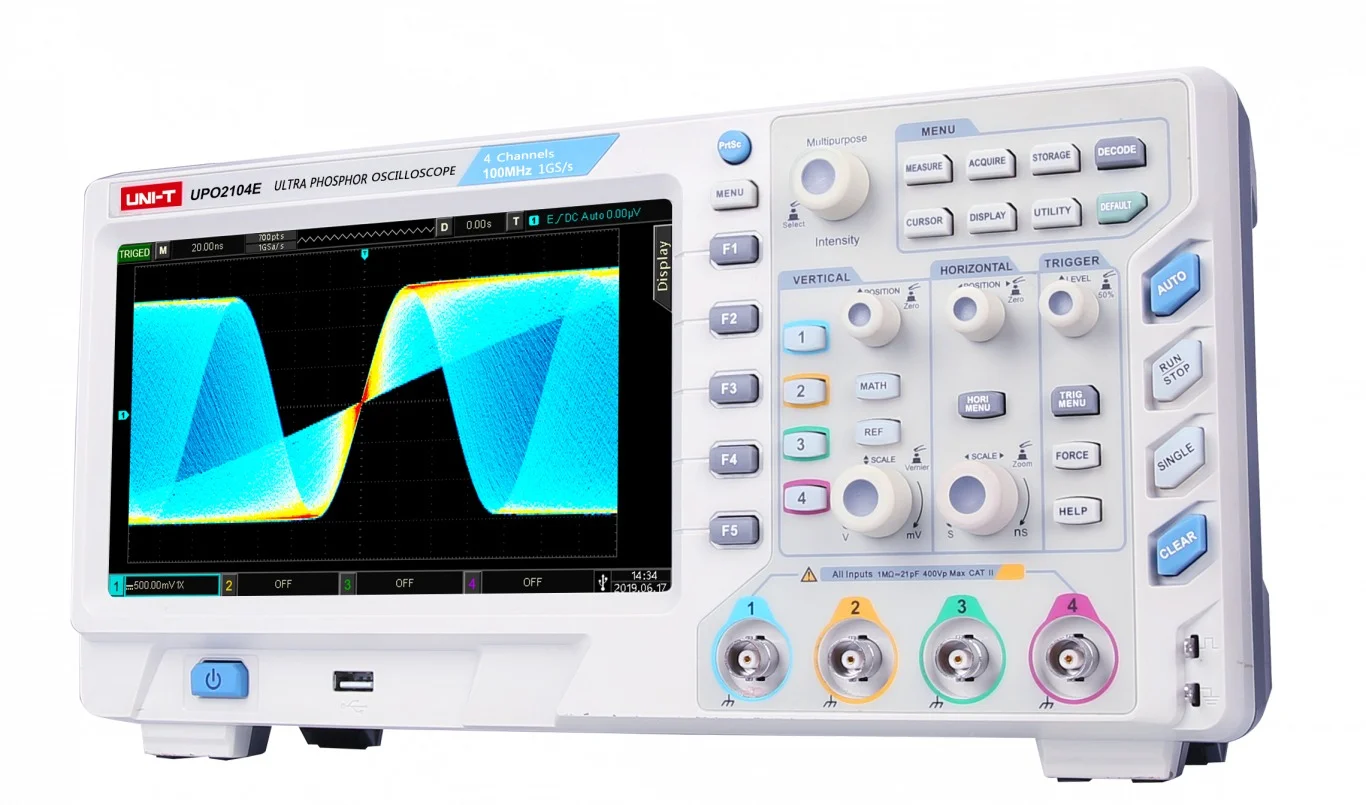

UNI-T UPO2104E Digital Oscilloscopes with 4 Analog Channels, 8inch LCD and 100MHz Frequency 1GS/s

Digital fluorescent display 256-level grayscale display capability, timely reflecting the probability of the appearance of the waveform, and the waveform change is clearly visible.
Excellent storage depth Excellent storage depth Up to 56Mpts storage depth, users can capture longer Time signal without losing waveform details.
Up to 80,000wfms/s waveform capture rate Up to 80,000wfms/s waveform capture rate, discover occasional problems in time, greatly improve the ability to capture extremely low-probability events, and observe signal jitter and glitches more intuitively
Independent time base adjustable The time base of each channel is independently adjustable, which is convenient for users to observe four channels of frequencies at the same time Significantly different signals
Rich data measurement functions Support 34 kinds of automatic measurement parameter functions, Support Zoom, Math, statistics and advanced calculation functions.

Availability:

Available on backorder

₨ 204,000

Available on backorder

Description
Specification

UNI-T UPO2104E Ultra Phosphor Digital Oscilloscopes 4 channel 100MHz 8inch LCD 1GS/s

Description:

The UPO2000E Series offers unprecedented value in customer applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities.
The Series is available in 70MHz and 100MHz bandwidth and 2 or 4 analog channels.
It adopts UNI-T UPO visualization technology, has a maximum sample rate of 1GSa/s and a standard memory depth of 56Mpts.

The UNI-T UPO2104E is a 4-channel oscilloscope for high performance and is a direct successor to the UPO2104CS. Compared to its predecessor, a number of specifications have been changed, for example the 2104E has a memory depth of 56 Mpts and the waveform capture rate has been increased to 80,000 wfms/s. What makes this scope really unique is that it can use a separate time base per channel. Furthermore, the scope has a large number of functions and the trigger options have been drastically expanded.

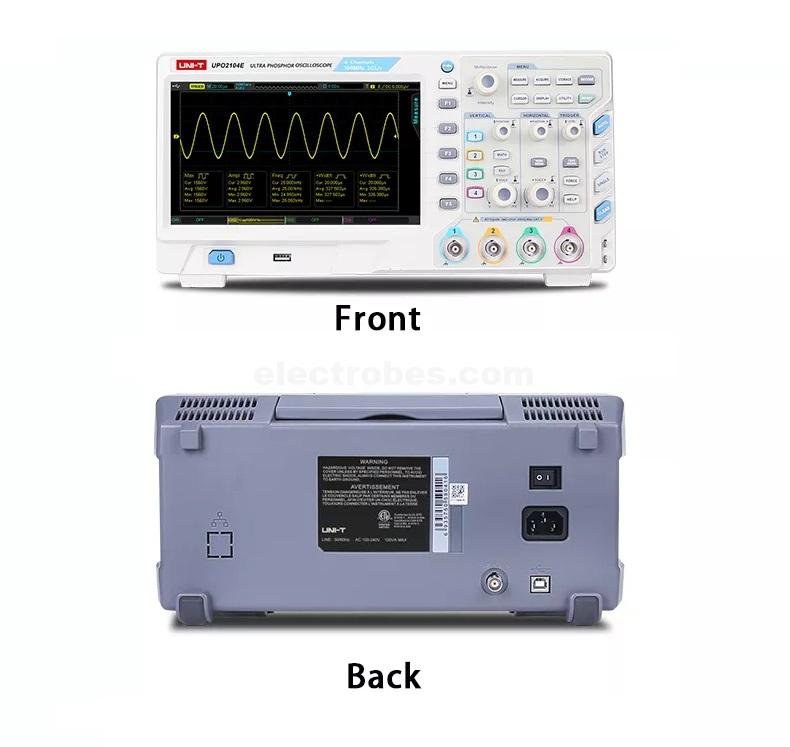

The UPO-2104E also comes with a USB interface for storing signals and measurement results. It’s large 8″ LCD screen and low noise floor displays all signals in highly detailed view. The oscilloscope also has a 256-level intensity grading display, which is a nice feature for oscilloscopes in this price range. By means of this technique, multiple signals are placed on top of each other to show the most common signals with more intensity. In addition, the oscilloscope also offers color temperature indication to show more clearly how often values occur in a signal.
