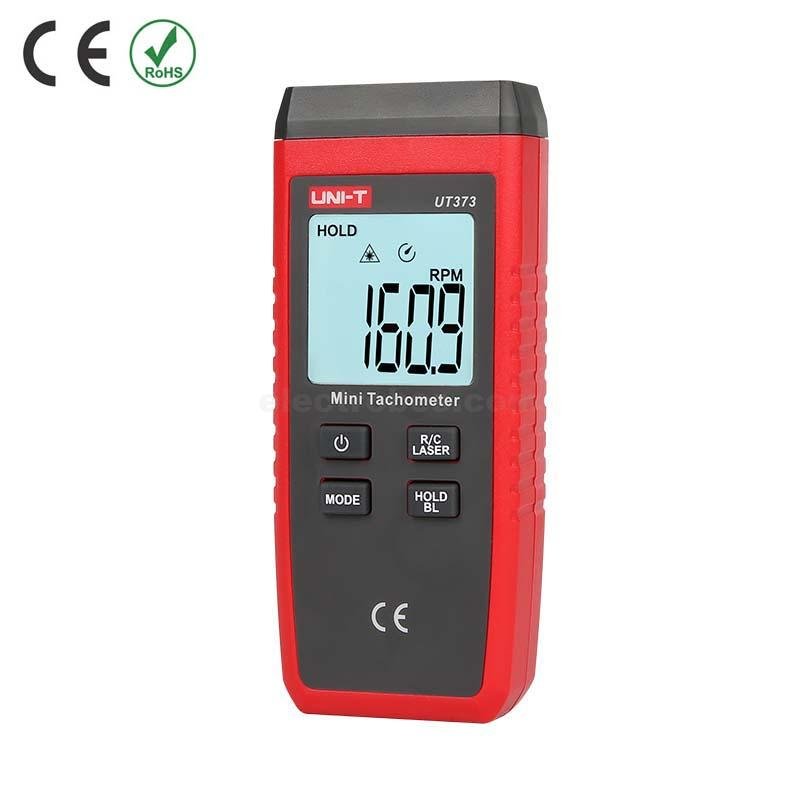

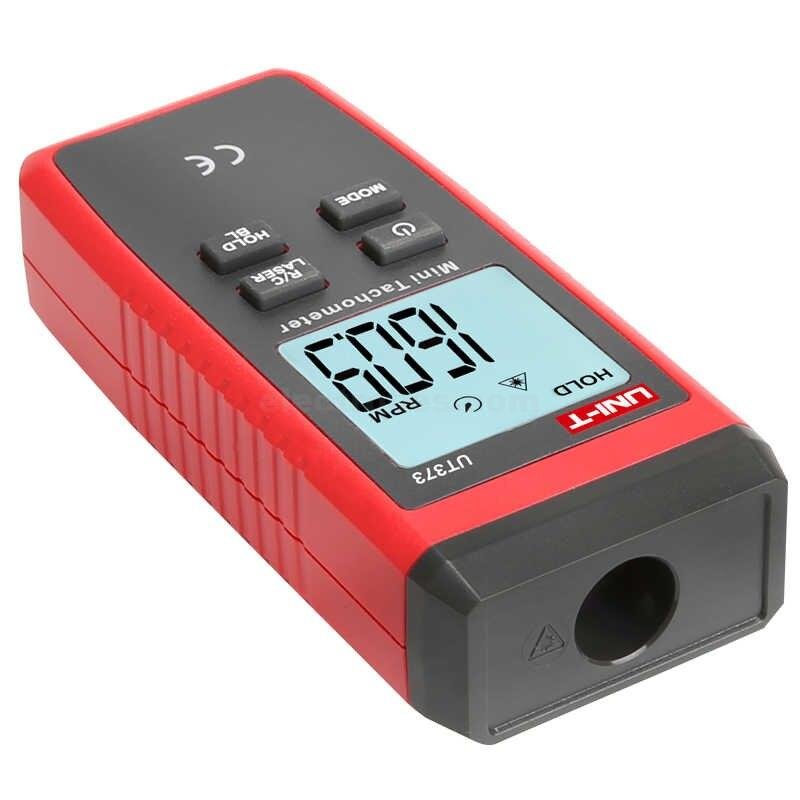

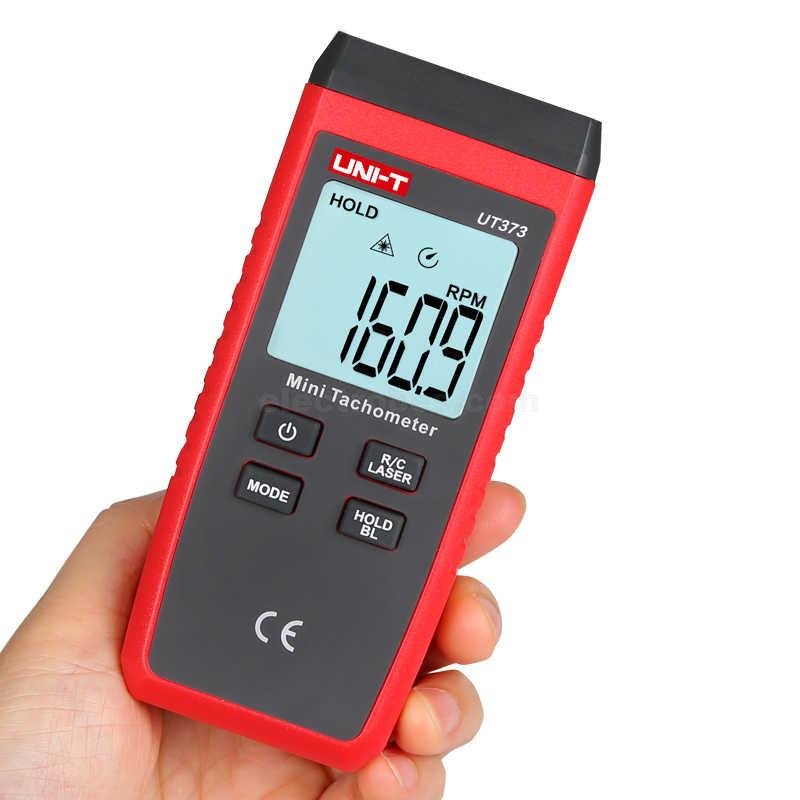

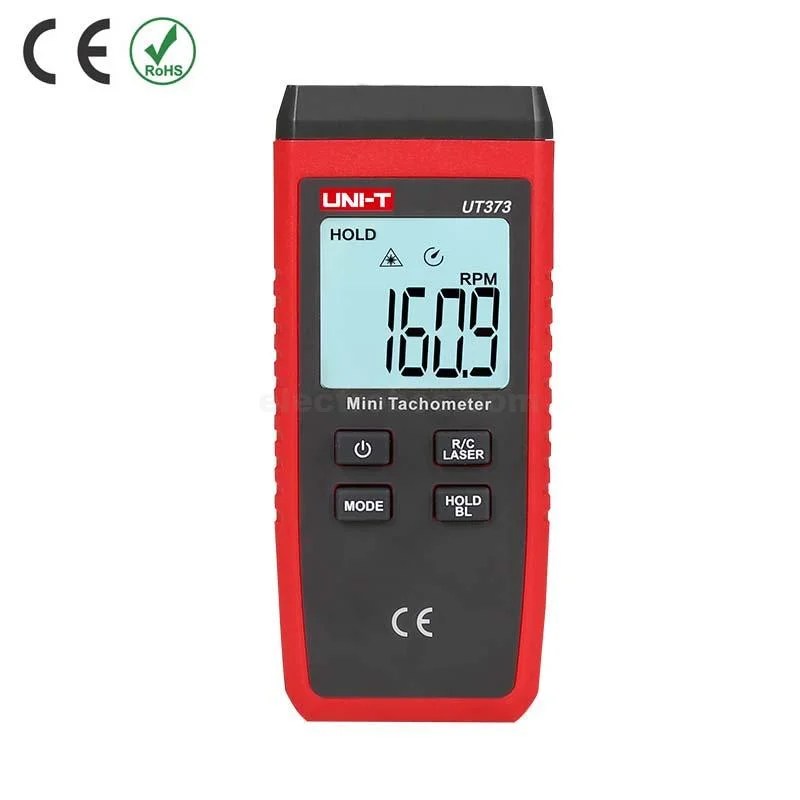

UNI-T UT373 Non-Contact Tachometer RPM Speed Sensing Meter
UT373 is a reliable digital non-contact tachometer used to measure rotation speed of motors and other machines. This device is able to display results in RPM or revolution count. UT373 is able to safely measure rotational objects through a non-intrusive method.
In stock
₨ 5,950
In stock
UNI-T UT373 is a reliable digital non-contact tachometer used to measure rotation speed of motors and other machines. This device is able to display results in RPM or revolution count. UT373 is able to safely measure rotational objects through a non-intrusive method.
Features:
- Units of measurement: RPM, individual revolutions (Count)
- Speed range per minute: 0 – 9999.9
- Range of individual speed measurement: 0 – 99999
- Resolution: 0.1 (10 – 9999) / 1 (10000 – 99999)
- Measurement deviation: ± 0.04 + 2 %
- Measurement distance: 50 – 200 mm
- Measuring angle: < 30°
- Sampling frequency: 1 – 7 s (depending on rotation speed)
- Minimum and maximum display mode
- Laser pointer
- Revolutions per minute, single revolution count
- External light source mode with laser pointer off
- Overload indication
- Data hold
- Display backlight
- Low battery warning
- Automatic shutdown when idle
GENERAL CHARACTERISTICS:
- Display dimensions: 35 x 32 mm
- Dimensions: 184 x 56 x 34 mm
- Power: 3 x AAA batteries (included)
- Fall resistance: 1 m
- Working temperature: 0 to 50°C
| Specifications | Range | Resolution | Accuracy |
| RPM measurement | 10.0~9999.9RPM | 0.1 | ±(0.04%+2) |
| 10000~99999RPM | 1 | ||
| Counting measurement | 0~99999 counts | 1 | ±1 |
| Features | |||
| Auto range | √ | ||
| Auto power off | √ | ||
| Low battery indication | √ | ||
| Laser-on indication | √ | ||
| Data hold | √ | ||
| MAX/MIN | √ | ||
| Rotating speed/count function switching | √ | ||
| Overload indication | √ | ||
| LCD backlight | √ | ||
| Refresh rate | 1s to 7s (>120rpm for 1s) | ||
| Sensor type | Photodiode and laser tube | ||
| Target distance | 50mm~200mm | ||
| Measuring angle | ±30° from perpendicular | ||
| Drop test | 1m | ||
| General Characterisitics | |||
| Power | 1.5V battery (R03) x 3 | ||
| Display | 5-digit segment code; 99999 max display | ||
| Product color | Red and grey | ||
| Product net weight | 85g (excluding battery) | ||
| Product size | 183.8mm x 56mm x 34mm | ||
