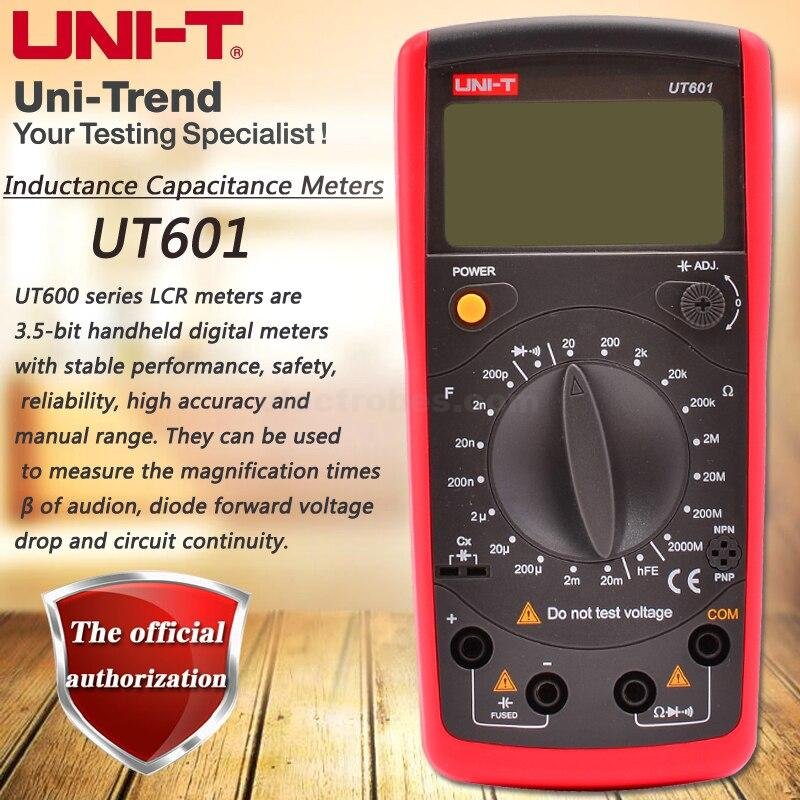

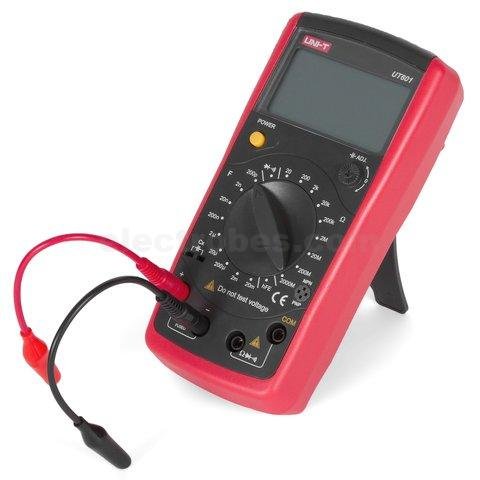

UNI-T UT601 Digital Inductance Capacitance LCR Meter
UNI-T UT600 series UT601 digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters.
Availability:
Out of stock
₨ 7,200
Out of stock
UNI-T UT600 UT601 series digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters.
FEATURES
- Functions:
- resistance
- capacitance
- continuity test (with buzzer)
- diode test
- transistor test
- Manual ranging
- Low battery indication
TECHNICAL SPECIFICATIONS

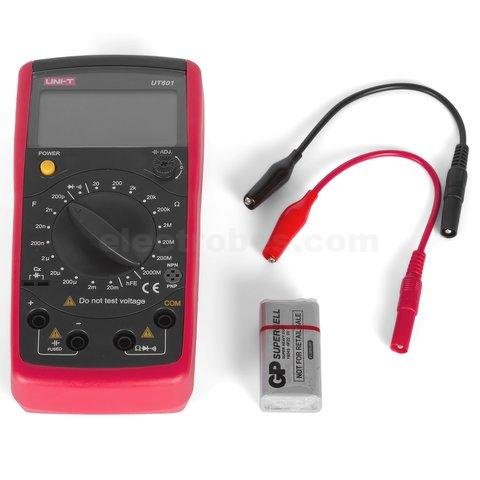

PACKAGE CONTENTS
- UNI-T UT601 Inductance Capacitance LCR Meter — 1 pc.
- Test clip — 1 set.
- User manual — 1 pc.
Note! Batteries are not included in the package.
| Specifications | Range | UT601 |
| Resistance (Ω) | 20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ/2000MΩ | ±(0.8%+1) |
| Capacitance (F) | 200pF/2nF/20nF/200nF/2uF/20uF/200uF/2mF/20mF | ±(0.5%+10) |
| Features | ||
| Display count | 2000 | |
| Manual range | √ | |
| Diode | √ | |
| Transistor | √ | |
| Continuity buzzer | √ | |
| Low battery indication | √ | |
| General Characterisitics | ||
| Power | 9V battery (6F22) | |
| Display | 61mm x 32 mm | |
| Product color | Red and grey | |
| Product net weight | 310g | |
| Product size | 172mm x 83mm x 38mm | |
| Standard accessories | Battery, test leads with alligator clips, holster | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 450mm x 330mm x 340mm (0.099CBM per standard carton) | |
| Standard carton gross weight | 9.6kg | |
