USB to FCC 10 Pin 1.0mm Adapter Board HDL662B LCM LCD Module Debugging Interface
The USB to FCC 10-pin 1.0mm Adapter Board provides seamless connectivity between USB and FCC 10-pin 1.0mm interfaces. It simplifies integration and offers flexibility for various projects requiring easy USB-to-FCC connection.
Only 4 left in stock
₨ 1,600
Only 4 left in stock
USB to FCC 10 Pin 1.0mm Adapter Board HDL662B LCM LCD Module Debugging Interface

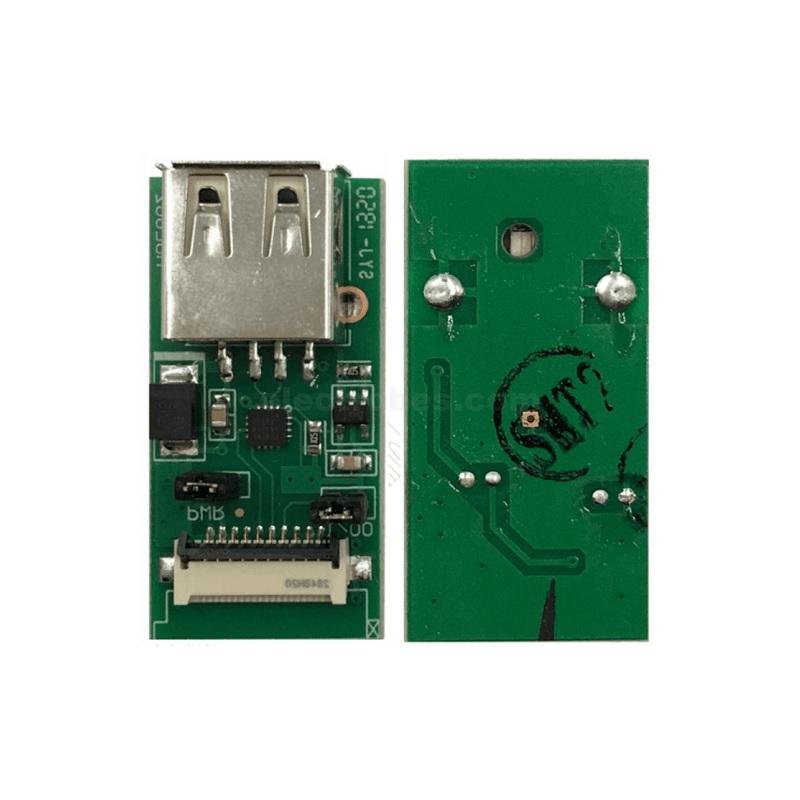

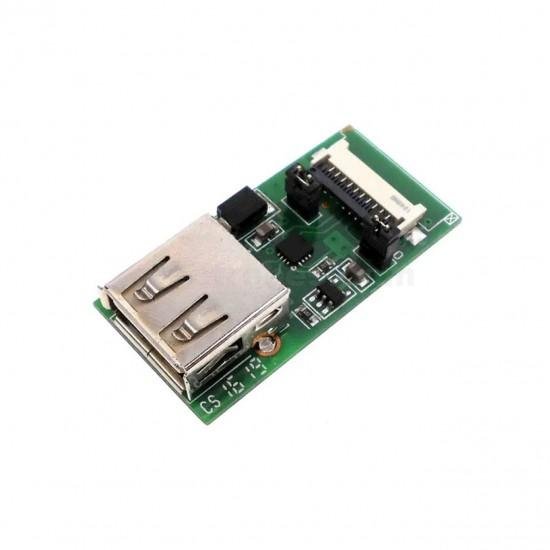

The DWIN HDL662B Adapter Board is used to debug the LCM LCD Modules / LCD displays. The board has a USB connector on one side and 10 pins 1mm pitch FFC connector on the other side. Users can connect it through the USB interface directly to a PC without an additional power supply. A 10PIN FFC cable is needed to connect the PC and USB adapter plate when using DWIN C-series products.
Package Includes:
1 x HDL662B
1 x FCC1015A-FCC10-1.0
