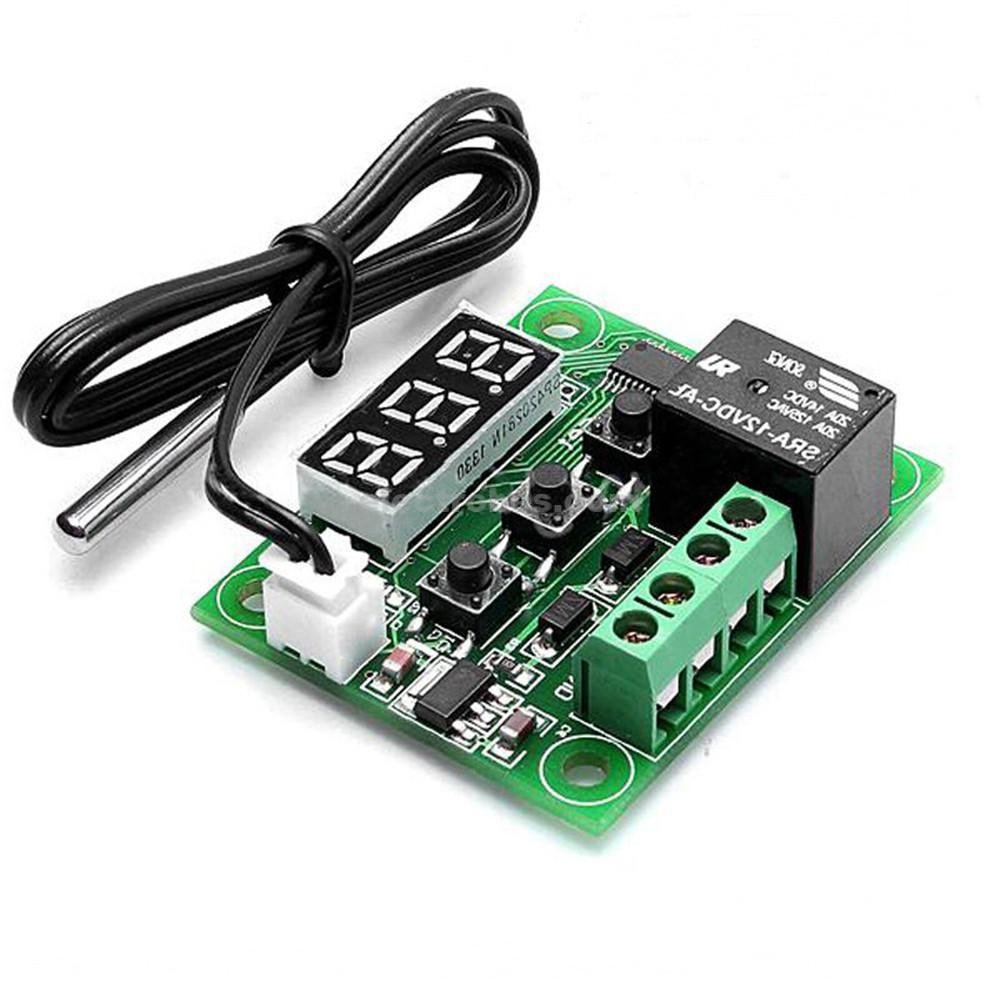

W1209 Digital Thermostat Temperature Control Switch Sensor Module
With this module (HCTHER0006) you can intelligently control power to most types of electrical device based on the temperature sensed by the included high accuracy NTC temperature sensor. Although this module has an embedded microcontroller no programming knowledge is required. 3 tactile switches allow for configuring various parameters including on & off trigger temperatures.
In stock
₨ 350
In stock

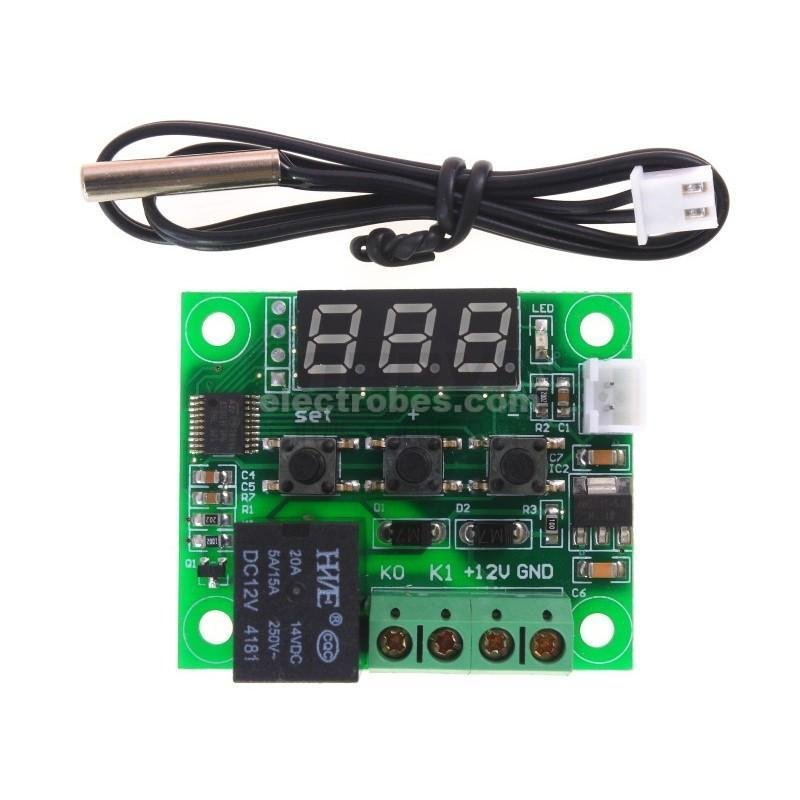

W1209 Digital Thermostat Temperature Control Switch Sensor Module
The W1209 is an incredibly low cost yet highly functional thermostat controller. With this module (HCTHER0006) you can intelligently control power to most types of electrical device based on the temperature sensed by the included high accuracy NTC temperature sensor. Although this module has an embedded microcontroller no programming knowledge is required. 3 tactile switches allow for configuring various parameters including on & off trigger temperatures. The on board relay can switch up to a maximum of 240V AC at 5A or 14V DC at 10A. The current temperature is displayed in degrees Centigrade via its 3 digit seven segment display and the current relay state by an on board LED.
Note: This module uses on-board non-volatile memory to store changes made to its settings. Therefore any changes made will be saved even if power it removed from the module.
- Temperature Control Range: -50 ~ 110 C
- Resolution at -9.9 to 99.9: 0.1 C
- Resolution at all other temperatures: 1 C
- Measurement Accuracy: 0.1 C
- Control Accuracy: 0.1 C
- Refresh Rate: 0.5 Seconds
- Input Power (DC): 12V
- Measuring Inputs: NTC (10K 0.5%)
- Waterproof Sensor: 0.5M
- Output: 1 Channel Relay Output, Capacity: 10A
- Power Consumption
Static Current: <=35mA
Current: <=65mA - Environmental Requirements
Temperature: -10 ~ 60 C
Humidity: 20-85% - Dimensions
48mm x 40mm x 14mm
