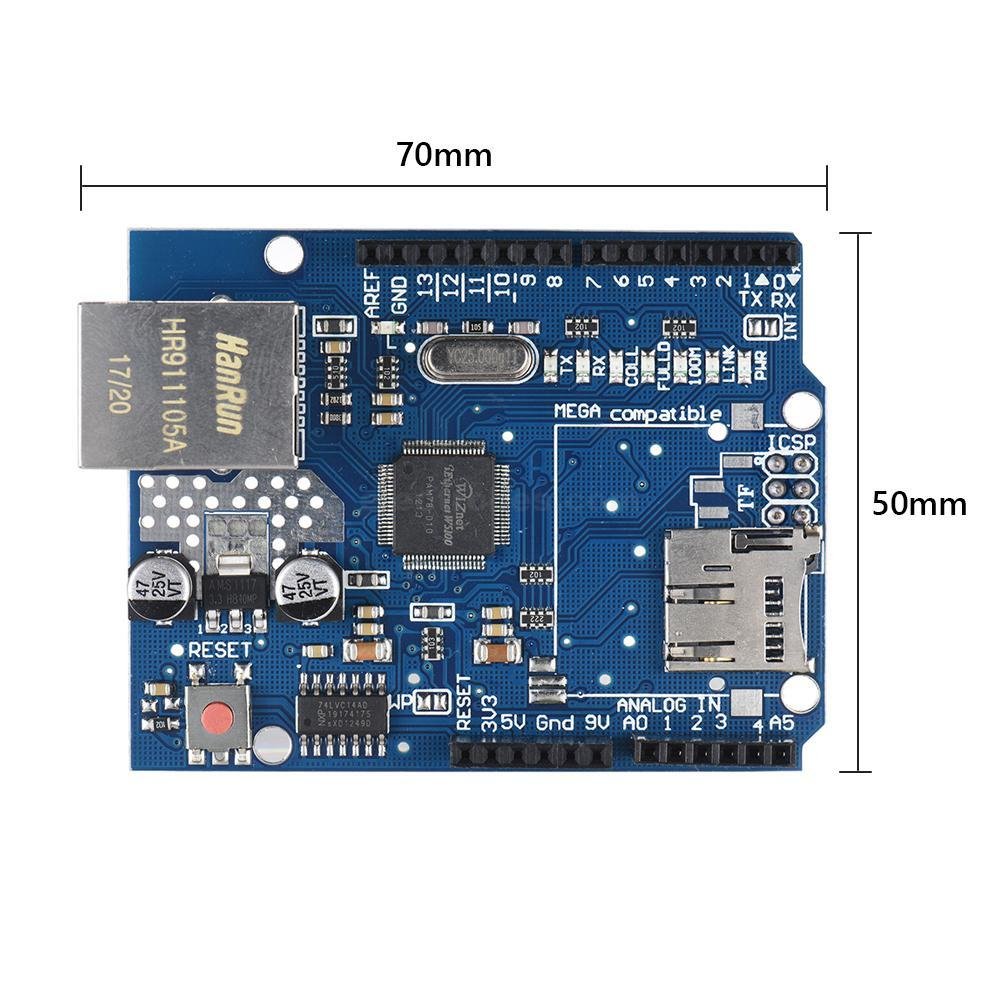

W5100 Ethernet Network Shield W5100 Ethernet Expansion Board with SD Card Slot for Arduino UNO MEGA2560

W5100 Ethernet Network Shield W5100 Ethernet Expansion Board with SD Card Slot for Arduino UNO MEGA2560

The Arduino Ethernet Shield connects your Arduino to the internet in mere minutes. Just plug this module onto your Arduino board, connect it to your network with an RJ45 cable (not included) and follow a few simple instructions to start controlling your world through the internet. As always with Arduino, every element of the platform – hardware, software and documentation – is freely available and open-source. This means you can learn exactly how it’s made and use its design as the starting point for your own circuits. Hundreds of thousands of Arduino boards are already fueling people’s creativity all over the world, everyday.

Features:

• 1. Use of this Ethernet shield, Arduino board can be use to connect to the Internet and can be use as a server or client.
• 2. This Arduino Ethernet shield base on Wiznet W5100 Ethernet chip provide you with a way to easily get Arduino Online, because it is directly supported by the official Arduino Ethernet library.
• 3. It adds a micro-SD card slot, which can be use to store files provided through the network.
• It is compatible with Arduino Due milanove (168 or 328), Uno and Mega (1280/2560) and can be access using the SD library.
• 4. Wiznet W5100 provides a network (IP) stack that can support both TCP and UDP.
• The W5100 provides a network (IP) stack capable of both TCP and UDP.
  2. It supports up to four simultaneous socket connections.
  3. Suitable for Arduino motherboard (all versions), for UNO, for mega 1280, for mega 2560.
  4. Use the Ethernet library to write sketches which connect to the internet using the shield.

Download:

• arduino-ethernet-shield-06-schematic.pdf
• arduino-ethernet-shield-06-reference-design.zip
• Reference Design
• Getting Started
• Bildr Tutorial (Server)
• Bildr Tutorial (Client)
