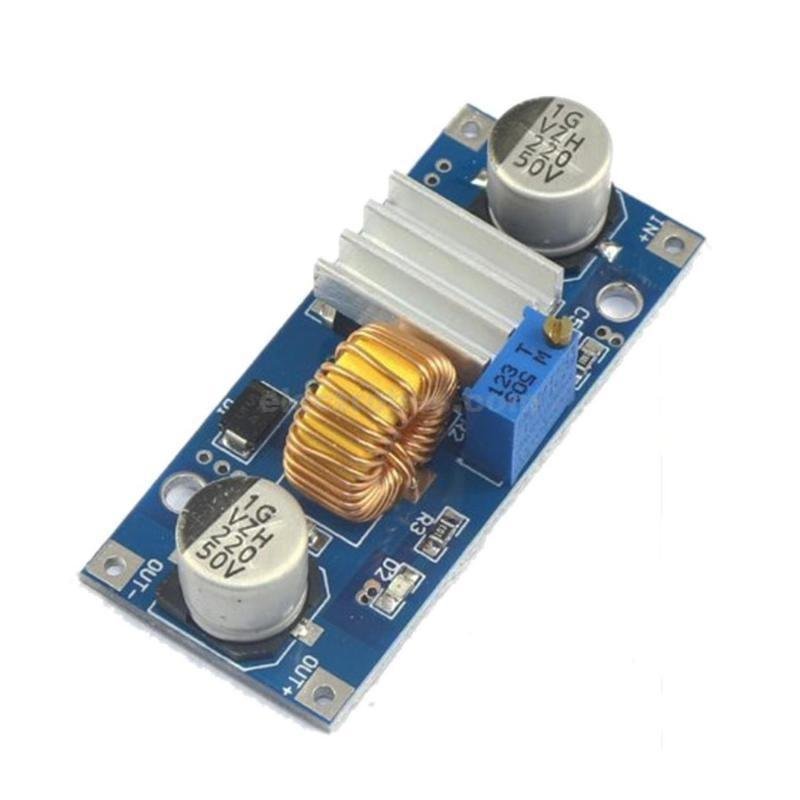

XL4015 5A DC-DC Voltage Step Down Buck Converter 4-38v Input
The XL4015 power module is a DC to DC step-down (BUCK) power module that operates at a switching frequency of 180kHz. In such high frequency, it provides smaller sized filter components compared with low frequency switching regulators.
Out of stock
₨ 370
Out of stock

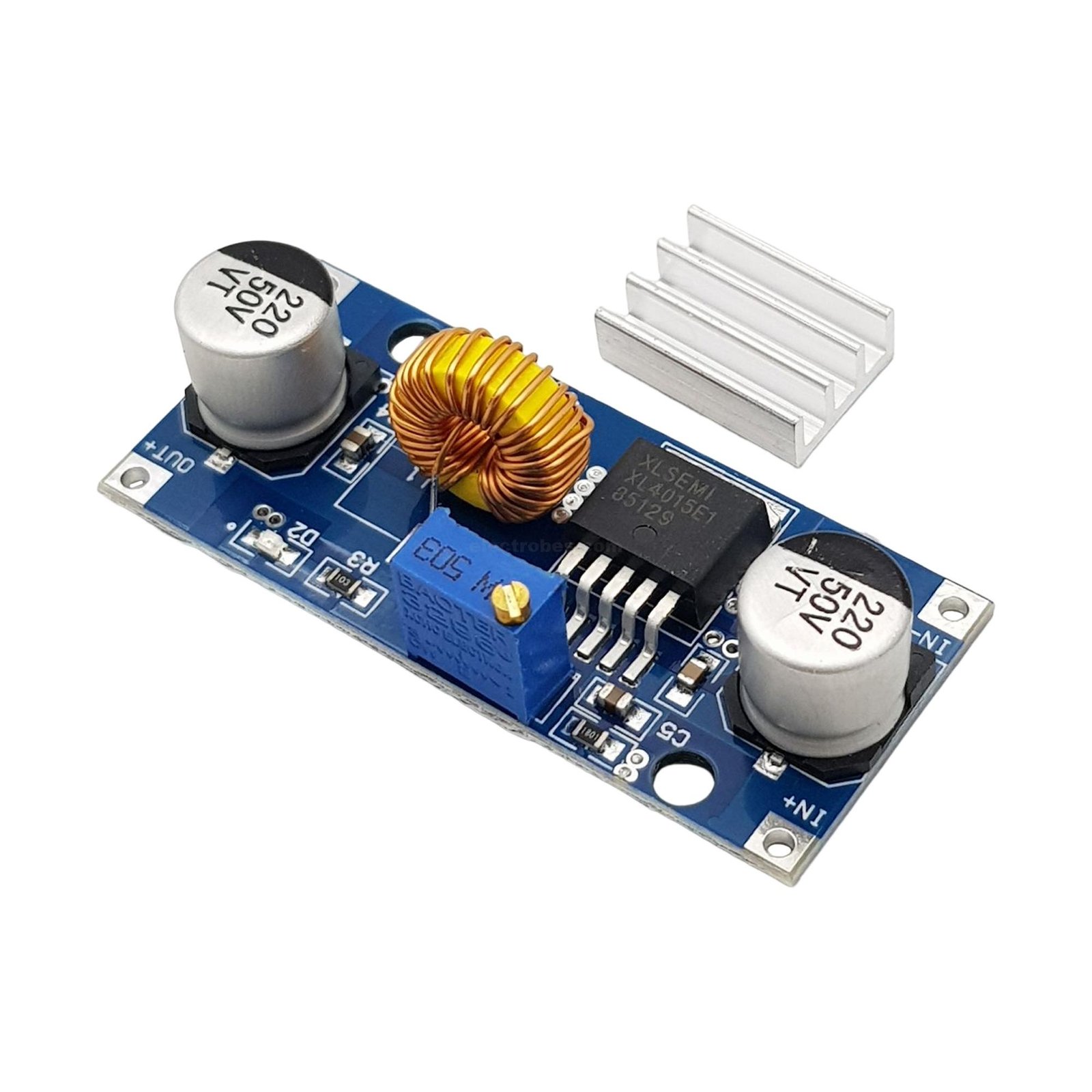

XL4015 5A DC Step Down Adjustable Power Supply Module LED Lithium Charger Board
This DC-DC switching buck converter is capable of driving a 5A load with excellent line and load regulation. The main switching component is XL4015, an adjustable output version switching regulator. It is an efficient switching regulator and the output efficiency is significantly higher in comparison with the popular boost regulators. At higher input voltages, the regulator operates at a switching frequency of 180kHz, thus allowing the overall board size to be smaller and space-saving. It is a high-power switching module with a toroidal ring inductor.
Applications:

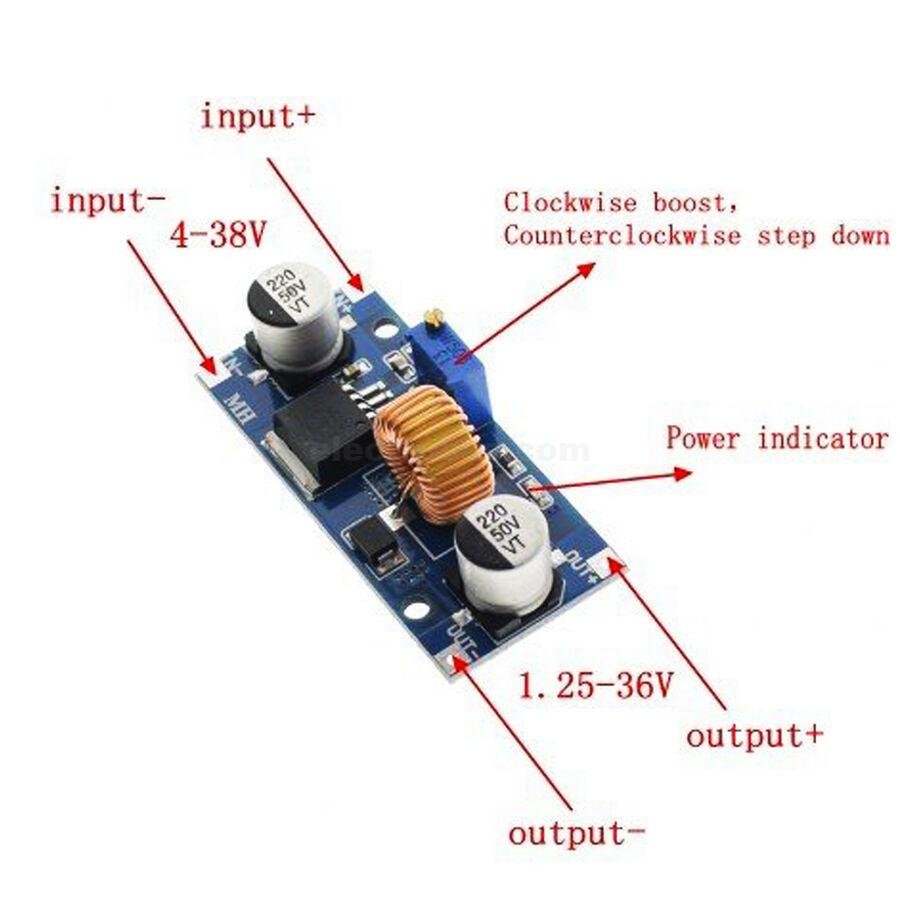

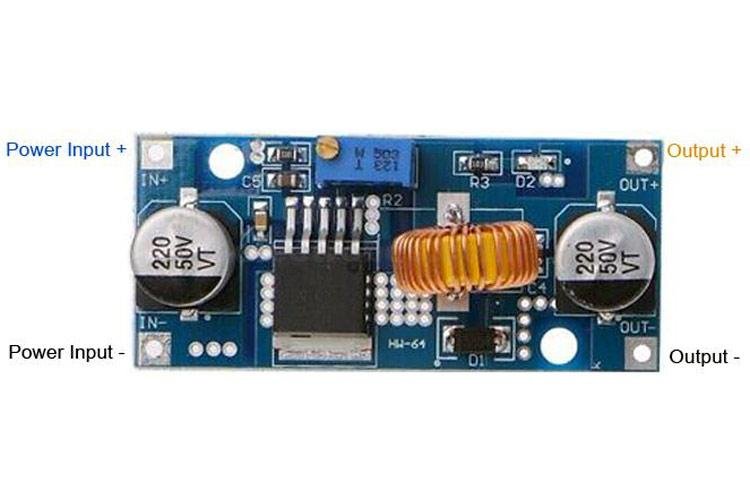

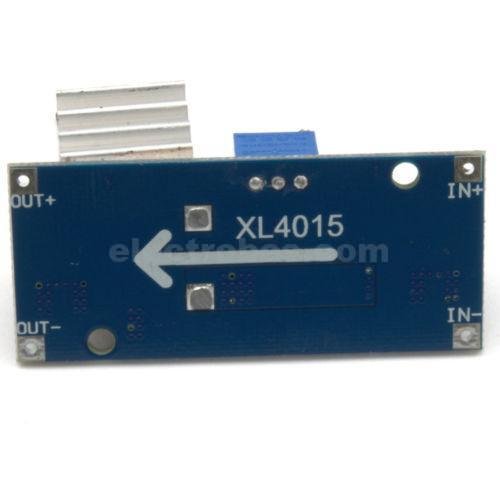

Pin Description of XL4015 Buck converter module
| Pin Name | Description |
| IN+ | Positive input (Unregulated or Regulated) |
| IN- | Negative input (Ground) |
| OUT+ | Positive Output (Regulated) |
| OUT- | Negative Output (Ground) |
Package Includes:
- Module Nature: Non-isolated buck module (BUCK)
- Input voltage: 4-38V (input should try not to exceed 38V)
- Output voltage: 1.25-36V continuously adjustable
- Output current: 0-5A
- Output power: 75W
- Operating temperature: -40 ~ +85 degrees
- Operating frequency: 180KHz
- Conversion efficiency: up to 96%
- Load regulation: S (I) ≤ 0.8% (input 24V, output 12V, load from 1 ~ 4.5A when
- measured)
- Voltage regulation: S (u) ≤ 0.8% (output 12V, 4A, the voltage measured from 18 to 32V)
- Power indicator: Yes
- Short circuit protection: Yes (limit current 8A)
- Over-temperature protection: Yes (over-temperature automatically turn off the output)
- Input Reverse Protection: None, (if required, enter the high-current diode in the input string)
- Installation: 2 3mm screws
- Wiring method: welding, V-IN for the input, V-OUT for the output.
- L x W x H : 54 x 23 x 18mm
