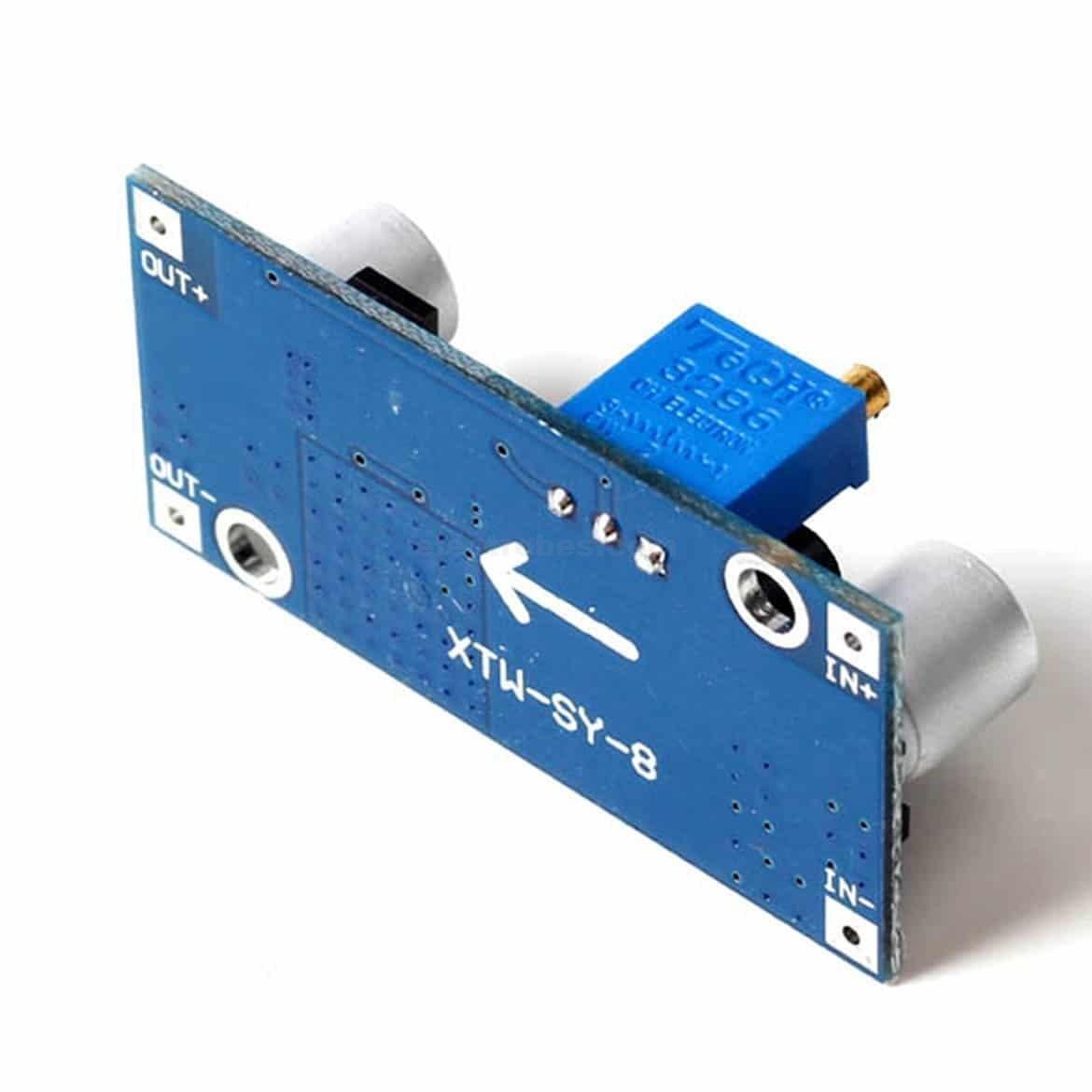

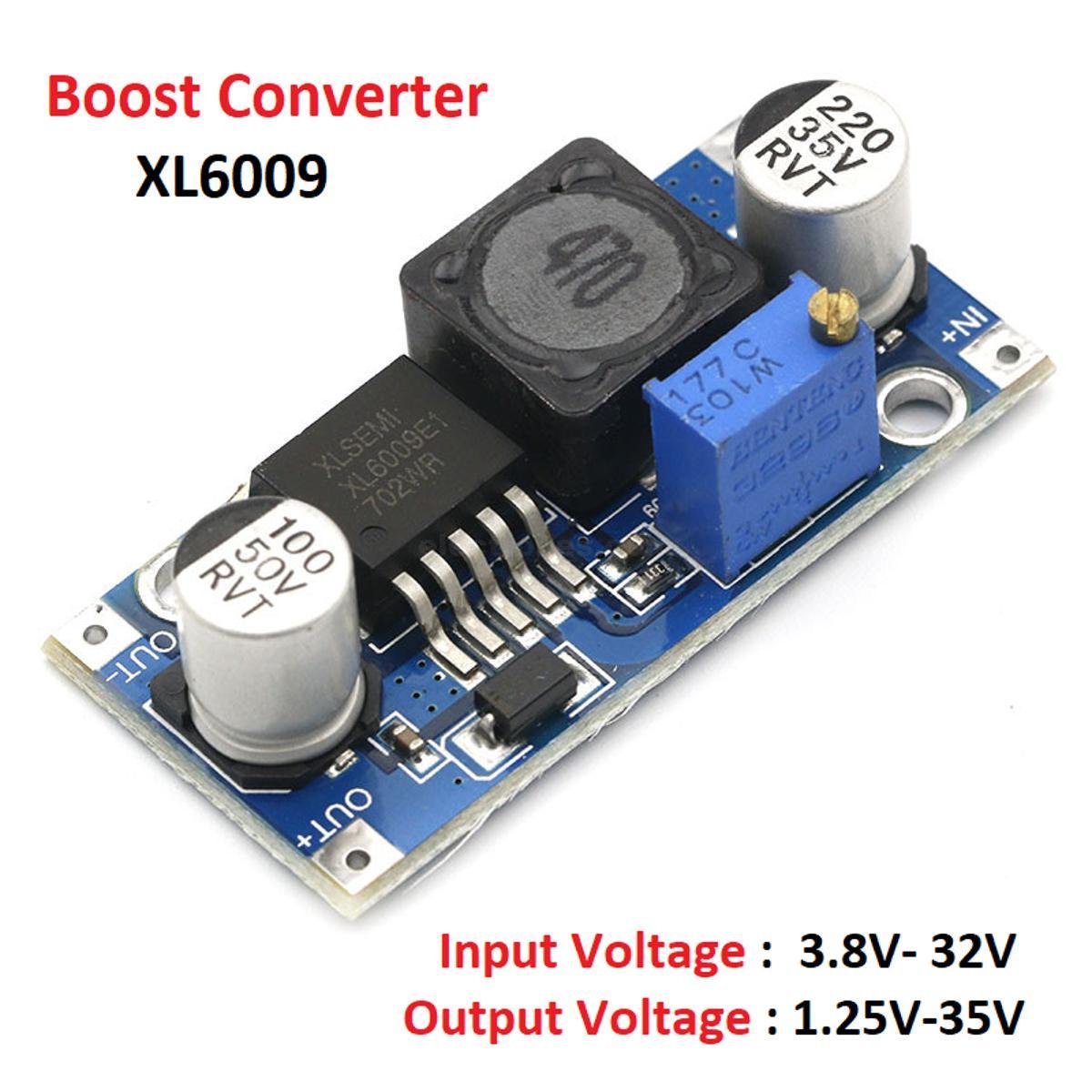

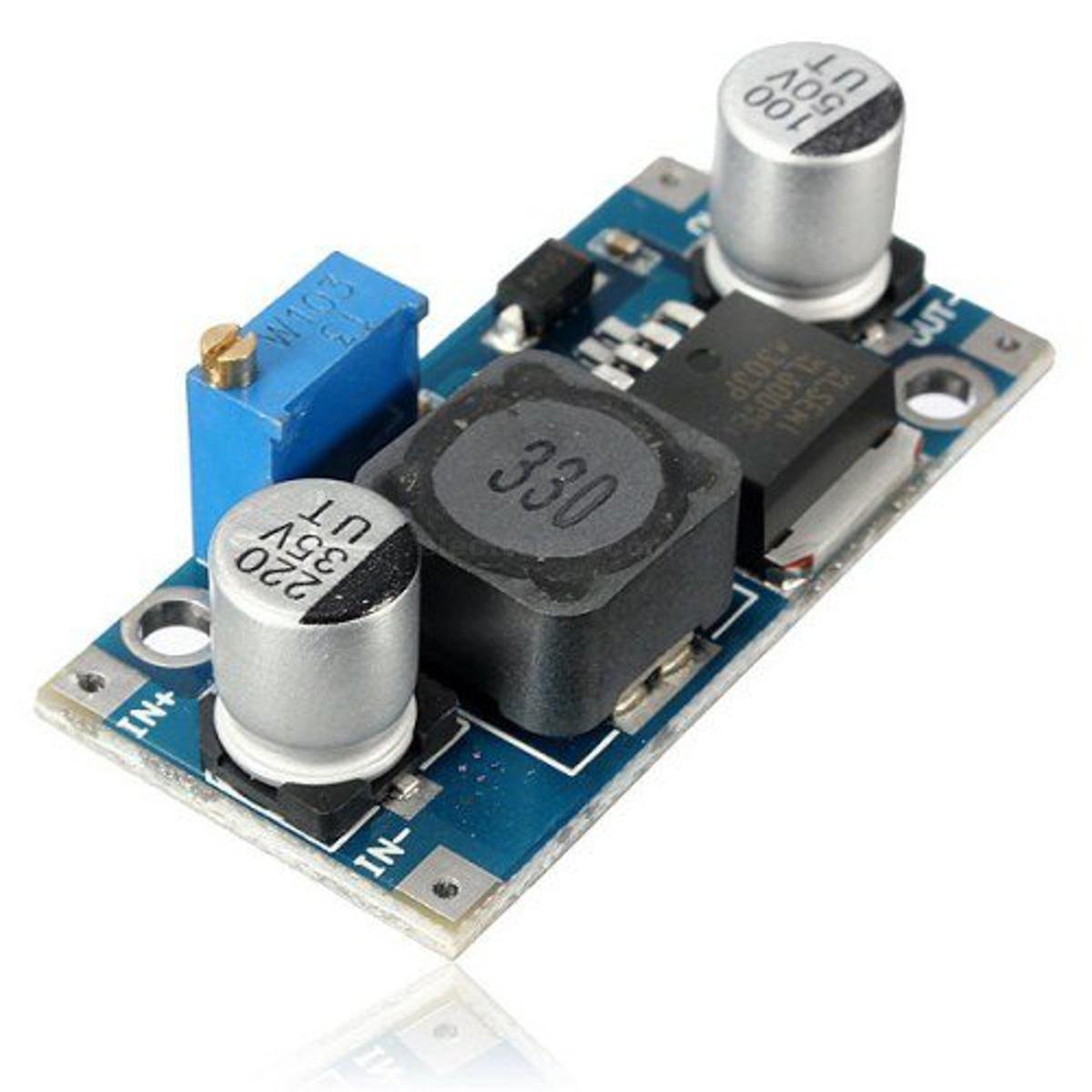

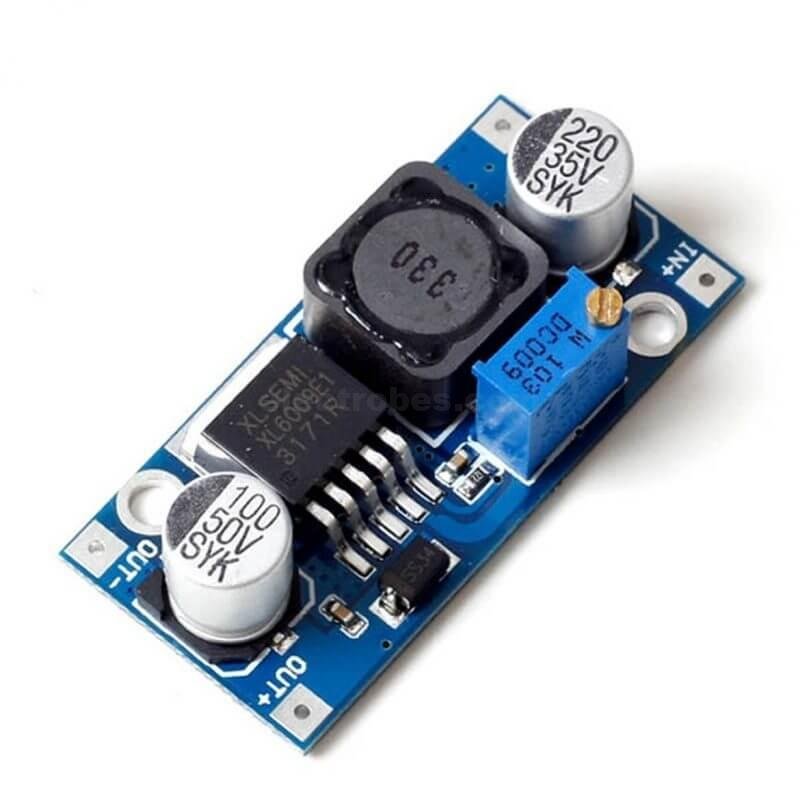

XL6009 DC-DC Step Up Boost Converter 5 – 32V to 5 – 35V 10W (4A)

Xl6009 booster module is a 4A switching current high performance BOOST module, with the third generation of high frequency switch technology as the core chip, the performance is far superior to LM2577. It can be used for booster power supply, DIY adjustable mobile power supply, booster charger, etc.

Features of XL6009 buck converter module

• Wide input voltage 3V ~ 32V, optimum operating voltage range is 5 ~ 32V;
• Wide Output voltage 5V ~ 35V;
• Built-4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A)
• High switching frequency 400KHz, can use a small-capacity filter capacitors that can achieve very good results, the ripple smaller and smaller. (LM2577 frequency only 50KHz)

Specification of XL6009 DC-DC Buck converter:

• Input voltage: 3 – 32V
• Output voltage: 5 – 35V (adjustable)
• Output current: Maximum output current 4A
• Note: The higher the voltage, the load current increases.
• Efficiency of this regulator upto <94%
• Load regulation: 0.5%
• Voltage regulation: 0.5%
• Adjustable potentiometer onboard for output voltage adjustment.
• Non – isolated constant voltage module.
• Non – synchronous rectification.
• Short circuit proportion: current limiting since the recovery.
• Dimension: 45*20*14 mm (L*W*H)

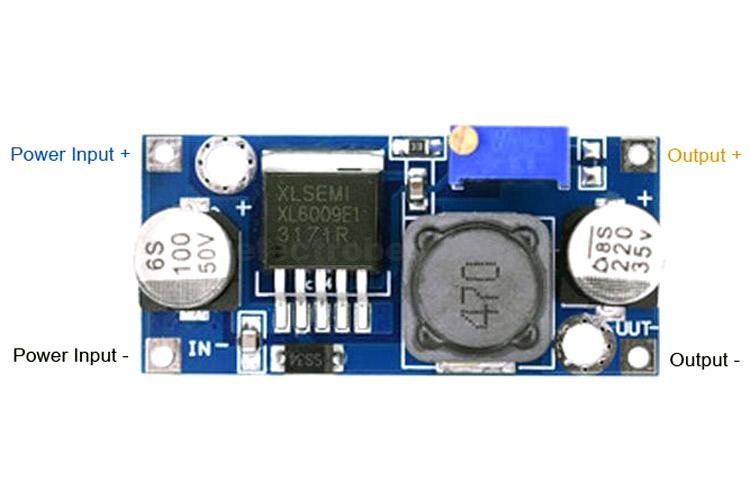

Pinout:

Applications of XL6009 Power Module Board

• DIY based power supply
• To serve the power requirements of Audio-based circuits
• High current applications with small space

Package Includes:

1 x Xl6009 boost converter module
