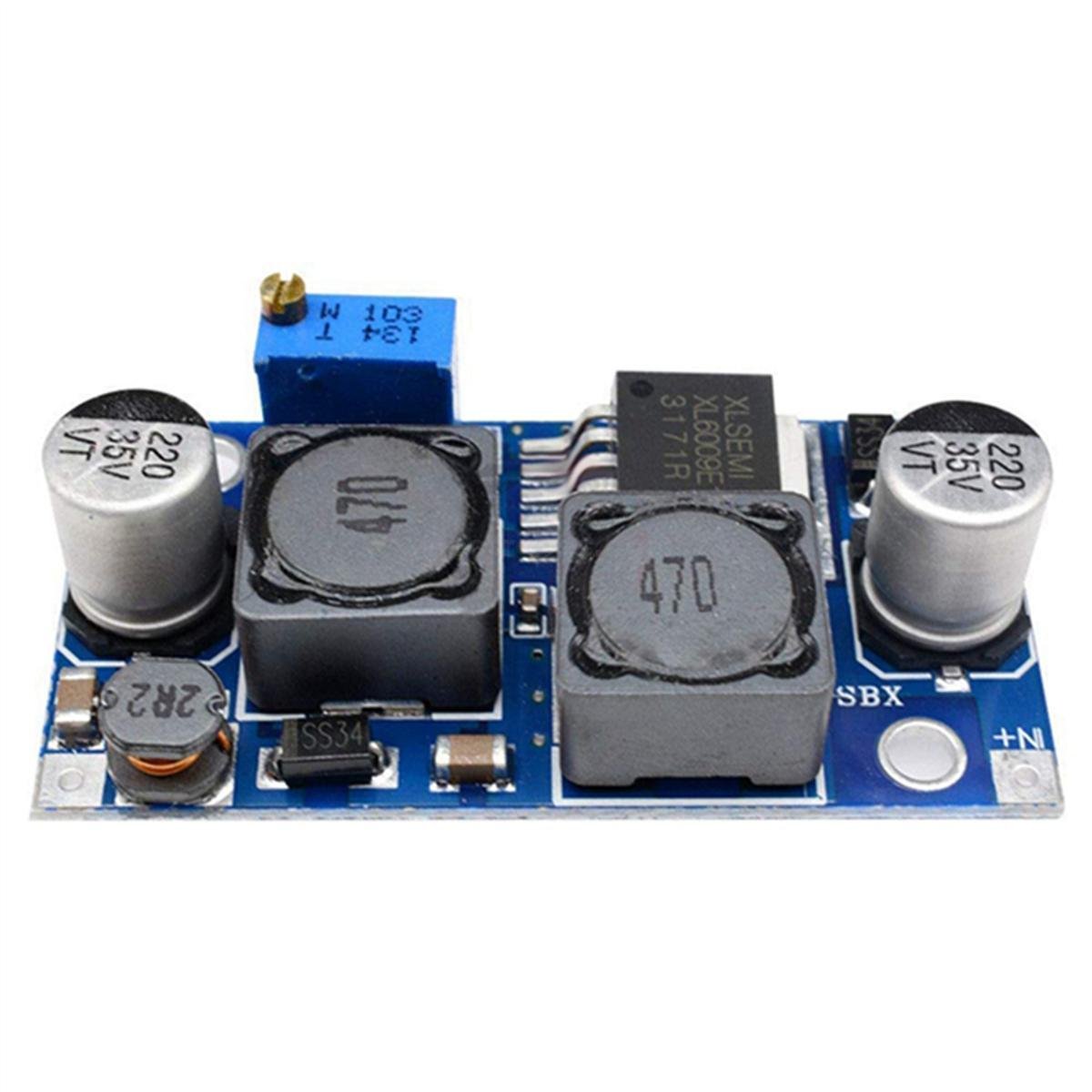

XL6009E1 1.3-35V 3A Auto Step Up/Down Buck/Boost DC-DC Converter Module

This is an auto DC-DC step up / down or buck / boost converter power module with high-precision potentiometer for adjusting output voltage, capable of driving a load up to 3A with extra cooling. Good to stabilize inconsistent voltage source like battery, solar panel, wind generator and etc.

Specifications:

• Input voltage: DC 5V-32V
• Input current: 3A maximum (Output current must always below input maximum current)
• Output voltage: DC 1.3V-35V, (Adjustable)
• Output current: 0-3A (Without extra cooling, recommend 2A max)
• Conversion efficiency: <94%
• Switching frequency: 400KHz
• Output ripple: 50mV (Larger when voltage or current higher)
• Operating temperature: -40ºC to +85ºC
• Size: 48x25x15mm
• Weight: 15g

Features:

• Auto DC-DC step up / down converter power module
• Output voltage build in high-precision potentiometer for adjustment
• Output voltage remian constant even input voltage change
• 400KHz switching frequency
• Up to DC 35V, 3A output
• Good to stabilize inconsistent voltage source like battery, solar panel and wind generator

Package Content:

1 x XL6009E1 buck boost converter module
