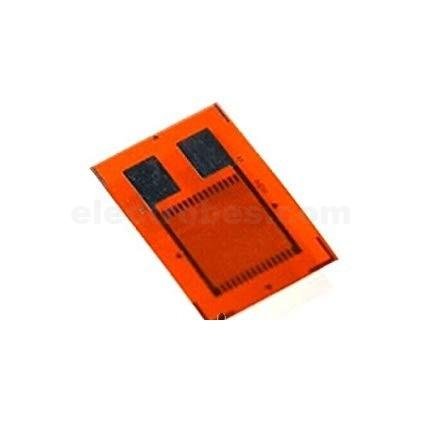

BF350-3AA Strain Gauge Resistive Pressure Force Sensor
The BF350-3AA Pressure Resistance Strain Gauge Sensor has 350-ohm nominal resistance which varies when a force is applied. When force has been applied the resistance of the sensor is changed which is used to measure the amount of force applied.
Only 4 left in stock
₨ 90
Only 4 left in stock
BF350-3AA Strain Gauge Resistive Pressure Force Sensor
A resistive strain gauge sensor with a 350 ohm nominal resistance which varies when a force is applied. By measuring the change in the sensors resistance a measurement of the force applied to it can be obtained. Note that strain gauges exhibit small changes in resistance and so this sensor should be used in a Wheatstone bridge configuration. If using with a microcontroller such as an Arduino we also recommend using our HX711 digital bridge sensor interface module.
Features:
- Nominal resistance(Ohm): 350
- Tolerance: <±0.1%
- Gauge factor: 2.00~2.20
- Gauge factor resistance: <±1%
- Strain limit: 2.0%
- Fatigue life: >10
- Metal foil: constantan alloy
- Working temperature range: -30~+80℃
- Temperature compensation: Aluminium(23)

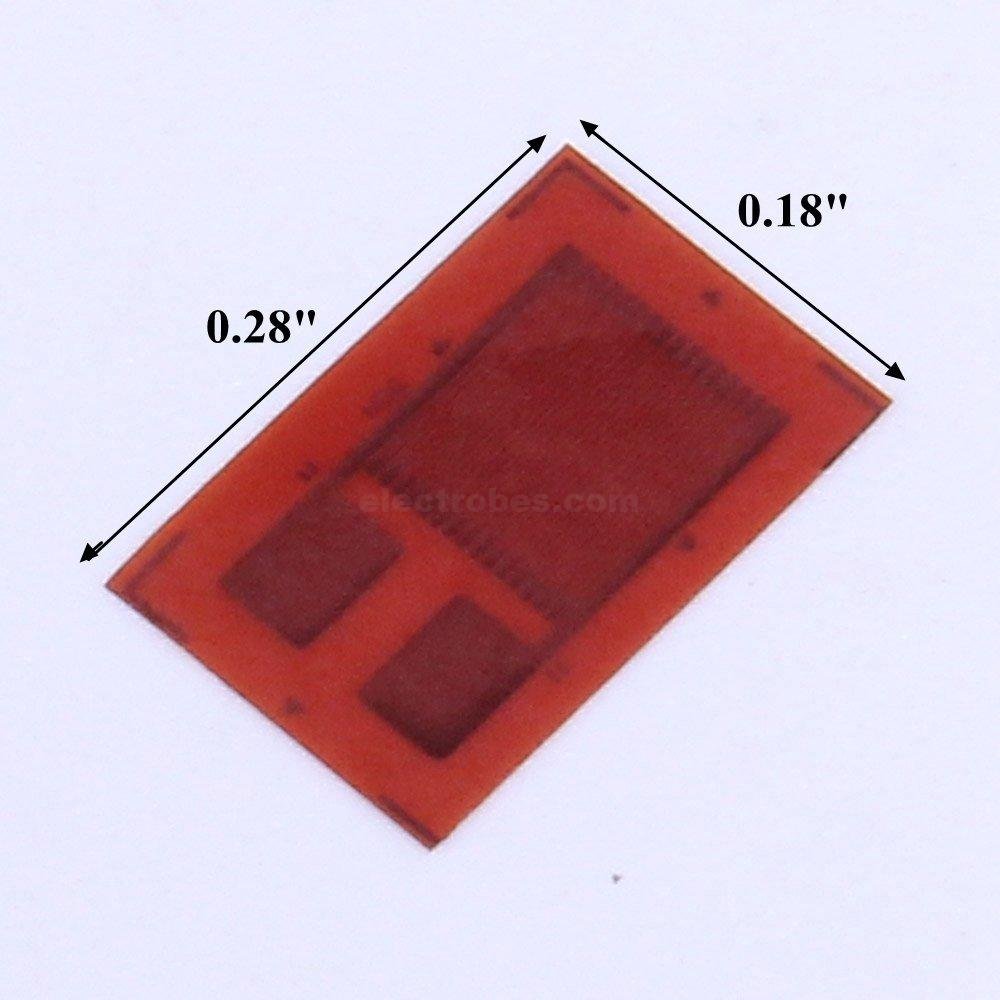

- Gauge Grid(mm) Dimensions(L×M): 3.2 x 3.06
- Gauge Creep Code: M6 to O6
Application:
- Nominal resistance(Ohm): 350
- Tolerance: <±0.1%
- Gauge factor: 2.00~2.20
- Gauge factor resistance: <±1% Strain limit: 2.0% Fatigue life: >10
- Metal foil: constantan alloy
- Working temperature range: -30~+80℃
- Temperature compensation: Aluminium(23)
- Gauge Grid(mm) Dimensions(L×M): 3.2 x 3.06
- Gauge Creep Code: M6 to O6
