Diodes
Showing all 16 resultsSorted by latest
- Diodes, Discrete Electronic Components
1N4742A 12V 1W Zener Diode DO-41
A Zener diode is a special kind of diode which allows current to flow in the forward direction like a regular diode, but also allows it to flow in the reverse direction when the voltage is above a certain value. This is known as the ‘breakdown voltage‘. That means you apply voltage across them, and when a preset voltage is reached, they start conducting.
SKU: 1341 - Diodes, Discrete Electronic Components

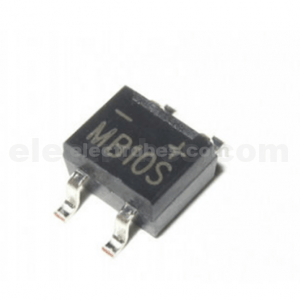

MB10S Single Phase Rectifier Bridge SMD
- Peak Reverse Voltage:1000 V
- Load Currentt: 0.5 A
- Maximum Operating Temperature:+ 150 C
- Length:8.8 mm
- Width:6.5 mm
- Height:3.4 mm
- Mounting Style:SMD/SMT
- Package / Case:DBS
- Packaging:Reel
- Ir – Reverse Current:5 uA
- Minimum Operating Temperature:- 55 C
- Factory Pack Quantity:2500
- Vr – Reverse Voltage: 700 V
SKU: 0572 - Diodes, Discrete Electronic Components

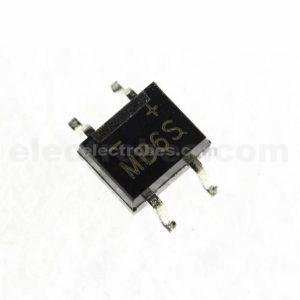

MB6S Single Phase Rectifier Bridge SMD
- Peak Reverse Voltage:600 V
- Load Currentt: 0.5 A
- Maximum Operating Temperature:+ 150 C
- Length:8.8 mm
- Width:6.5 mm
- Height:3.4 mm
- Mounting Style:SMD/SMT
- Package / Case:DBS
- Packaging:Reel
- Ir – Reverse Current:5 uA
- Minimum Operating Temperature:- 55 C
- Factory Pack Quantity:2500
- Vr – Reverse Voltage: 700 V
SKU: 0860 - Diodes, Discrete Electronic Components
27V SMD Zener Diode 5% 300 mW SOD-323
Nominal Zener Voltage 27V Diode Configuration Single Number of Elements per Chip 1 Mounting Type Surface Mount Maximum Power Dissipation 400 mW Package Type SOD-323 Zener Type Voltage Regulator Zener Voltage Tolerance 2% Pin Count 2 Test Current 5mA Maximum Reverse Leakage Current 50nA Length 1.8mm Dimensions 1.8 x 1.35 x 1.05mm Width 1.35mm Maximum Operating Temperature +150 °C Height 1.05mm Typical Voltage Temperature Coefficient - 23.4mV/K
SKU: 0862
