VOLTAGE
Showing all 26 resultsSorted by latest
- Converters, Modules and Breakout Boards

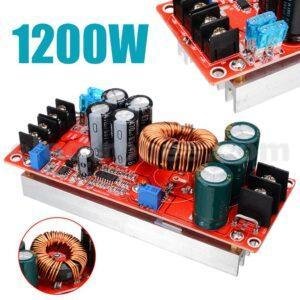

1200W 20A DC Converter Boost Step-up Power Supply Module in 8-60V Out 12-83V with Heat Sink 12V to 24V 48V
Converters, Modules and Breakout Boards1200W 20A DC Converter Boost Step-up Power Supply Module in 8-60V Out 12-83V with Heat Sink 12V to 24V 48V
- Input voltage :10-60V
- Output voltage: 12-83V (adjustable)
- Output Current: 12A
- Input Current: 20A
- The non-isolated step-up power conversion module
- Onboard LED illuminates when the voltage is applied to the module
- Equips Multi-turn Potentiometer.
SKU: 1771 - Converters, Modules and Breakout Boards
LM2596 DC 6V-40V To 5V 3A Double USB Charge DC-DC Step-down Converter Module
-10%
Converters, Modules and Breakout BoardsLM2596 DC 6V-40V To 5V 3A Double USB Charge DC-DC Step-down Converter Module
Dual USB Output LM2596 Buck Converter is a step down module and has a dual 5V output for charging Phone, MP3, MP4, PSP, or powering Arduino, Raspberry Pi, etc. 100% Brand new and high quality! This module has short circuit protection DIY Mobile Power Supply with two 5V output USB ports with 3A output current.
SKU: 1611 - Converters, Modules and Breakout Boards

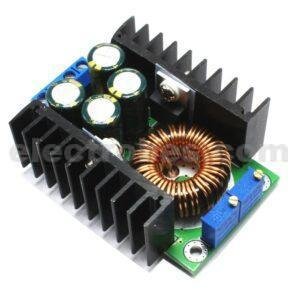

300W XL4016 DC-DC Max 9A Step Down Buck Converter 5-40V To 1.2-35V Adjustable Power Supply Module LED Driver
Converters, Modules and Breakout Boards300W XL4016 DC-DC Max 9A Step Down Buck Converter 5-40V To 1.2-35V Adjustable Power Supply Module LED Driver
This 300W 9A Buck Converter uses two XLSEMI XL4016 voltage regulators to reduce input voltages from 7 – 40 V to adjustable output voltages between 1 and 35 Volts. The large heat sinks enables high output currents of up to 9A max. and a limiting output of 300W. The second trimmer on the board is used to set up the current limit.
SKU: 1576 - Discrete Electronic Components, ICs, Power Optimizer & Circuit Protection
0.5A 6V TO-252 SMD Voltage Regulator 78M06
Discrete Electronic Components, ICs, Power Optimizer & Circuit Protection0.5A 6V TO-252 SMD Voltage Regulator 78M06
Voltage regulators are very common in electronic circuits. They provide a constant output voltage for a varied input voltage. In our case the 78M06 IC is an iconic regulator IC that finds its application in most of the projects to regulate variable voltages to a fixed 6V output. This IC is the TO-252 case of 7806 IC to be used on SMD circuits.
SKU: 0884 - Converters, Modules and Breakout Boards
LM2596 Tripple / Three Variables Buck Adjustable Step Down Power Supply Module DC-DC Converter
Converters, Modules and Breakout BoardsLM2596 Tripple / Three Variables Buck Adjustable Step Down Power Supply Module DC-DC Converter
- Input voltage: 4-35V
- Output Voltage: 1.5-35V (adjustable)
- Output current: rated current 2A, maximum 3A (heat sink required)
- Conversion efficiency: Up to 92% (the higher the voltage, the higher the efficiency)
- Switching Frequency: 150KHz
- Rectifier: Non-Synchronous Rectification
- Module Properties: Non-isolated step-down module (buck)
- Short circuit protection: current limiting
- Operating temperature: Industrial grade (-40 ℃ to +85 ℃) (output power 10W or less)
- Full load temperature rise: 40 ℃
- Load regulation: ± 0.5%
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Output ripple:
- Input 12V Output 5V 3A 60mV (MAX)
- Input 24V Output 12V 3A 120mV (MAX)
SKU: 0721 - Discrete Electronic Components, General ICs, ICs
74LS17 7417 HEX Buffer HD7417 High Voltage Open Collector IC
Discrete Electronic Components, General ICs, ICs74LS17 7417 HEX Buffer HD7417 High Voltage Open Collector IC
- Convert TTL Voltage Levels to MOS Levels
- High Voltage Open Collector
- High Sink-Current Capability Design
- HEX Buffer
- Open-Collector Driver for Indicator Lamps
- Inputs Fully Compatible With Most TTL Circuits
SKU: 0569 - Discrete Electronic Components, ICs, Power Optimizer & Circuit Protection
LM723 Voltage Regulator IC
- Input supply voltage is up to 40v maximum
- Voltage output ranges from 3v to 37v
- Reference voltage is nearly 7v always
- Current from pin Vz is 25mA
- Current from pin Vref is 15mA
- Operating temperature range: -55°C to +150°C
- Line regulation of 0.01%Vout
- Load regulation of 0.03%Vout
- Ripple rejection of 74 dB
SKU: 0548 - Modules and Breakout Boards, Voltage, Current & Power
Keweisi USB Current Voltage Charging Detector Mobile Power Current and Voltmeter Ammeter Voltage USB Charger Tester Double Row
Modules and Breakout Boards, Voltage, Current & PowerKeweisi USB Current Voltage Charging Detector Mobile Power Current and Voltmeter Ammeter Voltage USB Charger Tester Double Row
KEWEISI Dual USB Power Current Voltage Ampere Meter Tester Portable Current 0-3A & Volt 3-20V Detector Reader Multimeter USB Charger Doctor Digital Display Multifunction Capacity Voltmeter Ampere Meter Current Voltmeter Detector Tester in Pakistan
SKU: 0633 - Converters, Modules and Breakout Boards
LM2596 Buck Adjustable Step Down Power Supply Module DC-DC Converter
Converters, Modules and Breakout BoardsLM2596 Buck Adjustable Step Down Power Supply Module DC-DC Converter
LM2596 DC-DC Buck Converter Step Down Module Power Supply is a step-down buck converter switching regulator. LM2596 Buck is capable of driving a 3-A load with excellent line and load regulation and fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.
SKU: 0158 - Discrete Electronic Components, Filter & Amplifiers, ICs
LM741 UA741 Operational Amplifier Op-amp IC
- LM741 has only one op-amp inside, there are some op-amp IC’s having more than one op-amp like LM358, LM148, LM248, LM348
- Provided with short circuit and overload protection.
- Low power consumption.
- Large common mode rejection ratio (CMRR) and differential voltage ranges.
- No external frequency compensation is required.
- Prevent from latch-up when common-mode range is exceeded.
- Minimum, normal and maximum Power Consumption for this IC is ±10v, ±15v and ±22v respectively.
- Operating temperature should be -50 to 125 ˚C.
- Supply current – 1.7 to 2.8mA.
- Soldering pin temperature – PDIP package – 260 ˚C (for 10 seconds – prescribed)
- TO-99 and CDIP – 300 ˚C (for 10 seconds – prescribed)
- Available packages: TO-99, CDIP & PDIP
SKU: 0423 - Discrete Electronic Components, General ICs, ICs
LM339 VOLTAGE COMPARATOR IC
- Operating voltage range: +4.75 to +5.25V
- Recommended operating voltage: +5V
- Maximum supply voltage:7V
- Maximum current allowed to draw through each gate output: 8mA
- TTL outputs
- Low power consumption
- Typical Rise Time: 18ns
- Typical Fall Time: 18ns
- Operating temperature:0°C to 70°C
- Storage Temperature: -65°C to 150°C
SKU: 0422
