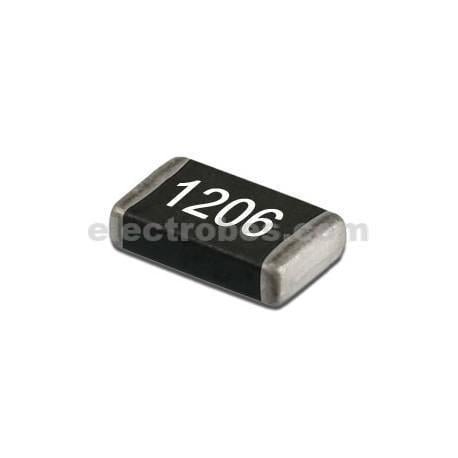

1.5M Ohm 1206 1/4W 0.25W SMD Resistors
- Resistor Type: Thick Film
- Resistance: 1.5M Ohm
- Tolerance (±): 1%
- Operating Temperature Min.: -55 °C
- Operating Temperature Max.: 155 °C
- Power Rating: 125 mW
- Body Length: 2 mm
- Voltage Rating – DC: 150 V
- Temperature Coefficient: 100 ppm/°C
- Termination Type: Wraparound
- Body Height: 0.55 mm
- Body Width: 1.25 mm
- Mounting Type: Surface Mount
- Resistor Case Style: 1206(3216)
- Power (Watts): 0.25W , 1/4W
Availability:
Only 990 left in stock
₨ 2
Only 990 left in stock
These are 1206 size SMD Resistor with 1% tolerance. All thick film types of chip resistors have a rectangular ceramic body. The resistive element is a metal glaze film. The chips have been trimmed to the required ohmic resistance by cutting one or more grooves in the resistive layer. This process is completely computer controlled and yields a high reliability. The terminations are attached using either a silver dipping method or by applying nickel terminations, which are covered with a protective epoxy coat, finally the two external terminations (matte tin on Ni-barrier) are added.
Features:
- Small size and lightweight
- High reliability
- Metal glaze thick film resistive element and three layers of electrodes
- Compatible with placement machines

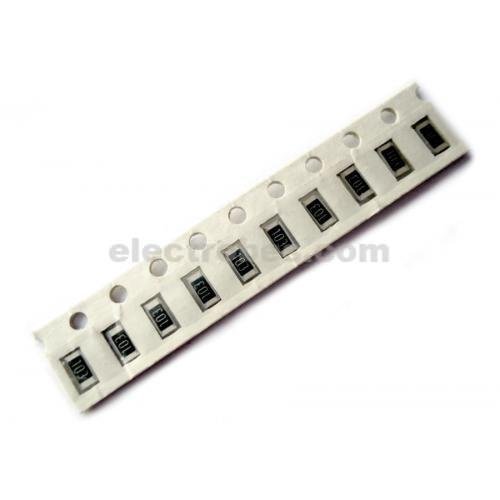

- Taping packaging available
- Suitable for both reflow and flow soldering
- Resistor Type: Thick Film
- Resistance: 1.5M Ohm
- Tolerance (±): 5%
- Operating Temperature Min.: -55 °C
- Operating Temperature Max.: 155 °C
- Power Rating: 125 mW
- Body Length: 2 mm
- Voltage Rating – DC: 150 V
- Temperature Coefficient: 100 ppm/°C
- Termination Type: Wraparound
- Body Height: 0.55 mm
- Body Width: 1.25 mm
- Mounting Type: Surface Mount
- Package / Case: 1210 (3225 Metric)
- Power (Watts): 0.5W, 1/2W
- Features: Moisture Resistant
- Size / Dimension: 0.122″ L x 0.102″ W (3.10mm x 2.60mm)
- Height – Seated (Max): 0.024″ (0.60mm)
