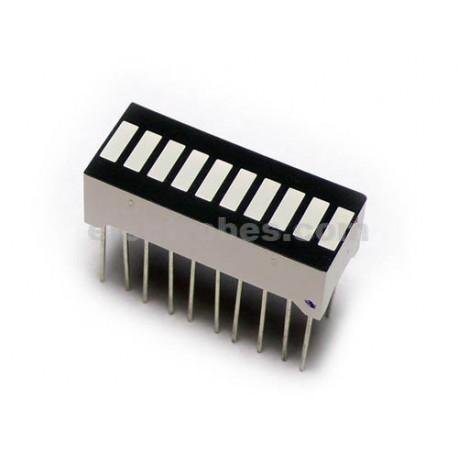

10 Segment LED Bar Graph Display Indicator
- 10 Separately Controlled LED’s
- High Brightness
- High Intensity Green Output
- Ideal for Audio and Meter Displays
- Economically Priced
- Easy to Mount
- RoHS Compliant
In stock
₨ 40
In stock
10 Segment LED Bar Graph Display Indicator – Red
Features:
- Display
- LED Size: 2 x 5 mm
- Material: GaAlAs
- Emitted Color: Red
- Peak Wavelength: 660 nm
- Absolute Maximum Ratings
- Power Dissipation (Pd): 65 * 10 mw
- Forward Current (If): 25 mA
- Peak Forward Current (Ifp): 250 mA
- Electro-Optical Data (@ 10 mA)
- Forward Voltage – Typical: 1.85 V
- Forward Voltage – Maximum: 2.2 V
- Luminous Intensity Typical: 120 Mcd
