Modules and Breakout Boards, Wireless Communication

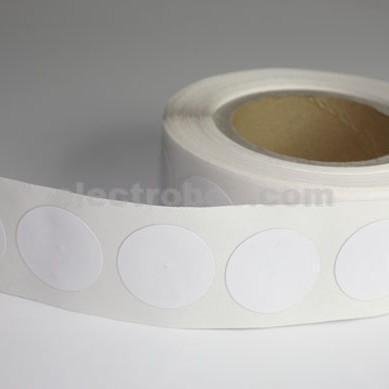

13.56MHz RFID Tag NFC Tags Sticker Universal Label Ntag213
Compare Availability:
In stock
₨ 70
In stock
Options:
- Chip: Ntag213
- Net Capacity: 144 bytes
- Protocol: ISO14443A
- Operating frequency: 13.56 MHz
- Reading and writing distance: from 1 to 5 cm
- Read and write time: from 1 to 2 ms
- Operating temperature: from -20 to 55 degrees, humidity 90%
- Erase time:> 100,000 times
- Data storage:> 10 years
- Reading time: 100,000 times
- Diameter: 25mm
- Packing materials: PE self-adhesive + coated paper
Compatibility:
- 1) Support 13.56 MHz RFID and near-proximity IC-reader / writer connection, for example: Acr122u rchid recording splitter
- 2) Support for smartphones with NFC function.
- MIFARE 1K IC S50 FM1108
- Operating Frequency: 13.56 MHz. (HF-High Frequency).
- Capacity: 1 Kbyte EEPROM (768 free bytes availability)
- Common Usage: Ticketing, Contactless smart card excellent security
- Tested Read Range: 0-5 cm
- Multi-Detection: Yes
- Size: Diameter 25mm
