Availability:
In stock
₨ 5
In stock

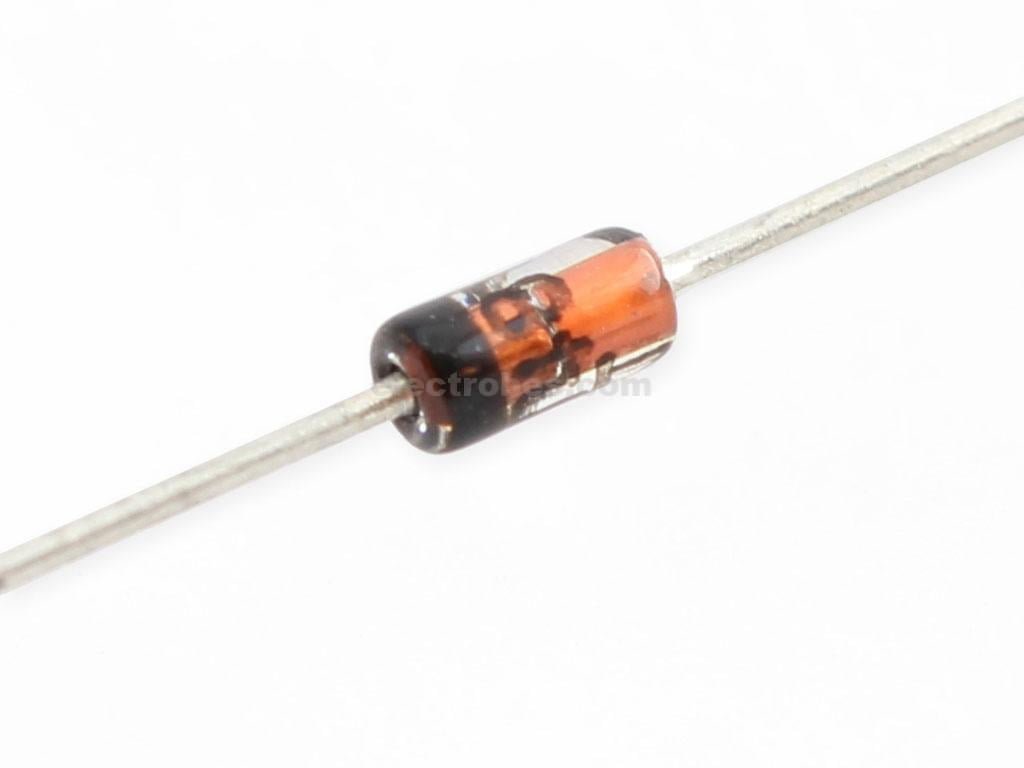

1N4729A 3.3V/3.6V 1W ZENER Diode
Applications of Diode:
- Used in Voltage protection circuits
- Can be used as low current voltage regulator
- Input voltage protection for Microcontrollers or other ICs
- Voltage stabilizing circuits
Features:
- Silicon Planar Power Zener Diodes
- Standard Zener voltage tolerance is ± 5% with a “B” suffix. Other tolerances are available upon request.
Mechanical Data:
- Case: DO-41 Glass Case
- Weight: approx. 0.13 g
Pin configuration:
| Pin No. | Pin Name | Description |
| 1 | Anode | Current always Enters through Anode |
| 2 | Cathode | Current always Exits through Cathode |
Related Documents:
- Type of diode
Zener Power dissipation1W Zener voltage3.6V CaseDO41 MountingTHT Tolerance±5% Semiconductor structuresingle diode Leakage current100µA Max. forward voltage1.2V
