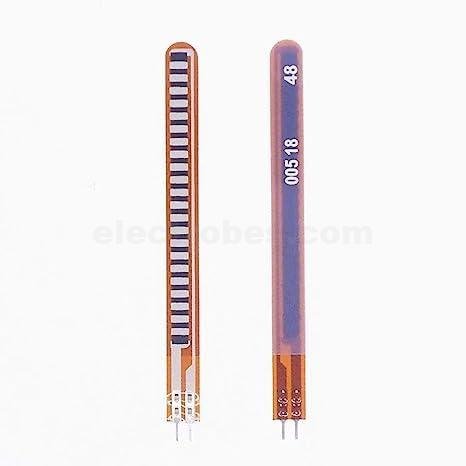

Flex Bend Sensor 2.2 Inch Flex Pressure Sensor for Robot Hand Electronic Gloves Resistive Flex Sensor

A simple flex sensor 2.2″ in length. As the sensor is flexed, the resistance across the sensor increases.

The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend).

Connector is 0.1″ spaced and bread board friendly.

The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend).

Attention: Bending direction: the side with words is the inner side during bending. Avoid bending the end pin part (i.e. non-bending detection part) when using, otherwise it may cause damage.

Technical specifications

• Resistance in straight state: 25K ohms
• Resistance value tolerance: ± 30%
• Bending resistance change: 60K~110K ohms
• Nominal power: 0.5 watts
• Peak power: 1 watt
• Bending life:>1 million times
• Operating temperature: -35°C~+80°C

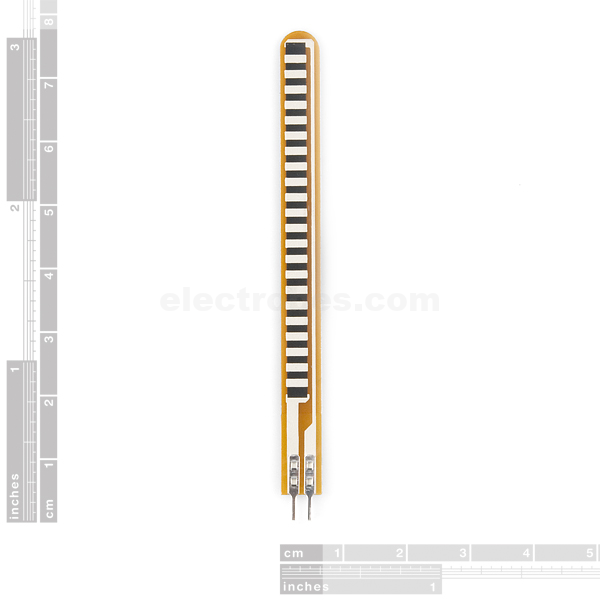

• Length x width: 73.66×6.35mm
• Interface Type: 2-pin metal pins (0.1″ spacing)

Package Includes:

1 x 2.2 inch flex sensor
