22.5W QC4.0 PD3.0 Power Bank Fast Charging Module Type C Port Dual USB with NTC

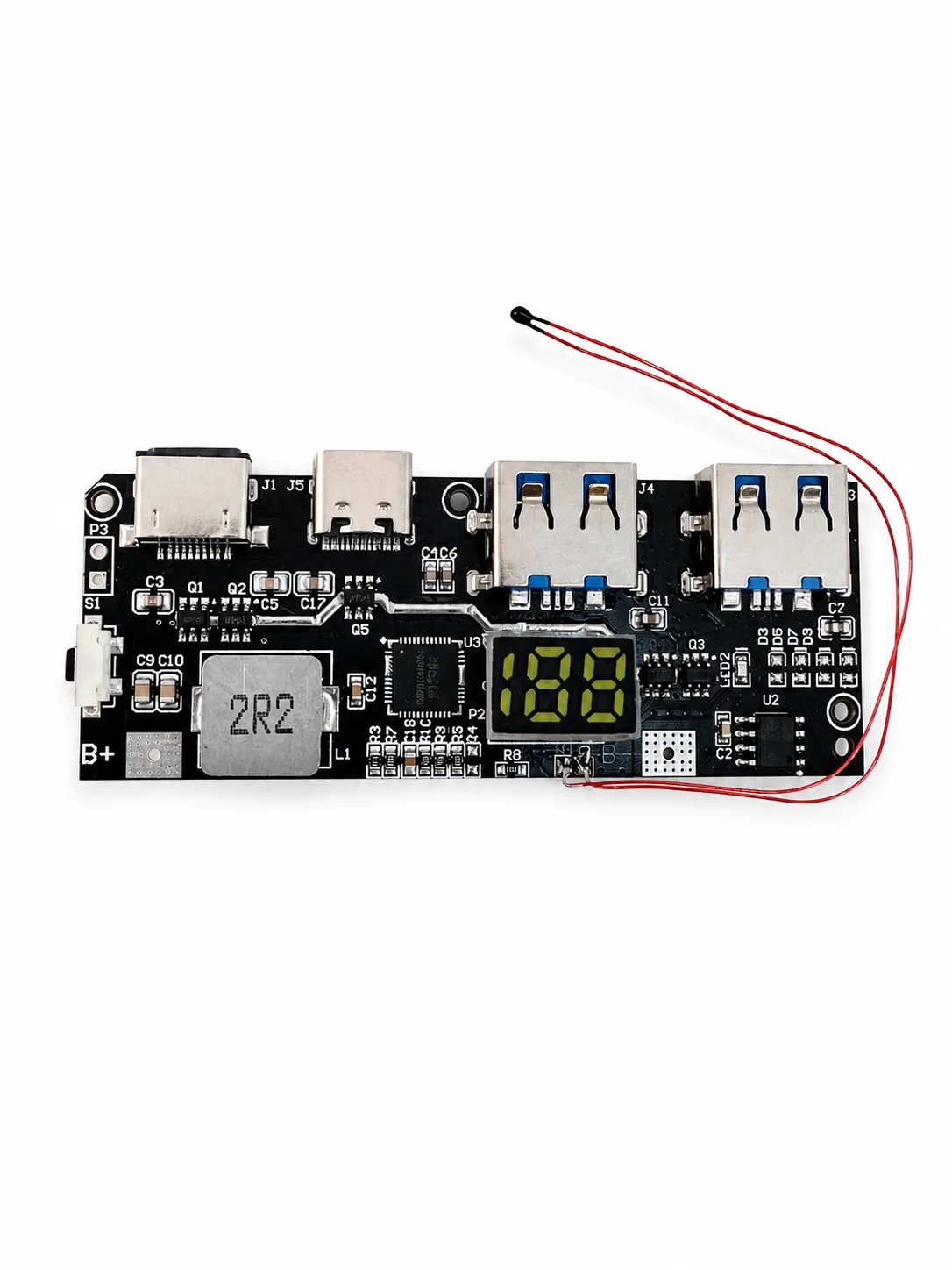

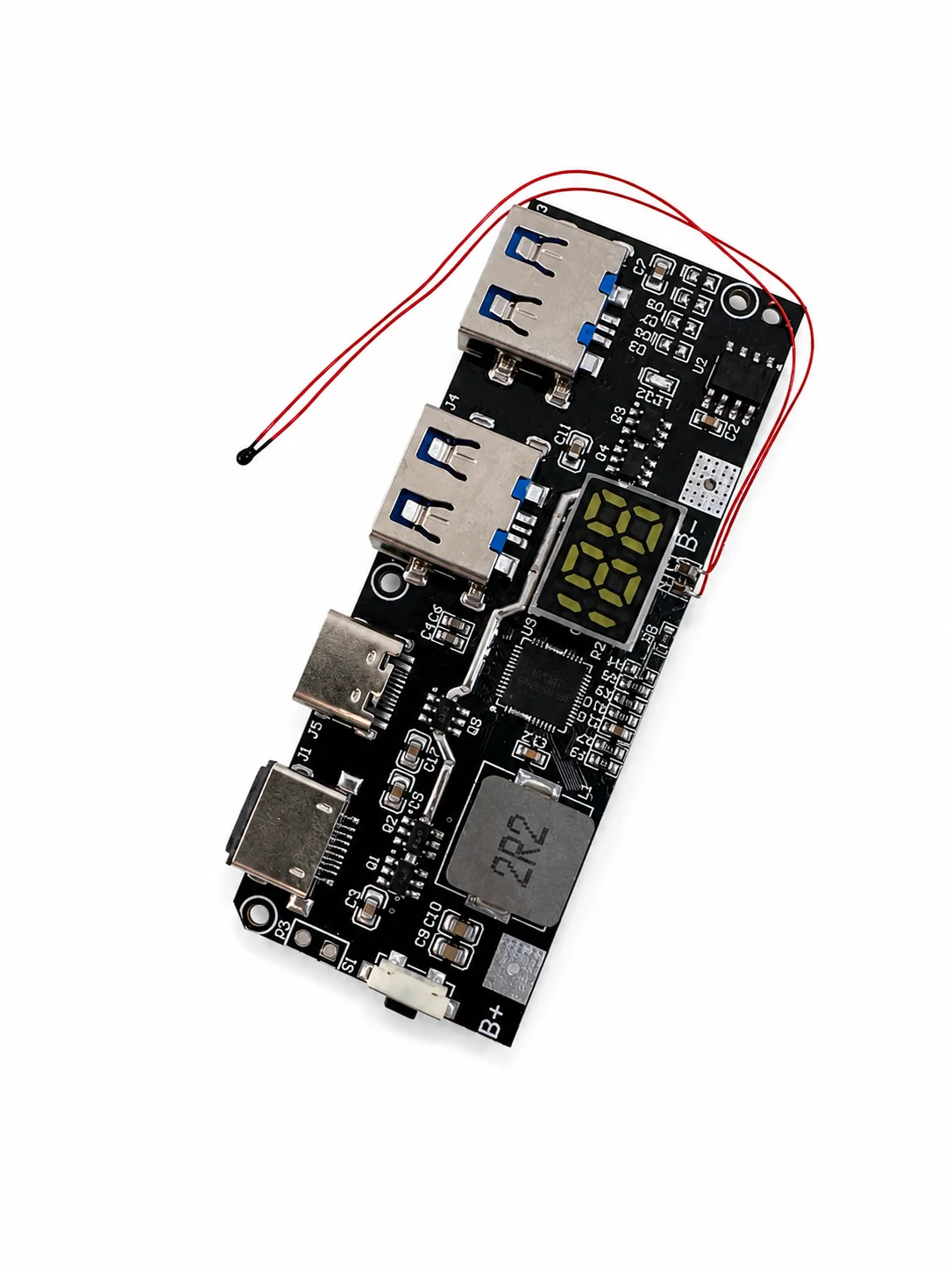

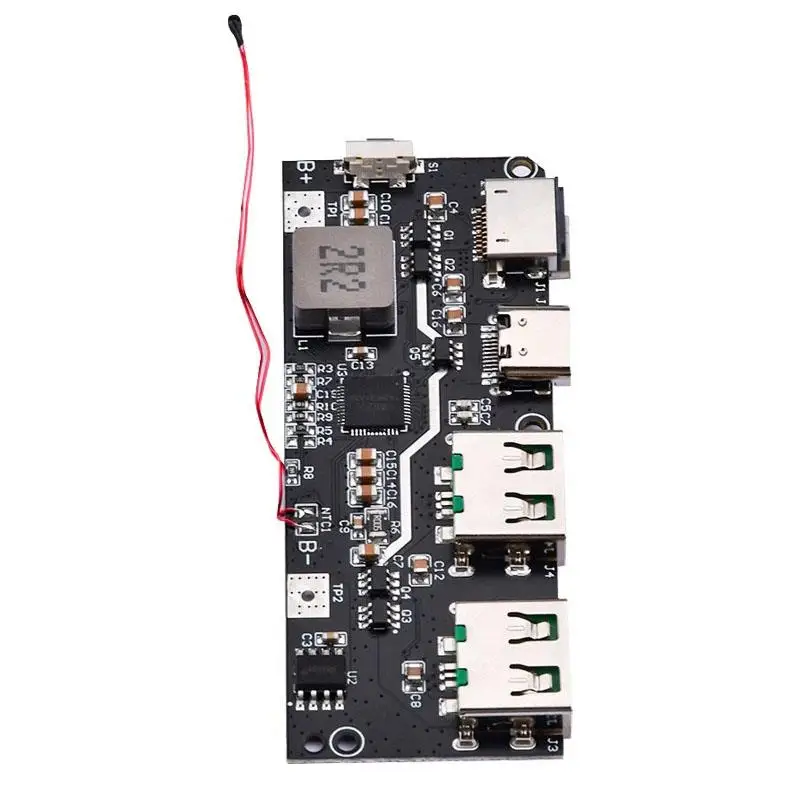

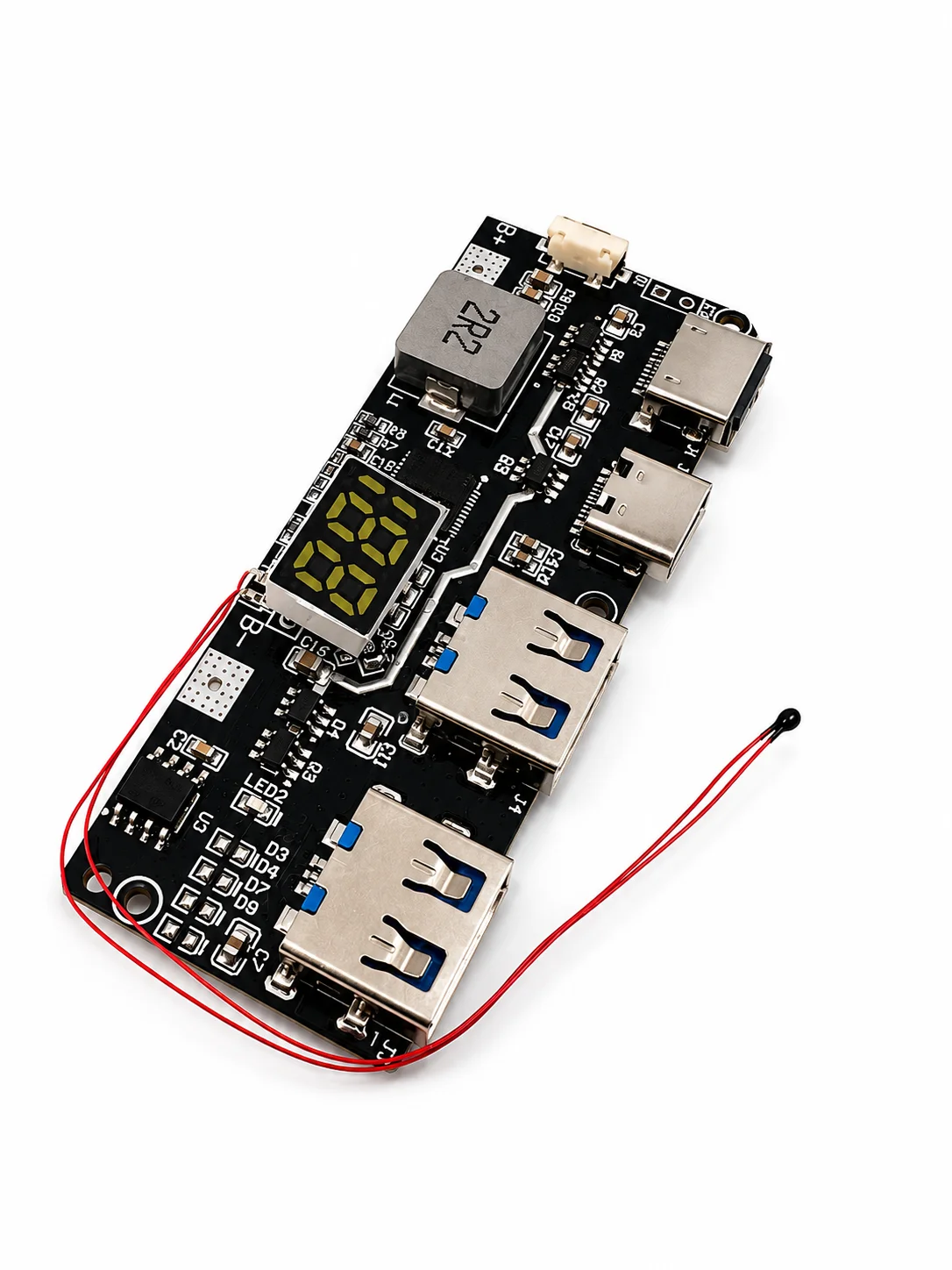

The SW6206 / SW6208 22.5W Power Bank Module is a highly integrated, bidirectional fast-charging circuit board designed for DIY power banks and multi-port charging stations. It relies on the Ismartware SW6208 power management IC to deliver high efficiency in a very small footprint
In stock
₨ 950
In stock
SW6206 SW6208 22.5W QC4.0 PD3.0 Power Bank Fast Charging Module Type C Port Dual USB with NTC Temperature Protection DIY Mobile Power Bank
Product Description:
The QC4.0 / PD3.0 22.5W Fast Charging Module (frequently driven by the SW6206 or SW6208 main control chips) is a highly integrated, multi-protocol power management circuit board designed for building DIY power banks. It supports bidirectional quick charging, delivering up to 22.5W of power to rapidly charge compatible modern smartphones.
Switching Charge
- High current up to 5A, high efficiency up to 95%
- Supports 4.2V/4.35V/4.4V/4.5V battery types
- Supports JEITA specification
- Supports temperature loop control
Synchronous Boost
- Output power up to 22.5W with 95% efficiency
- Automatic load detection/light load detection
- Support wireless charging mode
- Support low current mode
Output fast charging protocol
- Support PPS/PD3.0/PD2.0/QC4+/QC4/QC3.0/QC2.0/AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC
Input Fast Charging Protocol
- Support PD3.0/PD2.0/AFC/FCP/SCP/PE1.1
Type-C Interface
- Built-in USB Type-C interface logic
- Support Try.SRC function
BC1.2 Module
- Support BC1.2 DCP mode
- Support Apple/Samsung mode
Power metering and display
- Built-in 12bit ADC
- Built-in Coulomb meter for accurate power
Protection mechanism
- Input over-voltage protection
- Output overcurrent/short circuit protection
- Charge timeout/over-voltage protection
- Temperature protection
Applications
- DIY power banks for smartphones, tablets, and USB devices
- Portable charging stations for travel and emergencies
- Solar energy storage systems with USB output
- Fast-charging circuits for IoT and embedded systems
- Battery backup systems for USB-powered gadgets
Package Includes:
1 x 22.5W QC4.0 PD3.0 Power Bank Fast Charging Module
- Max Output Power: 22.5W
- Charging Protocols: PD3.0/PD2.0, QC4+/QC4/QC3.0/QC2.0, PPS, FCP, SCP, AFC, SFCP, VOOC, PE2.0/PE1.1
- Input Protocols: PD3.0/PD2.0, FCP, AFC, SCP, PE1.1
- Switching Charger: Up to 5A current, efficiency up to 96%
- Synchronous Boost: Efficiency up to 95%
- Battery Compatibility: 4.2V/4.35V/4.4V/4.5V Lithium batteries (e.g., 18650, Li-poly)
- Ports: Supports A+A+B+C+L (Typically: 2x USB-A, 1x USB-C, 1x Micro USB, 1x Lightning)
- Features: Integrated 12-bit ADC for power metering, LED digital display support, auto-load detection, and small current charging mode
- Protection: Output over-current, short circuit, charger over-voltage, and over-temperature protection
- Battery Management: Supports JEITA specification and battery temperature loop control
