3.5mm Audio Jack Female Connector Plug Socket
- Connector plug
- Connector type Jack 3.5mm
- Connector type male
- Spatial orientation straight
- Mechanical mounting for cable
- Electrical mounting soldering
- Contact plating nickel plated
In stock
₨ 30
In stock

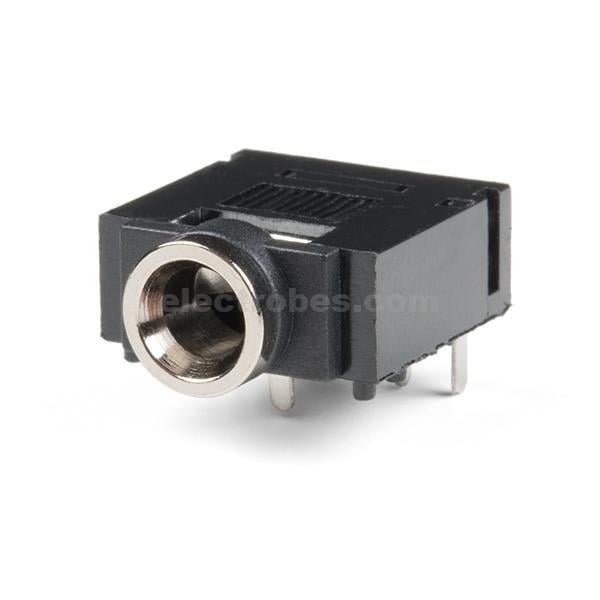

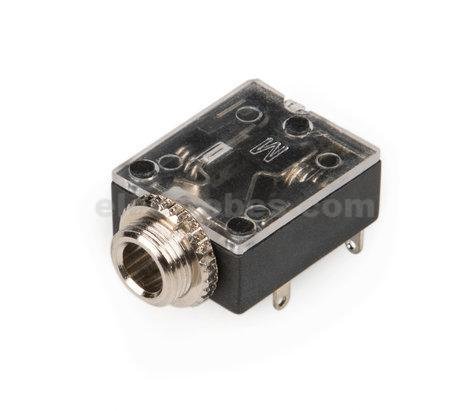

3.5mm Audio Jack Female Connector Plug Socket for Aux Cable and Male Audio Plug
This is a simple 3.5mm TRS stereo audio jack with a screw-on plastic shroud. These are great for projects that plug into headphone jacks. Stereo plugs can also be used for carrying serial com connections!
The outer shell unscrews to reveal solder terminals on the inside of the plug. Solder on your wires and crimp the strain relief to make a finished, professional-looking cable.
- Gender: Female
- Type : 3.5mm Socket

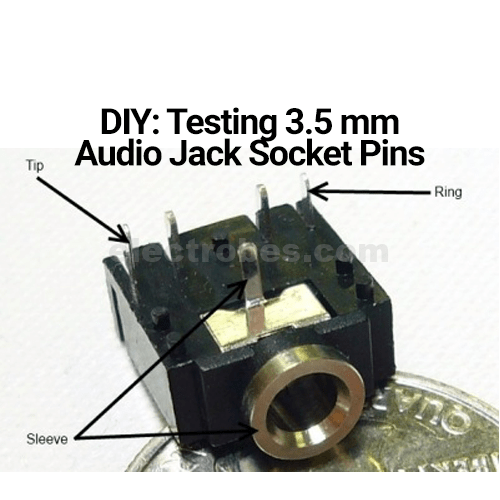

- Pin : 5 Pins
- Color : Black
- Material : Metal, Plastic & Metal
- Contact Resistance: =0.03O ?
- Insulation Resistance: =100MO
- Withstand Voltage: AC500V(50Hz)/min
- Temperature Range: -40~ 55?
- Rated Load: DC 30V 0.5A
- Insertion and Extraction Force: 3~20N
- 3.5mm SMT phone jack used for mobile phone,MP3/MP4 player, other electronical equipment.
