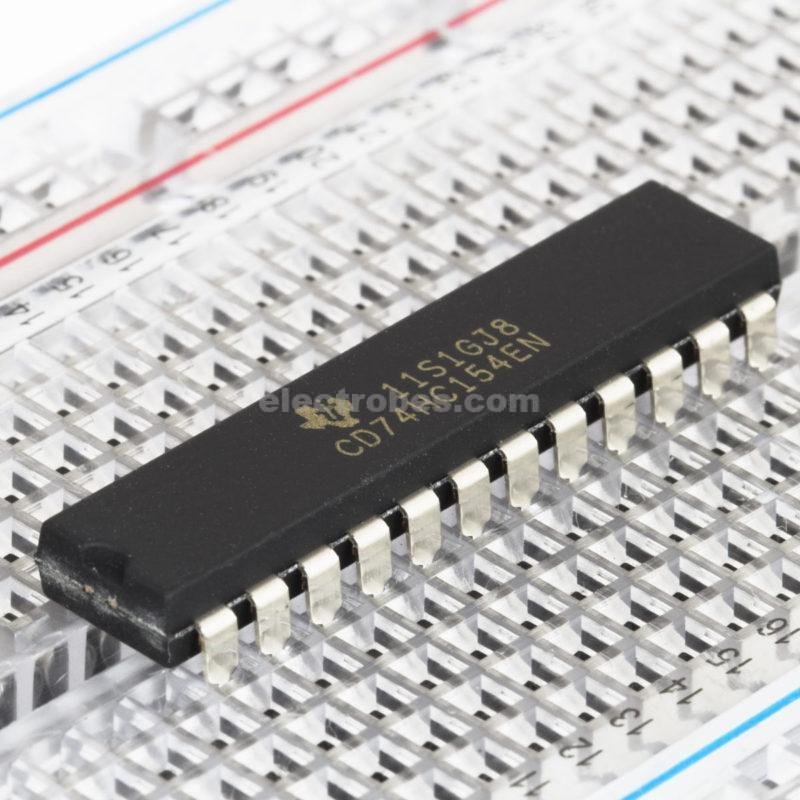

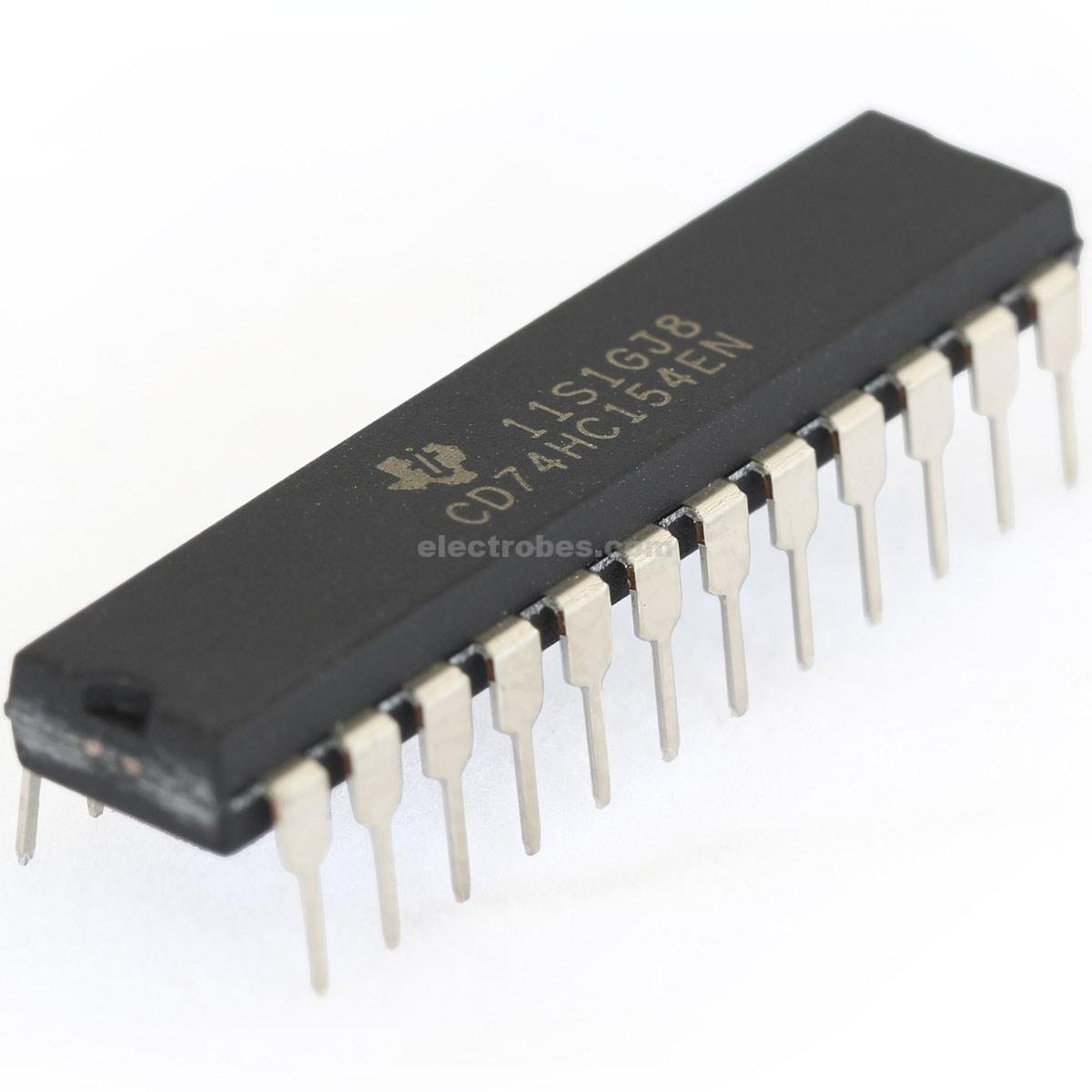

4 to 16 line Decoder / Demultiplexer 74HC154
CompareOut of stock
₨ 250
Out of stock
The 74HC154 is a 4- to 16-line decoder/demultiplexer with two enable inputs, E1 and E2.

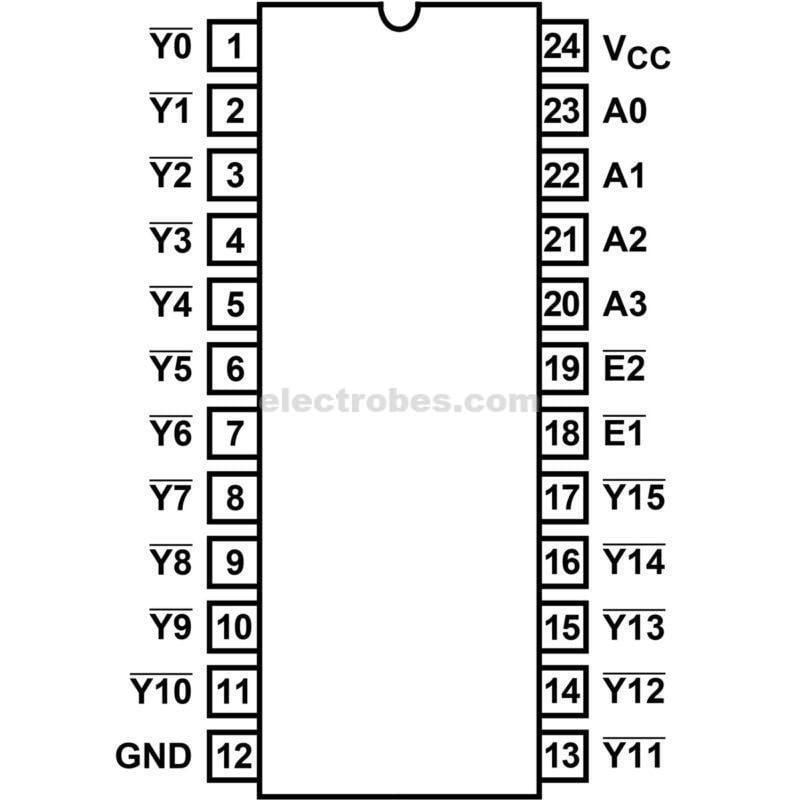

A High on either enable input forces the output into the High state. The demultiplexing function is performed by using the four input lines, A0 to A3, to select the output lines Y0 to Y15, and using one enable as the data input while holding the other enable low.
• Logic Type: decoder / demultiplexer
• No. output channels: 16
• Supply Voltage Range: 2V to 6V
• Package Type: DIP
• Pin number: 24
• Operating temperature range: -55 ° C to +125 ° C
• SVHC: No SVHC
• Device label: 74
• Device Marking: MM74HC154N
• Package Type: DIP
• Operating Temperature Min: -55 ° C
• highest working temperature: 125 ° C
• Supply Voltage: 6V
• Supply voltage: 6V
• The minimum supply voltage: 2V
• chip label: 74HC154
• Surface Mount Devices: through-hole mounting
• Output Current: 5.2mA
• logic chip function: Logic 4-to-16 Line Decoder / Demultiplexer
• logic chip series: HC
