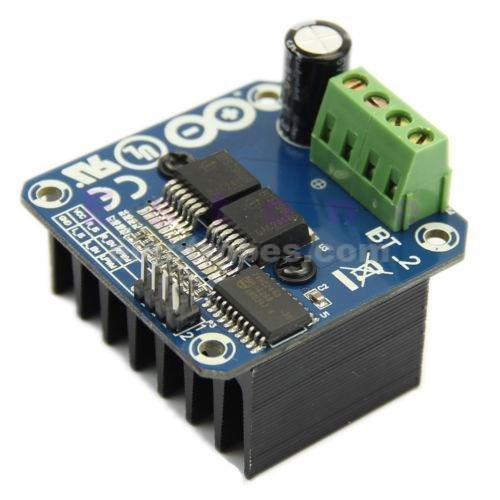

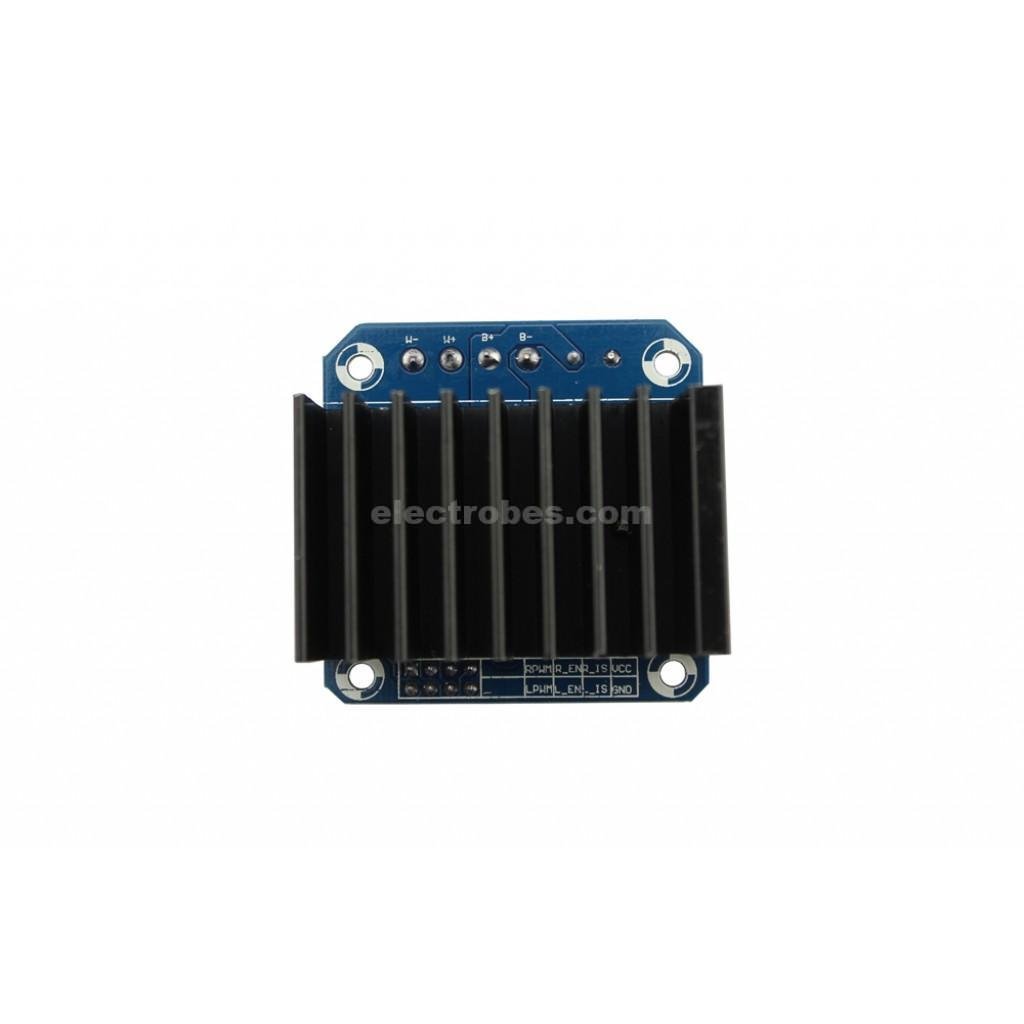

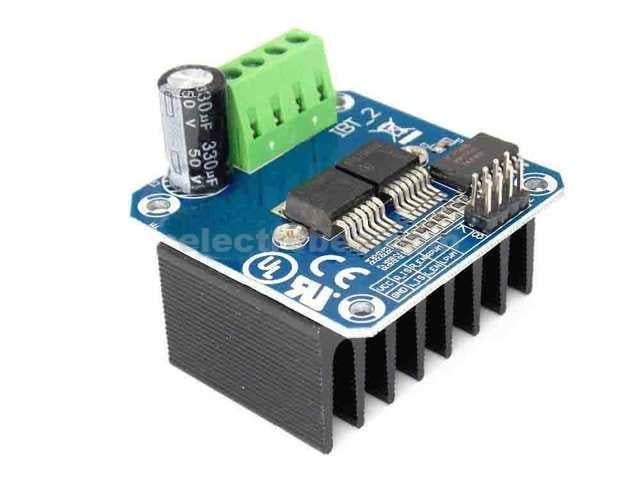

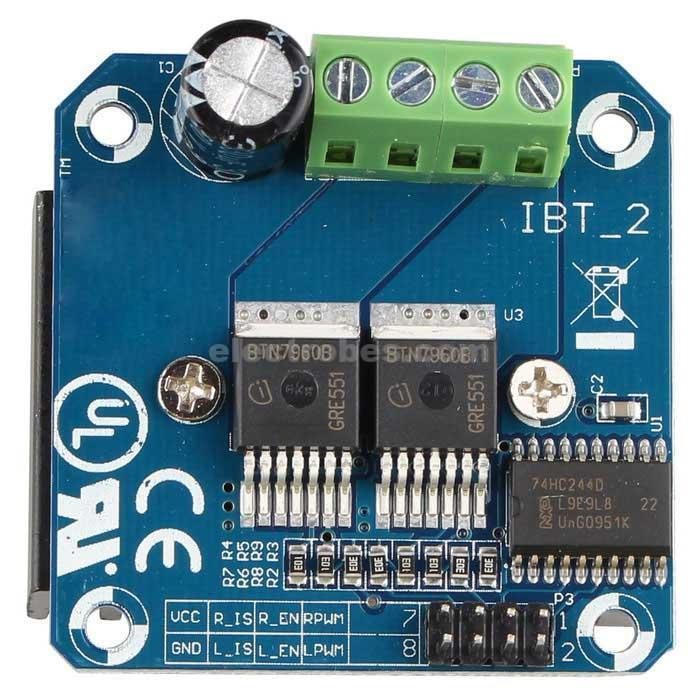

IBT-2 43A H-bridge Double BTS7960 High Power Motor Driver Module
The drive uses an H-bridge driver module that composed by Infineon power drive chip BTS7960, with overheating and over-current protection. Double BTS7960 H-bridge driver circuit, with strong drive and braking effect, use 74HC244 chip effectively isolate the microcontroller and the motor drive! High Current up to 43A!
Availability:
In stock
₨ 1,200
In stock
IBT-2 43A H-bridge Double BTS7960 High power Motor Driver Module
The drive uses an H-bridge driver module that composed by Infineon power drive chip BTS7960, with overheating and over-current protection. Double BTS7960 H-bridge driver circuit, with strong drive and braking effect, use 74HC244 chip effectively isolate the microcontroller and the motor drive! High Current up to 43A!
APPLICATIONS:
- Current diagnostic
- Slope adjustment
- Dead Time generation
- Over-temperature, over-voltage, under-voltage, over-current protection
- Short circuit protection
PACKAGE LIST:
1 x BTS7960 IBT-2 43A motor driver module

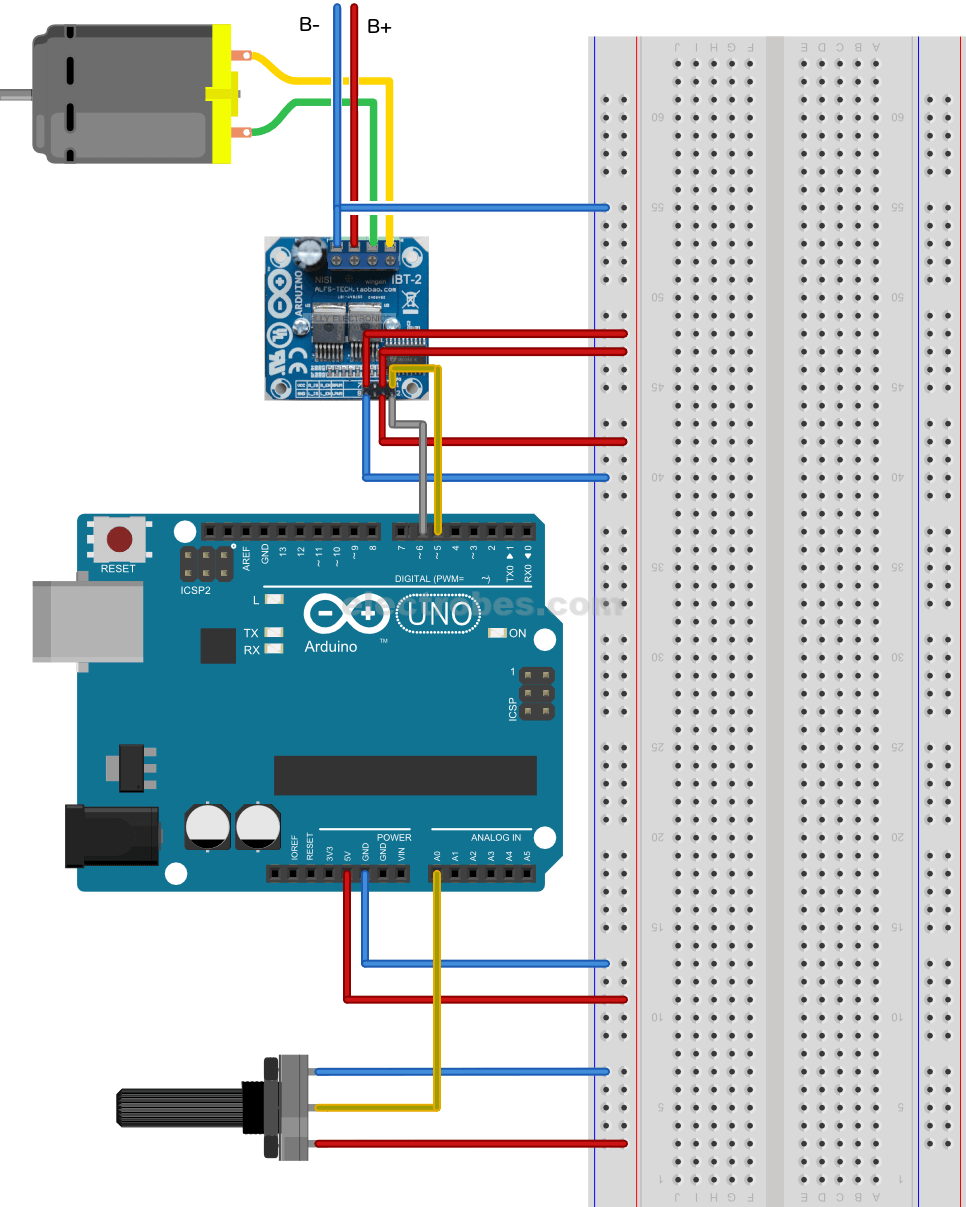

How to connect with Arduino
- Input voltage: 6V-27V
- Model: IBT-2
- Maximum current: 43A
- Input level: 3.3-5V
- Control mode: PWM or level
- Duty cycle: 0-100%
